Ni scxi-1162hv module high voltage universal switch is designed for use with ni switch or scxi-1127/1128 switches. It provides 32 independent single-pole single-taser relays (SPST) for switching high voltage signals.
– number of channels: 32
– voltage range: up to 250 v
– current range: up to 1 a
Switch: 30 w
Ni scxi-1326 is a high-performance analog output module providing eight output voltage channels.
– number of channels: 8
– output voltage range: 10 v
– resolution: 16 bit
– update speed: 200 cop/s
Ni scxi-1600 is a high-performance controller designed to work with modular signal conditioning systems scxi. It provides a flexible and reliable solution for data collection and application management.
– number of slots: 16
– communication interface: usb
– power requirements: 5 v dc, 500 ma
– dimensions: 213 mm x 131 mm x 44 mm
– weight: 0.54 kg
– relay type: DPST (bipolar, single)
– number of relays: 64
– maximum switching voltage: 200 v dc, 140 v
– maximum switching current: 2 a
– maximum power: 60 w/channel
– input resistance: 65 ohms

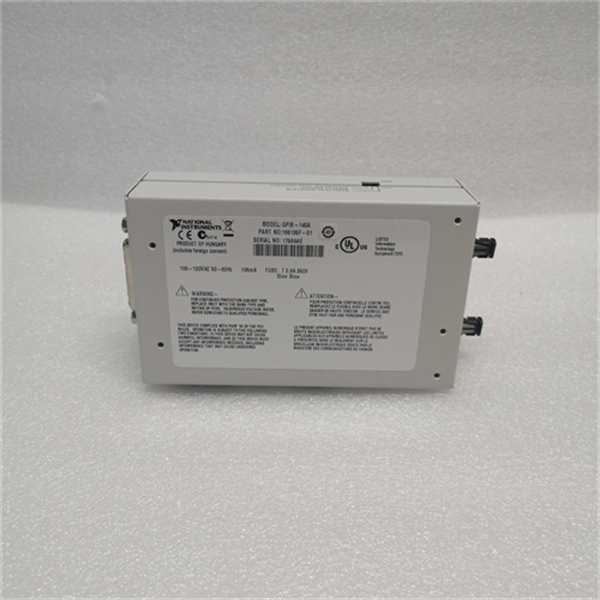

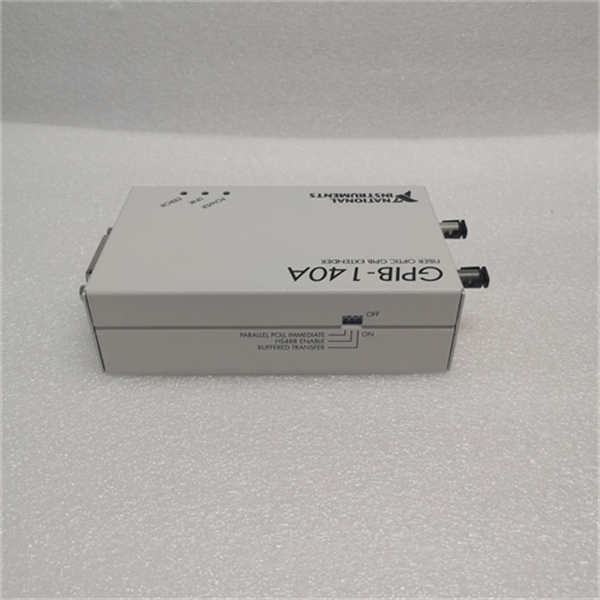

Gpib-140a is a compact and easy-to-use interface that connects to the computer via a standard parallel port. Its expanded capabilities and flexibility make it an ideal solution for a wide range of applications, from research and development to production and production testing.
– compatibility ieee 488.1 and ieee 488.2
– transmission speed up to 1.5 MB/s
– plug-and-play operations with automatic configuration and detection
– standard db25 connector
Ni scxi-1001 is a compact, rigid data collection module designed for use in various applications. It provides high-quality analog and digital signal conditioning, making it the ideal choice for measuring a wide range of signals. The module has a small formative factor and can be easily integrated into different test and measurement systems.
– analog input channels: 8
– analog digital converter resolution: 12 bit
– maximum sampling speed: 50 cop/s
– digital I/o channels: 8
– input voltage range: + 10 v
Input resistance: 1 m
The scxi-1100 module consists of 8 differential analog input channels with a 16-bit resolution and a maximum sampling rate of 100 cop/s per channel. It also includes a built-in signal conditioning scheme that allows you to easily configure and scale signals.
– number of channels: 8
– type of entrance: differential
– resolution: 16 bit
– maximum sampling speed: 100 cop/s per channel
– input range: + 10 v, + 1 v, + 100 mv, or + 10 mv
– input resistance: 1 m parallel to 10 pf
Ni pxi-7344 is a compact and rigid module providing advanced traffic control capabilities. It supports both stepper and motors servo as well as various feedback devices such as encoders and resolvers. The module consists of four independent axes, each with separate traffic control circuits and power amplifiers.
– number of axles: 4
– stepper engine resolution: up to 50,000 steps/rev. / min/min
– servo motor resolution: up to 16,384 units/rev
– maximum output power of the stepper engine: 4 a per axle
– maximum output current of servo motor: 4 a per axle
– maximum output voltage: 80 v dc
The cfp-ai-111 module is a compact and lightweight module that can be easily installed and used in various applications. It is designed to enhance machine learning opportunities for a wide range of devices.
– dimensions: 50 mm x 50 mm x 10 mm
– weight: 4g
– power consumption: 1.5 w
– operating temperature: -40 c to +85 c
Scxi-1104c is designed for use in various applications, including data collection, process management and research. It includes differential and single-circuit signal conditioning, as well as programmable augmentation and filtering capabilities.
– analog inputs: 4
– resolution: 16 bit
– maximum sampling speed: 100 cop/s per channel
– input range: + 10 v, + 5 v, + 2 v, + 1 v, + 0.5 v, + 0.2 v, + 0.1 v, + 0.05 v, + 0.02 v, + 0.01 v
Input resistance: 10 mm
– signal conditioning: differential and single-circuit
Programmable growth: 1, 10, 100, 1000
– programmable filters: low-pass, highpass, bandpass, notch
Analog Input: The module provides 4 channels of analog input with 12-bit resolution and a sampling speed of up to 10 MS/s per channel.
Analog Output: It offers 2 channels of analog output with 12-bit resolution and a maximum output rate of 4 MS/s for a single channel and 2.5 MS/s for dual channels.
Digital I/O: The module includes 8 lines of digital I/O with a timing rate of 10 MS/s.
Counters/Timers: It features 2 counters/timers with 24-bit resolution.
