– analog inputs: 8 channels
– analog output: 2 channels
– digital input/output: 8 channels
– maximum sampling rate: 2 ms/s
– resolution: 16 bit
– input voltage range: + 10v
– output voltage range: 10v
– operating temperature range: 0-55 degrees
– switching power: 64 SPDT relays
– switching voltage: 30 v dc /20 v
– current switching: 1 a
– contact resistance: < 0.1 ohm
– operating temperature: from 0 to 55 degrees
– dimensions: 3u, 19 “anchorage
A universal modular data collection system designed for a wide range of applications. It provides high performance signal conditioning and multiplexing, allowing accurate and reliable measurements.
– input channels: 8
– canal insulation: 500 VRMS
– voltage range: 10 v
– discrete rate: up to 1 ms/s per channel
– resolution: 16 bit

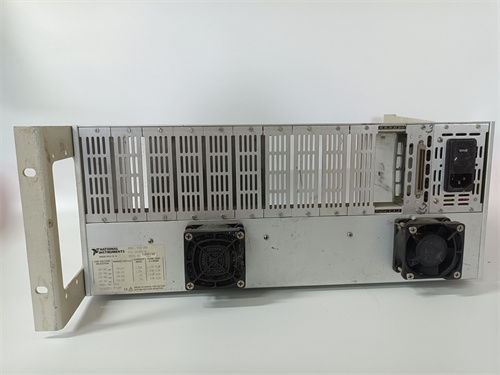

Ni scxi-1001 module is a high-performance signal conditioning module that provides reliable and accurate data collection for a wide range of applications.
– input channels: 4
– maximum sampling rate: 1 ms/s
– resolution: 16 bit
– input range: 10 v
– connector type: BNC
– power requirements: 5 v dc
– dimensions: 9.5 cm x 7.6 cm x 2.7 cm
– weight: 140 g
Ni scxi-1100 provides a flexible and modular solution for various signal conditioning needs. It is compatible with a wide range of sensors and converters, making it suitable for various applications.
– input channels: 8 differential, 16 single-circuit
– input range: + 10v, + 5v, + 2v, + 1v
– sampling rate: up to 100 cop/s
– resolution: 16 bit
– connector type: screw terminals

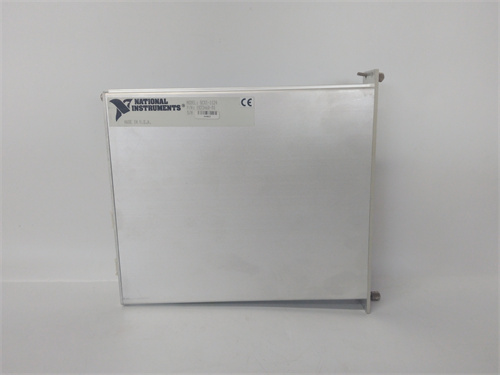

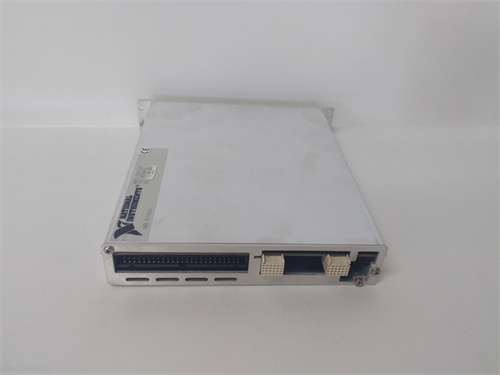

Ni scxi-1124 offers 64 double wire channels with low binding and high insulation. It can be used for routing signals in automated test systems, data collection and sensor switching applications. The module is compatible with a wide range of signals, including analog, digital and thermocouples.
– number of channels: 64
– channel type: double wire
– switching type: no latch
– maximum voltage: 250 VRMS, 350 VDC
– maximum current rating: 2 a

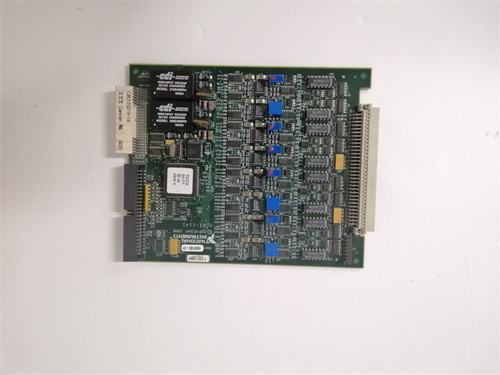

The SCXI-1141 is a low-pass filter input module that belongs to the NI SCXI module family. According to the search results, some information indicates that it is an 8-channel filter module, but other information indicates that it is a 4-channel filter module.
Different sources give different weight information. One source puts its weight at 0.5 kg, while another puts it at 1.27 kg.

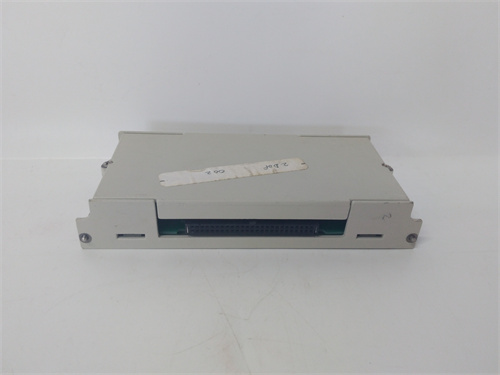

Ni scxi-1302 is designed to provide accurate and precise measurement capabilities of different types of sensors. It offers high-speed, simultaneous sampling to obtain rapid dynamic signals. Modular design allows easy integration into existing systems.
– analog input channels: 16
– analog output channels: 8
– digital I/o channels: 32
– voltage range: 10v
– sampling rate: up to 1 ms/s
– resolution: 16 bit
Ni scxi-1304 is a 32-channel, 5a, universal, solid relay (SSR) module for ac or dc load switching.
– channels: 32
– switching type: solid relay (SSR)
– maximum switching voltage: 60 v dc /30 v ac
– maximum switching current: 5 a
– insulation voltage: 250 VRMS
High-performance signal conditioning module designed for use with scxi chassis. It provides reliable and accurate signal conditioning for a wide range of applications.
– input channels: 32
– input data types: differential/single-circuit
– input voltage range: + 10v
– capacity: 1 MHZ (-3 db)
– insulation: 500 VRMS
The ni scxi-1326 touch screen is a user-friendly input device designed for seamless integration with national scxi modular data collection systems. It provides intuitive touch control for setting up and interacting with scxi modules.
– touch screen: capacitive
– screen size: 5 inches
– resolution: 800 x 480 pixels
– communication interface: usb
– compatible with scxi modules
– analog input channels: 8 single-circuit or 4 differential
– analog output channels: 2
– digital I/o channels: 8
– maximum sampling rate: 1 ms/s
– resolution: 16 bit
– input range: 10 v
– output range: 10 v
– connector type: 68-pin SCSI
