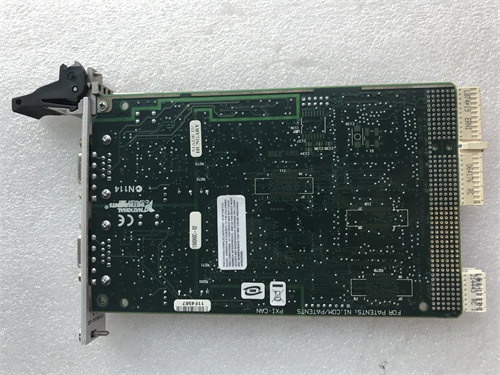

PXI-8461

Description

4.‌Series‌:

• Part of NI’s PXI series of modular instruments and controllers1

5.‌Features‌:
–‌High-Speed CAN Interface‌: Enables high-speed communication over CAN bus networks1
–‌Versatile Protocol Support‌: Compatible with multiple CAN protocols, increasing application flexibility1
–‌PCI Express Connectivity‌: Provides high-bandwidth connectivity to PXI systems1
–‌Compact Design‌: Space-saving design suitable for rack-mounted systems2

6.‌Functions‌:
–‌Data Acquisition‌: Acquires data from CAN bus networks for monitoring and analysis1
–‌System Integration‌: Integrates seamlessly into NI PXI systems for centralized control and monitoring1
–‌Industrial Automation‌: Essential for industrial automation applications requiring CAN bus communication

1.‌Parameters‌:
–‌Interfaces‌: Supports up to 8 different high-speed CAN bus interfaces1
–‌Data Transmission Rate‌: High-speed data transmission for real-time performance1
–‌Power Requirements‌: +3.3 VDC, +5 VDC, +12 VDC, -12 VDC1

2.‌Specifications‌:
–‌Compatibility‌: PCI Express interface card, compatible with NI PXI systems1
–‌Communication Protocols‌: Supports multiple CAN communication protocols1
–‌Operating Temperature Range‌: Not specifically mentioned, but typical industrial ranges apply2

3.‌Dimensions & Weight‌:
–‌Dimensions‌: Approximately 100mm x 50mm x 20mm
