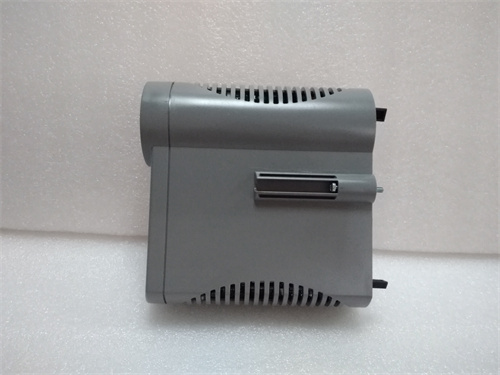

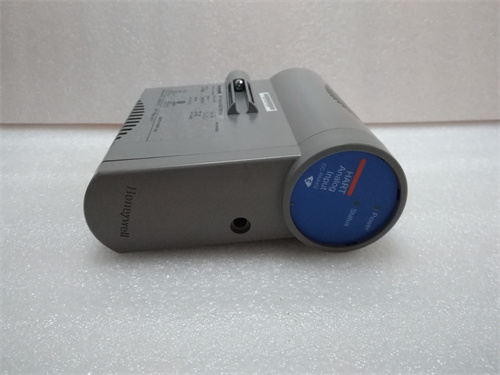

CC-PAIH02

Description

‌Parameters and Specifications‌:

–‌Model Number‌: CC-PAIH02
–‌Manufacturer‌: Honeywell
–‌Type‌: Advanced Analog Input Module with HART Communication
–‌Channels‌: 16 (12 single-ended, 4 differential)
–‌Input Ranges‌: 0-5V, 1-5V, 0.4-2V, or 4-20mA
–‌A/D Converter Resolution‌: 16 bits
–‌Accuracy‌: +/-0.10% F.S. @ 25°C
–‌Linearity‌: +/-0.05% F.S.
–‌Response Time‌: 200 ms
–‌Power Consumption‌: 60W
‌Dimensions and Weight‌:

–‌Dimensions‌: Not specified in detail, but base size mentioned as 22cm1
–‌Weight‌: Approximately 0.3 kg

‌Series‌:

• Part of Honeywell’s industrial automation and control product line
  ‌Features‌:

–‌HART Communication‌: Enables communication with HART-enabled devices like transmitters and sensors.
–‌Comprehensive Self-Diagnostics‌: Provides a range of self-diagnostic functions for troubleshooting.
–‌Optional Redundancy‌: Configurable for redundancy, enhancing system reliability.
–‌Wire Break Detection‌: Protects the module from damage caused by broken wires.
–‌Non-incendive Power‌: Suitable for use in hazardous areas due to non-incendive power supply.
–‌Integrated Wiring‌: Reduces footprint with dual-row terminal blocks for easy installation and maintenance.
–‌High Common Mode Rejection Ratio (CMRR)‌: 70dB for improved signal integrity.
‌Functions and Applications‌:

–‌Industrial Automation‌: Ideal for various industrial automation applications requiring precise analog input and HART communication.
–‌Process Control‌: Used in temperature monitoring, level measurement, flow measurement, pressure measurement, and vibration monitoring.
–‌Asset Tracking and Monitoring‌: Supports applications involving asset tracking, status monitoring, and safety systems.
