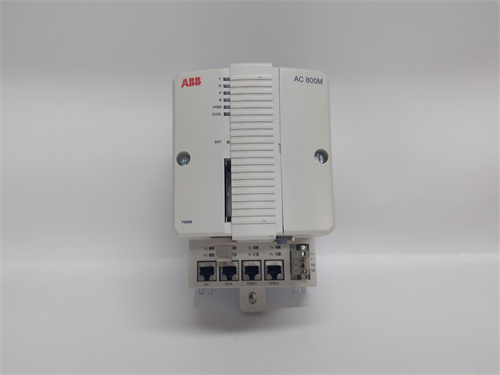

PM866K01

Description

1.‌Parameters‌:
–‌Processor‌: 133MHz12
–‌Memory‌: 64MB12
–‌Sampling Rate‌: Up to 500kHz13

2.‌Specifications‌:
–‌Input/Output (I/O)‌: Supports 16-bit and 12-bit models with 16 single-ended or 8 differential inputs3
–‌Input Ranges‌: Eight standard analog voltage input ranges and two factory current input ranges (4-20mA or 10-50mA)3
–‌Communication‌: High-speed USB 2.0 interface for data transmission1

3.‌Dimensions & Weight‌:
–‌Dimensions‌: 18cm x 18cm x 16cm (7.09 inches x 7.09 inches x 6.3 inches) or 4 inches x 4 inches x 1.25 inches (depending on the source)
–‌Weight‌: 1.1 kilograms (approx.)

4.‌Series‌:

• Part of ABB’s PM866 series of processor units
•

5.‌Features‌:
–‌High Sampling Rate‌: Up to 500kHz for real-time data capture13
–‌Flexible Configuration‌: Fully software-configurable, including 16-bit and 12-bit models13
–‌Accurate Data‌: Auto-calibration and real-time hardware calibration ensure precise data3
–‌Programmable Gain‌: Unique channel-by-channel programmable gain for versatility3
–‌Data Buffering‌: Equipped with a data buffer for ADC to ensure uninterrupted sampling3
–‌Rugged Design‌: Reinforced industrial housing for durability in harsh environments15

6.‌Functions & Applications‌:
–‌Industrial Automation‌: Widely used in industries such as manufacturing, chemicals, and power for process control5
–‌Data Acquisition‌: Captures and processes data from various industrial sensors and devices5
–‌System Integration‌: Supports various communication protocols for seamless integration with other systems1
–‌Remote Monitoring‌: Enables remote access and monitoring for improved operational efficiency
