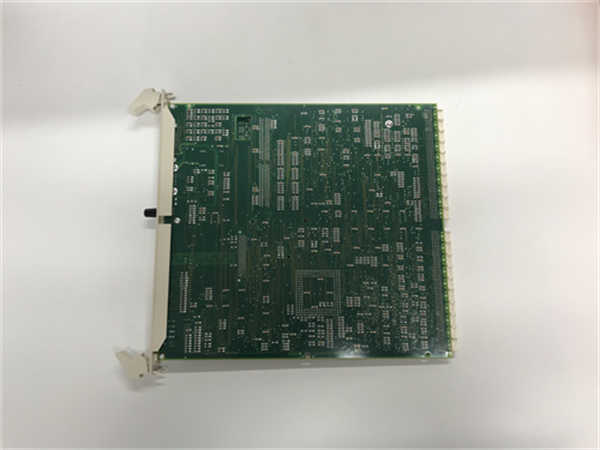

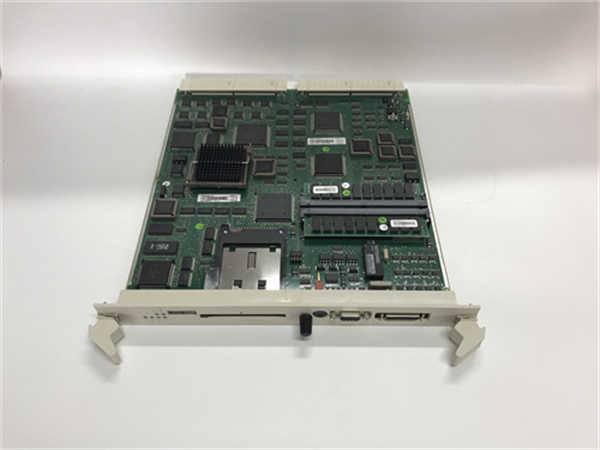

PM511

Description

1.‌Parameters‌:
–‌Input Voltage‌: Typically +5V DC (with tolerance of ±10%)1
–‌Output Voltage‌: 0-5V, -5V to +5V (D/A channels)1
–‌Input Signal Range‌: 0-10V, -5V to +5V (A/D channels)1

2.‌Specifications‌:
–‌A/D Conversion‌:
–‌Resolution‌: 12-bit1
–‌Maximum Sampling Frequency‌: 100KHz1
–‌D/A Conversion‌:
–‌Resolution‌: 12-bit1
–‌Output Channels‌: 4 independent1
–‌Switchable I/O‌:
–‌Programmable TTL Level‌: 24 channels1
–‌Count Channels‌: 3 channels, maximum count frequency of 10MHz

3.‌Dimensions & Weight‌:
–‌Dimensions‌: Approximately 91mm x 96mm (L x H)1
–‌Weight‌: Not explicitly mentioned, but typically lightweight for easy integration1

4.‌Series‌:

• PM511 is part of a series of processor modules or data acquisition boards designed for industrial and embedded applications12

5.‌Features‌:
–‌High-Resolution A/D and D/A Conversion‌: Provides accurate data acquisition and control1
–‌Programmable I/O‌: Enables flexible configuration for various applications1
–‌High-Speed Counting‌: Supports up to 10MHz counting frequency for precise timing and measurement1
–‌Compact Design‌: Space-saving design for easy integration into existing systems1
–‌Versatile Connectivity‌: Suitable for various industrial automation, laboratory, and embedded device applications1

6.‌Functions & Applications‌:
–‌Data Acquisition‌: Captures analog and digital signals from various sensors and devices1
–‌Control and Monitoring‌: Enables precise control and monitoring of industrial processes and equipment1
–‌Automation‌: Integral to automation systems, enhancing productivity and efficiency1
–‌Research and Development‌: Used in laboratories for research and development activities requiring high-precision data acquisition
