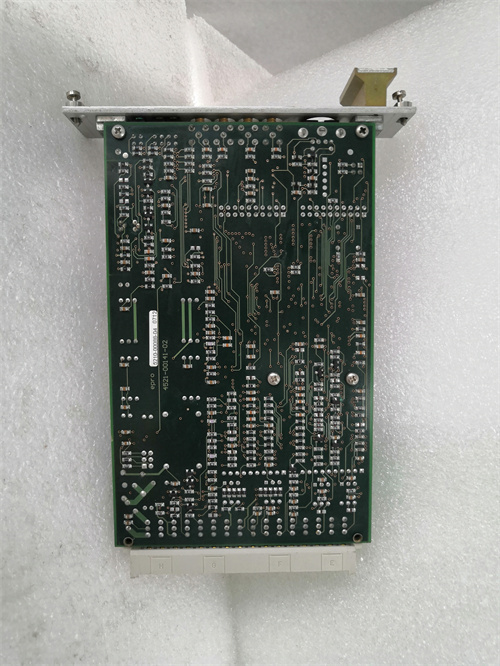

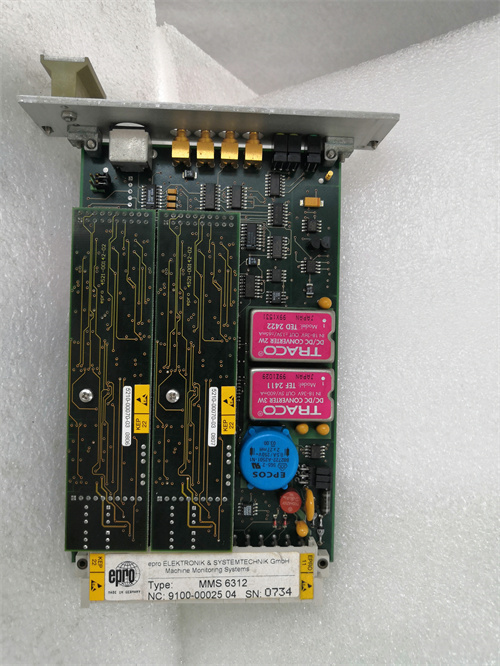

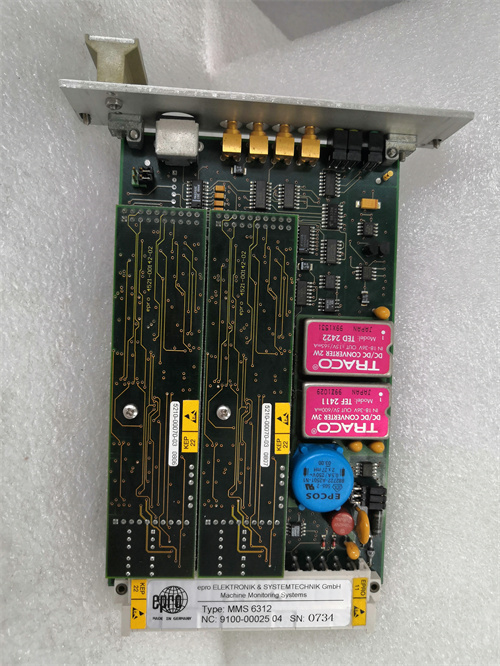

MMS6312

Description

–‌Series‌: MMS Series
–‌Dimensions‌: Approximately 15cm x 24cm x 35cm (size may vary depending on packaging and accessories)1
–‌Weight‌: Approximately 2KG (as per one source)2
–‌Features‌:

• Dual-channel design, capable of independently measuring the speed and keyphase pulse of two shafts.
• Supports the monitoring of rotational direction, speed difference between two shafts, and zero speed detection.
• Compatible with a wide range of sensors, including vortex sensors and Hall elements.
• Redundant power input and electrical isolation for increased reliability and safety.
• RS232/485 ports for field configuration and communication.
• Built-in sensor self-test and password-protected operation levels for added security.
  –‌Functions‌:
• Measures and monitors the rotational speed and keyphase pulse of rotating machinery, such as steam turbines, gas turbines, water turbines, compressors, fans, and centrifuges.
• Enhances operational efficiency, safety, and extends the lifespan of rotating equipment.
• Integrates seamlessly with turbine machinery protection systems, analysis diagnostic systems, fieldbus systems, distributed control systems, and more.
  –‌Specifications‌:
• Voltage: +24 VDC redundant power supply3
• Current: Supports 0/4…20mA output per channel3
• Frequency range: 0…20kHz3
• Measurement variables: Speed up to 655353
• Maximum tooth count: 255
