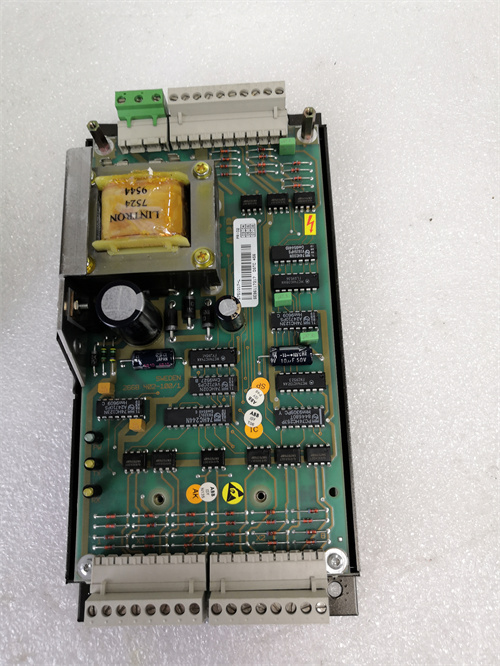

DSTC456

Description

1.‌Parameters‌:
–‌Voltage‌: 24V1, or 20V in some specifications2
–‌Current‌: 100-400A1, or 20A in specific cases2
–‌USB Interface‌: 2 interfaces1

2.‌Specifications‌:
–‌Model‌: DSTC45631
–‌Brand‌: Depending on the context, it may be associated with various manufacturers but is often listed as a standalone model31
–‌Type‌: Data Processor, Multiplexer, PLC Programmable Controller31

3.‌Dimensions & Weight‌:
–‌Width‌: 126mm (5”), including connectors4
–‌Height‌: 110mm (4.3”)4
–‌Depth‌: 64mm (2.52”), including terminals4
–‌Weight‌: 2KG1, or 0.8KG in some specifications

4.‌Series‌:

• Not explicitly listed as part of a series, but it is a standalone PLC module31

5.‌Features‌:
–‌Multiple I/O Channels‌: Supports 16 to 8 I/O channels with 2 terminals per channel4
–‌High Current Handling‌: Rated for high current distribution with a maximum of 2A per I/O channel4
–‌Protection and Safety‌: Complies with IEC 60529 with an IP20 protection rating4
–‌Flexible Connectivity‌: Accepts a wide range of wire sizes for solid and stranded conductors4
–‌Secure Locking Mechanism‌: Equipped with a mechanical key lock with 36 different combinations for I/O module security4

6.‌Functions‌:
–‌Data Processing‌: Acts as a central processing unit for data acquisition, processing, and distribution1
–‌System Control‌: Enables control and automation of industrial processes through PLC programming31
–‌Signal Multiplexing‌: Capable of multiplexing signals to and from multiple devices1
–‌Industrial Automation‌: Used in industrial automation systems for machine control, monitoring, and data logging
