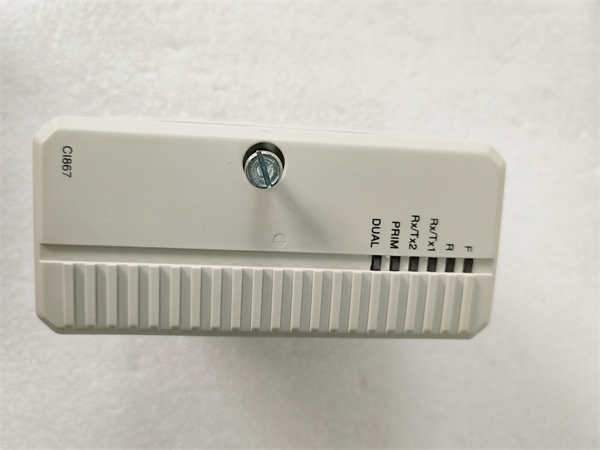

CI867

Description

‌Parameters & Specifications‌:

*‌Communication Rate‌: Up to 100 Mbps, enabling high-speed data transmission1.
*‌Transmission Distance‌: Maximum of 100 meters, suitable for various application scenarios1.
*‌Power Specifications‌: Wide voltage input range, adaptable to various power environments1.
*‌Voltage‌: Typically 24V23, but please refer to the specific product manual for confirmation.
*‌Current‌: Ranges from 100A to 400A, depending on the configuration23.
‌Dimensions & Weight‌:

*‌Dimensions‌: Compact design with dimensions varying depending on the specific model. For example, CI867AK01 measures 127.5 mm depth, 186 mm height, and 59 mm width4.
*‌Weight‌: Approximately 2KG

‌Series‌:

• Part of ABB’s communication module series, designed for integration with AC 800M controllers and other automation systems45.
  ‌Features‌:

*‌Integrated Multiple Communication Protocols‌: Supports various communication protocols, making it versatile for different data communication needs1.
*‌High Stability & Reliability‌: Equipped with a processor, communication chip, memory, and power management module, ensuring stable and reliable operation1.
*‌Rich Communication Interfaces‌: Provides serial ports, Ethernet ports, CAN bus interfaces, etc., facilitating easy connection with other devices1.
*‌Easy Installation & Configuration‌: Simply insert the module into the corresponding slot and configure the parameters as needed1.
‌Functions‌:

*‌Data Communication‌: Used in various industrial automation, intelligent transportation, smart home, and medical equipment fields for data transmission1.
*‌Modbus TCP Connectivity‌: Enables connection between AC 800M controllers and external Ethernet devices using Modbus TCP protocol5.
*‌Dual-Channel Ethernet Capability‌: Supports both full-duplex at 100 Mbps (Ch1) and half-duplex at 10 Mbps (Ch2), allowing for redundancy and hot-swapping
