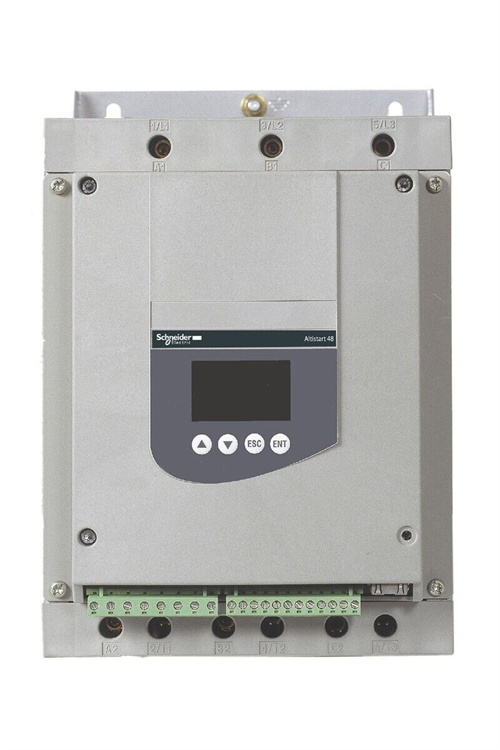

ATS48C32Q

Description

1.‌Parameters‌:
–‌Rated Current‌: 320A
–‌Motor Power‌: 160kW (at 380V, 400V, or 415V)12
–‌Supply Voltage‌: 230V to 415V (-15% to +10%)12

2.‌Specifications‌:
–‌Type‌: Soft Starter
–‌Application‌: Specifically designed for heavy-duty applications such as pumps, fans, and high-inertia machinery1
–‌Control‌: Features torque control for smooth acceleration and deceleration1

3.‌Dimensions & Weight‌:
–‌Dimensions‌: 320mm x 380mm x 265mm (Width x Height x Depth)6
–‌Weight‌: Approximately 18.2kg to 22kg, depending on the source

4.‌Series‌:

• Belongs to the Altistart 48 (ATS48) series of soft starters from Schneider Electric12

5.‌Features‌:
–‌Torque Control System (TCS)‌: Provides linear control of motor torque during acceleration and deceleration, reducing pressure fluctuations1
–‌Protection‌: Offers thermal and mechanical protection for the motor, including protection against underload, overload, rotor lock, and direction monitoring1
–‌Flexibility‌: Configurable through an integrated display or PowerSuite software1
–‌Communication‌: Integrated Modbus, FIPIO, Profibus DP, DeviceNet, and Ethernet communication protocols1

6.‌Functions‌:
–‌Soft Starting‌: Enables smooth starting of motors, reducing stress on the electrical system and mechanical components1
–‌Energy Savings‌: Helps to optimize energy consumption by reducing inrush currents and controlling acceleration rates1
–‌System Integration‌: Facilitates integration into larger industrial automation systems, enhancing overall system performance and reliability1
–‌User-Friendly‌: Simplifies setup and configuration, reducing installation time and costs
