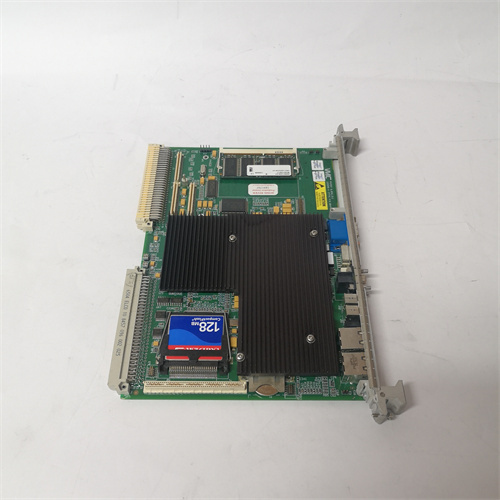

VMIVME-7750

Description

1.‌Parameters‌:
–‌Processor‌: Intel Pentium III, up to 1.26 GHz1
–‌Memory‌: Up to 512 Mbyte PC133 SDRAM1
–‌Graphics‌: Internal AGP SVGA controller with 4 Mbyte display cache, supporting up to 1600 x 1200 x 256 colors1
–‌Interfaces‌: VME P1/P2, VGA, PS/2, serial ports, USB, Ethernet2

2.‌Specifications‌:
–‌Chipset‌: Intel 815E chipset with 133 MHz front-side bus1
–‌Cache‌: 512 Kbyte Advanced Transfer Cache1
–‌Ethernet Controllers‌: Dual Intel Ethernet controllers supporting 10BaseT and 100BaseTX1
–‌Operating Systems‌: Supports multiple operating systems including VxWorks, Linux, Windows XP/2000

3.‌Dimensions & Weight‌:
–‌Dimensions‌: 170mm x 105mm x 32mm (approx.)
–‌Weight‌: Approximately 120g

4.‌Series‌:

• Part of the VMIVME series of VME single-board computers from GE Fanuc Embedded Systems2

5.‌Features‌:
–‌High Performance‌: Powered by the Intel Pentium III processor for demanding applications1
–‌Multi-Interface Support‌: Provides a wide range of interfaces for connectivity2
–‌Embedded Control‌: Ideal for use in industrial automation systems2
–‌Remote Boot Capability‌: BootWare technology enables remote boot via NetWare, TCP/IP, or RPL protocols1
–‌Rugged Design‌: Industrial-grade temperature range and suitable for harsh environments2

6.‌Functions & Applications‌:
–‌Industrial Automation‌: Used in industrial control systems, process control, and motion control2
–‌Test & Measurement‌: Suitable for instrumentation and data acquisition systems2
–‌Military‌: Ideal for military equipment control and data processing2
–‌Embedded Solutions‌: Acts as a core controller in various embedded systems requiring high performance and reliability
