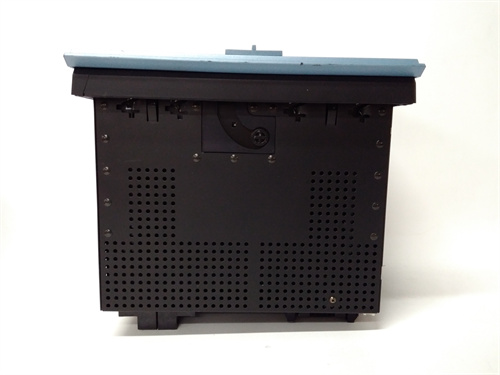

SR469-P5-HI-A20-E

Description

‌Parameters & Specifications‌:

–‌Control Power‌: Offers a control power range of 70-265 VAC and 90-300 VDC12.
–‌Protection Functions‌: Includes overload, short circuit, undervoltage, phase loss, and overheat protection5.
–‌Accuracy‌: Provides protection accuracy within ±2%5.
–‌Response Time‌: Has a response time of ≤10 ms5.
‌Dimensions & Weight‌:

–‌Dimensions‌: Measures approximately 100 mm x 70 mm x 30 mm5.
–‌Weight‌: Weighs approximately 0.5 kg5.
‌Series‌:

• SR469-P5-HI-A20-E belongs to the SR469 motor management relay series from GE Multilin
•
  ‌Features‌:

–‌Enhanced Front Panel‌: Features an easy-to-use front panel with a large LCD display, digital keyboard, and control/programming buttons14.
–‌RS-232 Interface‌: Includes an RS-232 program port interface with a baud rate of 9600, programmable up to 19,200 baud14.
–‌Sealed Drawer Handle‌: Equipped with a sealed drawer handle to prevent unauthorized access or movement14.
–‌Communication Capability‌: Supports multiple communication protocols, including RS232 and RS485, facilitating integration with upper-level systems5.
–‌High-Precision Detection‌: Utilizes high-precision current and voltage sensors for accurate monitoring of motor operating status5.
‌Functions & Applications‌:

–‌Motor Protection‌: Provides comprehensive protection for medium-voltage motors, including overload, short circuit, and other fault conditions5.
–‌Real-Time Monitoring‌: Enables real-time monitoring of motor parameters such as current, voltage, and temperature5.
–‌Easy Configuration‌: Allows for easy configuration and adjustment of protection settings via the front panel or communication interfaces5.
–‌Industrial Applications‌: Suitable for use in various industrial applications requiring reliable motor protection and management
