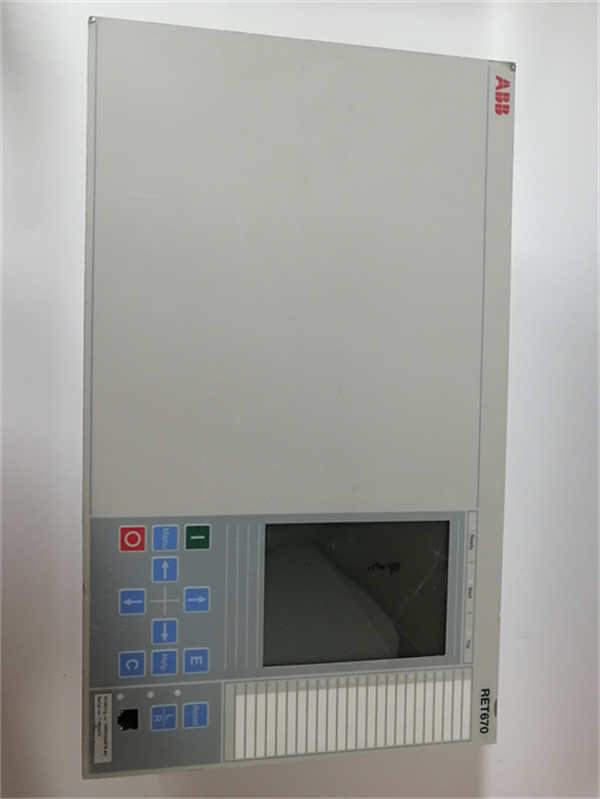

RET670 1MRK004816-AC

Description

‌Parameters & Specifications‌:

–‌Model‌: RET670 1MRK004816-AC
–‌Voltage‌: 24V1
–‌Current‌: 100-400A1
–‌Rated Current‌: 34mA2
–‌Communication Interface‌: CNA2
‌Dimensions & Weight‌:

–‌Physical Dimensions‌: Approx. 170mm x 170mm (L x W)3, also mentioned as 23mm x 26mm x 5mm in another context4, but the larger dimension is likely more accurate for this module.
–‌Height‌: 75mm2
–‌Weight‌: 2KG

‌Series‌:

• Part of ABB’s RELION series5, a range of protection and control devices for electrical systems.
  ‌Features‌:

–‌Multi-Channel Relay‌: Equipped with multiple relay channels, allowing independent control of one or more electrical devices67.
–‌High Reliability‌: Constructed with high-quality materials and advanced manufacturing techniques, ensuring reliability in harsh industrial environments7.
–‌Advanced Protection‌: Incorporates features such as overcurrent and overvoltage protection, safeguarding equipment and systems from potential electrical hazards67.
–‌Communication Capability‌: Equipped with communication interfaces, enabling remote monitoring and control of electrical systems65.
–‌Compact Design‌: Space-saving design, facilitating easy integration into existing control systems7.
‌Functions‌:

–‌Logical Control‌: Enables complex logic control functions on a single module, simplifying automation systems6.
–‌System Protection‌: Protects electrical equipment and lines from faults such as overcurrent, overload, and short circuits5.
–‌Monitoring & Data Acquisition‌: Provides monitoring and data acquisition capabilities, aiding in the diagnosis and analysis of electrical system performance5.
–‌Integration‌: Seamlessly integrates into ABB’s automation control systems, enhancing the overall functionality and efficiency of industrial processes
