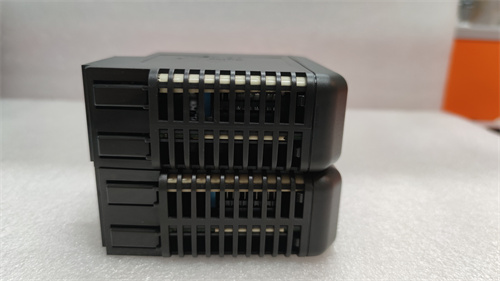

KJ3002X1-BC1 12P0681X092

Description

‌Parameters and Specifications‌:

–‌Model Number‌: KJ3002X1-BC1 12P0681X09212.
–‌Manufacturer‌: Emerson25.
–‌Type‌: Analog Input Module12.
–‌Input Voltage‌: 24VDC1, also supports 12-48VDC4.
–‌Input Current‌: 100-400A (depending on configuration)1, 4-20mA for discrete input3.
–‌Output Voltage‌: 5VDC4.
–‌Output Current‌: Maximum 10A4.
–‌Working Temperature‌: 60°C1, 0 to 85°C for some models3.
–‌Resolution‌: 14-bit for RTD inputs1.
‌Dimensions and Weight‌:

–‌Dimensions‌: May vary depending on specific model and configuration, but an example is 170mm x 105mm x 32mm4.
–‌Weight‌: 2KG1, 2.6KG for some models3, or approximately 120g4.

‌Series‌:

• Part of Emerson’s DeltaV or Ovation control system series23.
  ‌Features‌:

–‌Multi-Channel Inputs‌: Supports multiple channels for analog input16.
–‌Isolation‌: Provides isolation between channels and the bus1.
–‌Flexible Input Types‌: Can accept voltage or current inputs1.
–‌RTD Support‌: Includes channels for RTD (Pt100, Cu10, Ni100, and Ni120) inputs1.
–‌Monitoring‌: Monitors for open/short circuits and input grounding1.
–‌High Efficiency‌: Efficiency greater than 90% for some models4.
‌Applications‌:

–‌Industrial Automation‌: Used in industrial automation systems for monitoring and controlling analog signals23.
–‌Process Control‌: Integral part of process control systems, allowing for precise monitoring and control of process variables23.
–‌Temperature Measurement‌: Utilized for temperature measurement through RTD inputs
