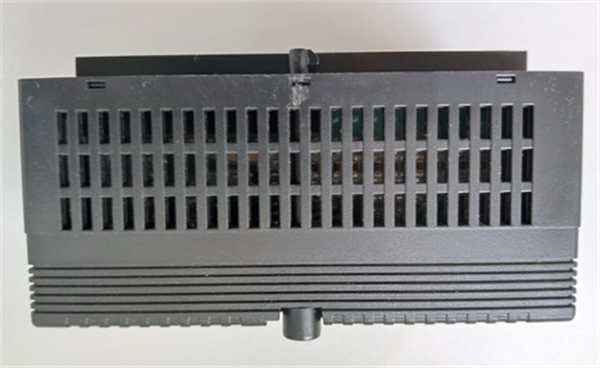

IC200ALG264

Description

‌Parameters and Specifications‌:
–‌Model Number‌: IC200ALG264
–‌Series‌: VersaMax I/O
–‌Input Channels‌: 15 single-ended analog input channels12
–‌Input Signal Range‌: Accepts 0-20 mA and 4-20 mA input signals12
–‌Converter Resolution‌: 15-bit analog-to-digital converter (ADC) resolution12
–‌Update Rate‌: 7.5 milliseconds12
–‌Accuracy‌:

• Typical: +/-0.3% of full scale1
• At 0°C: +/-0.5%2
• Maximum: +/-1% of full scale
•
  ‌Dimensions and Weight‌:
  –‌Dimensions‌: 4.300 inches x 1.956 inches x 2.630 inches34
  –‌Weight‌: Approximately 100 grams5
  ‌Series‌:
• Part of the VersaMax I/O series, designed for distributed input/output applications12
  ‌Features‌:
  –‌Compact Design‌: Enables installation in remote locations12
  –‌High Resolution‌: 15-bit ADC resolution for precise measurements12
  –‌Configurable Input Range‌: Selectable input range via terminal jumpers (0-20 mA or 4-20 mA)12
  –‌Diagnostic Capabilities‌: Detects internal power loss and open-circuit faults (in 4-20 mA mode)12
  –‌LED Indicator‌: Indicates module status and successful configuration12
  ‌Functions and Applications‌:
  –‌Analog Input‌: Provides 15 analog input channels for connecting various sensors and transducers12
  –‌Data Transmission‌: Transmits I/O data via industrial communication protocols12
  –‌Automation Control‌: Used in industrial automation systems for process monitoring and control12
  –‌Integration‌: Enables seamless integration with VersaMax I/O systems and other compatible automation equipment
