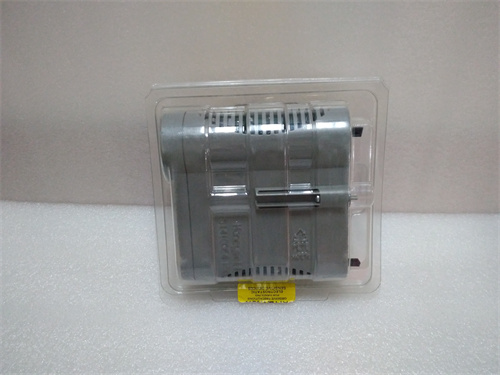

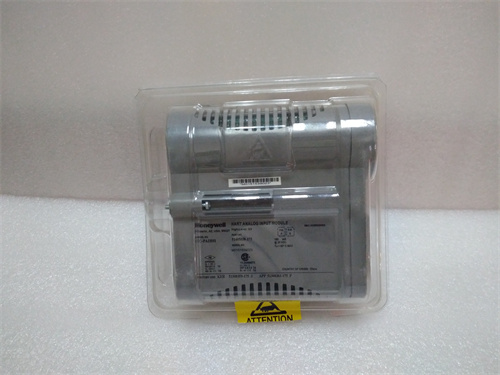

Honeywell CC-PAIH01

Description

1. Product Overview

2. Product Parameters

2.1 Core Input Specifications

• Input Channels: 8 isolated analog input channels (independently configurable per channel)
• Supported Signals:
  • Current: 4-20mA DC (loop-powered/sourcing), 0-20mA DC
  • Voltage: 0-5V DC, 0-10V DC
• Resolution: 16-bit (analog-to-digital conversion)
• Accuracy: ±0.05% of full scale (calibrated over -40°C to +70°C)
• Sampling Rate: 1000 samples per second (per channel, max), configurable from 10sps to 1000sps
• Isolation Rating: 2500V AC channel-to-channel, 3000V AC channel-to-ground
• Input Impedance: 250Ω (current), 1MΩ (voltage)

2.2 Electrical & System Parameters

• Power Supply: 24V DC (supplied by Experion PKS I/O rack), power consumption ≤10W
• Backplane Interface: Honeywell FTE (Fault-Tolerant Ethernet) I/O bus, compatible with Experion PKS C300/C200 controllers
• Diagnostic Features: Open-loop detection, short-circuit protection, overrange/underrange alerts, channel-level fault indication, LED status indicators (power, communication, channel activity)
• Configuration: Software-configurable via Experion PKS Configuration Studio (sampling rate, signal type, scaling, alarm thresholds)
• Compatibility: Honeywell Experion PKS C300/C200 controllers, high-speed transmitters (vibration sensors, Coriolis flow meters) from major manufacturers

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (rack-mounted)
• Vibration Resistance: 5-2000Hz, 2g (IEC 60068-2-6, X/Y/Z axes)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Mounting: Experion PKS I/O rack-mounted (standard 19-inch rack), hot-swappable (plug-in module)
• Dimensions: 120mm (W) × 150mm (H) × 30mm (D), Experion PKS rack-compatible form factor

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2, ATEX Zone 2 (Ex nA IIC T4), IEC 61508 (SIL 2 certified for safety applications)
• Compatibility: Honeywell Experion PKS systems (Release R400+), high-speed analog field devices
• MTBF: ≥1,200,000 hours (per Telcordia SR-332 standards)

3. Advantages & Features

1. Ultra-Fast Sampling: HONEYWELL CC-PAIH01 supports up to 1000sps per channel, enabling real-time capture of fast-changing signals (e.g., turbine vibration, rapid pressure spikes) that standard analog input modules cannot process—critical for predictive maintenance and dynamic process control.
2. High Precision & Stability: 16-bit resolution and ±0.05% accuracy ensure reliable data acquisition even in harsh industrial environments, minimizing measurement errors for high-precision applications like custody transfer metering.
3. Enhanced Isolation & Protection: 2500V AC channel-to-channel isolation and comprehensive fault detection safeguard HONEYWELL CC-PAIH01 from electrical interference and sensor faults, ensuring uninterrupted operation in noisy environments (e.g., near high-voltage motors).
4. Hot-Swappable Design: HONEYWELL CC-PAIH01 can be replaced in live Experion PKS systems without interrupting process control, reducing maintenance downtime and avoiding costly production disruptions for time-critical processes.
5. Seamless Experion PKS Integration: Native compatibility with Experion PKS controllers and Configuration Studio software enables plug-and-play setup, with customizable sampling rates and alarm settings to match specific application requirements.

4. Application Fields & Cases

4.1 Application Fields

• Power Generation: Gas/steam turbine vibration monitoring, generator temperature/pressure rapid sampling, boiler combustion dynamic control
• Oil & Gas: Refinery fuel gas custody transfer metering, pipeline rapid pressure fluctuation monitoring, LNG regasification process control
• Chemical Manufacturing: Continuous mixing process pressure monitoring, reactor temperature spike detection, high-speed flow control for batch processes
• Aerospace & Defense: Test stand dynamic pressure/temperature measurement, engine component vibration monitoring (industrial applications)

4.2 Typical Cases

1. Gas Turbine Vibration Monitoring: A combined-cycle power plant deployed HONEYWELL CC-PAIH01 modules in its Experion PKS system to monitor 32 vibration sensor channels (4-20mA) on 4 gas turbines. The 1000sps sampling rate enabled real-time detection of abnormal vibration patterns, allowing predictive maintenance that reduced unplanned downtime by 40%.
2. Refinery Custody Transfer Metering: A major U.S. refinery used HONEYWELL CC-PAIH01 to acquire high-speed flow data from Coriolis meters (4-20mA) for fuel gas custody transfer. The module’s ±0.05% accuracy ensured compliance with regulatory measurement standards, eliminating billing disputes and improving data reliability.
3. Chemical Plant Dynamic Pressure Control: A European chemical manufacturer integrated HONEYWELL CC-PAIH01 into its Experion PKS system to monitor rapid pressure fluctuations in a continuous polymerization process. The configurable sampling rate (500sps) allowed precise process adjustments, reducing product variability by 15% and increasing yield.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. High-Speed Signal Requirements: Choose HONEYWELL CC-PAIH01 for applications requiring sampling rates >100sps (e.g., vibration monitoring, rapid pressure control); standard analog input modules are sufficient for slow-changing signals.
2. System Compatibility: Opt for HONEYWELL CC-PAIH01 for Honeywell Experion PKS C300/C200 systems (Release R400+); generic high-speed modules may lack native integration and diagnostic features.
3. Accuracy & Safety Needs: Select HONEYWELL CC-PAIH01 for SIL 2 safety applications or high-precision metering (e.g., custody transfer); lower-spec modules may fail to meet regulatory or process requirements.

6.2 Precautions

1. Installation Guidelines:
   • Install HONEYWELL CC-PAIH01 in Experion PKS I/O racks only; use shielded twisted-pair cables with low capacitance (≤100pF/m) for high-speed signals (maximum distance 300m) to avoid signal degradation.
   • Ensure proper grounding (≤4Ω) and separate routing of high-speed signal cables from power cables to minimize electromagnetic interference.
2. Configuration Notes:
   • Set sampling rates via Experion PKS Configuration Studio based on application needs (e.g., 1000sps for vibration, 100sps for flow); higher sampling rates increase system bandwidth usage—balance speed with network capacity.
   • Enable overrange/underrange alarms to detect sensor faults or process anomalies in real time.
3. Troubleshooting:
   • For signal latency or distortion: Check cable quality (low capacitance required), verify sampling rate settings, and inspect sensor calibration.
   • For communication faults: Inspect FTE bus connectivity, verify module firmware compatibility with Experion PKS controllers, and check power supply stability.
4. Maintenance:
   • Inspect module connectors quarterly (instead of annually) for high-vibration applications to prevent loose connections; clean with compressed air to remove dust and debris.
   • Recalibrate HONEYWELL CC-PAIH01 every 18 months (instead of 2 years) for high-precision applications to maintain accuracy.
   • Stock spare HONEYWELL CC-PAIH01 modules—lead times for high-speed I/O components may exceed 10 weeks.
