GE IS200TSVCH1A

Description

Product Description

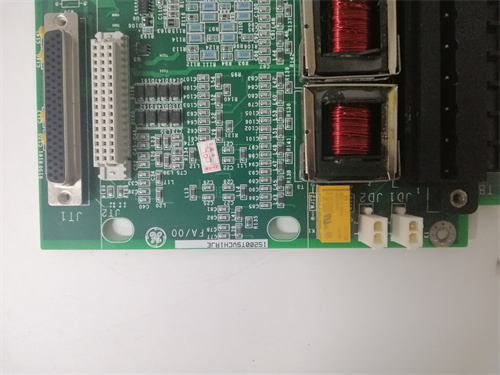

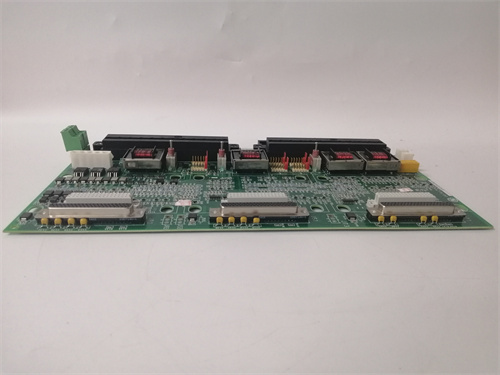

The GE IS200TSVCH1A is a specialized terminal board module designed as a critical component within GE’s Mark VI and Mark VIe Speedtronic turbine control systems. As part of GE’s comprehensive family of industrial gas and steam turbine automation products, this module serves as an essential interface between the control system and field devices. The core function of the GE IS200TSVCH1A is to provide termination and signal conditioning for turbine control sensors and actuators, typically serving as a connection point for servo valve control circuits. Engineered for the demanding environments of power generation and mechanical drive applications, the GE IS200TSVCH1A features robust construction, extensive surge protection, and reliable signal conditioning that ensures accurate and dependable turbine operation under all conditions.

Product Parameters

• Model Number: GE IS200TSVCH1A

• Type: Terminal Board / Servo Valve Control Interface Module

• Series: GE Mark VI / Mark VIe Speedtronic

• Function: Servo valve control interface and signal termination

• Input Signals: LVDT (Linear Variable Differential Transformer) feedback from servo valves

• Output Signals: ±10 VDC or 4-20 mA servo valve command signals

• Channels: Multiple channels (typically 2-4) for redundant or multi-valve control

• Isolation: Optical and transformer isolation between field and control logic

• Protection: Surge suppression, reverse polarity protection, overvoltage clamping

• Mounting: Panel mount with DIN rail option

• Connectors: High-density terminal blocks for field wiring; ribbon cable or discrete wiring to controller

• Indicators: Power and channel status LEDs

• Operating Temperature: -30°C to +65°C

• Certification: CE, UL, CSA, ATEX (hazardous area approvals typical)

Advantages and Features

The primary advantage of the GE IS200TSVCH1A lies in its specialized design for turbine servo valve control applications. By utilizing the GE IS200TSVCH1A, power generation facilities benefit from GE’s decades of turbine control expertise embedded in the module’s signal conditioning and protection circuitry. The module provides comprehensive LVDT excitation and signal demodulation, eliminating the need for external signal conditioners when interfacing with servo valve position feedback. Built-in surge protection on the GE IS200TSVCH1A safeguards sensitive control electronics from transients induced by nearby lightning strikes or switching operations in the power plant environment. The modular design of the GE IS200TSVCH1A allows for straightforward troubleshooting and replacement, minimizing turbine downtime during maintenance events. Furthermore, the GE IS200TSVCH1A supports the redundant configurations common in turbine control, allowing seamless transfer between primary and backup modules.

Application Cases in Application Fields

The precision and reliability of the GE IS200TSVCH1A make it essential in critical power generation and mechanical drive applications.

• Gas Turbine Power Plants: In a simple-cycle peaking plant, the GE IS200TSVCH1A interfaces with fuel control servo valves, precisely modulating fuel flow to maintain correct turbine speed and exhaust temperature during rapid load changes.

• Combined-Cycle Facilities: At a large combined-cycle plant, the GE IS200TSVCH1A controls steam turbine inlet valves, managing steam admission to optimize efficiency across varying operating conditions.

• Compressor Stations: On a gas pipeline centrifugal compressor driven by a GE turbine, the GE IS200TSVCH1A regulates variable inlet guide vanes, maintaining optimal compressor performance across changing flow and pressure requirements.

• Cogeneration Plants: In an industrial cogeneration facility, the GE IS200TSVCH1A controls extraction steam valves, balancing process steam demand with power generation requirements for maximum economic return.

Comparison with Competing Products

When compared to turbine control interface modules from competitors such as Siemens (S5-115U turbine control) or Woodward (MicroNet TMR), the GE IS200TSVCH1A offers specific advantages for users invested in GE’s Speedtronic ecosystem. While Woodward excels in standalone turbine retrofits, the GE IS200TSVCH1A provides seamless integration with GE’s Mark VI controller and HMI software, preserving the original equipment manufacturer’s control algorithms and safety certifications. Compared to Siemens turbine controls, the GE IS200TSVCH1A typically features more comprehensive diagnostic capabilities accessible through GE’s Toolbox software. For facilities operating GE turbines, the GE IS200TSVCH1A represents the manufacturer-approved solution, ensuring compliance with OEM service bulletins and safety recommendations.

Selection Suggestions and Precautions

When selecting the GE IS200TSVCH1A for your application, first verify the specific revision level and compatibility with your Mark VI or Mark VIe rack and controller firmware. Ensure that the GE IS200TSVCH1A is correctly configured for your specific servo valve type and LVDT characteristics, as incorrect configuration can lead to unstable turbine operation. When installing the GE IS200TSVCH1A, follow GE’s recommended wiring practices precisely, including proper shielding and grounding of LVDT and servo valve cables to prevent noise pickup. Pay careful attention to the torque specifications for terminal block connections on the GE IS200TSVCH1A, as loose connections can cause intermittent operation or complete loss of control. Before commissioning the GE IS200TSVCH1A after replacement, perform complete valve calibration and stroke checks to verify proper operation and feedback linearity. Finally, always maintain current backups of the turbine control configuration parameters related to the GE IS200TSVCH1A to enable rapid recovery in the event of module failure.
