GE IS200SRTDH2ACB

GE IS200SRTDH2ACB Product Description

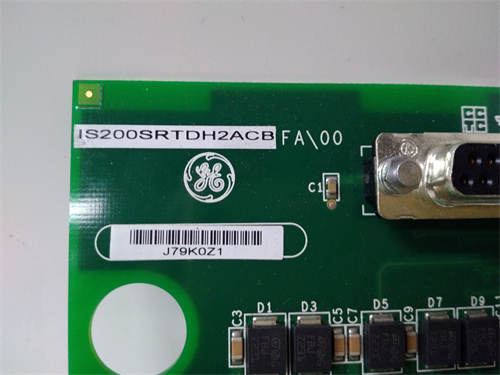

The GE IS200SRTDH2ACB is a specialized terminal board designed for use within the Mark VIe Speedtronic control system, which is GE’s flagship platform for managing steam and gas turbines. Manufactured by GE as part of their Industrial Systems (now part of Veritas Capital), this board functions as a critical interface between field-mounted Resistive Temperature Detectors (RTDs) and the main control system. The GE IS200SRTDH2ACB (RTD Terminal Board) accepts wiring from RTD sensors—typically used for bearing temperature monitoring, stator temperature monitoring, and other critical thermal measurements—and conditions these signals before they are passed to the analog input modules. The “H2A” in its designation typically refers to a specific hardware revision or coating option, ensuring reliability in the harsh electrical and thermal environment of a turbine hall. Without the GE IS200SRTDH2ACB, the control system would lack the accurate temperature data essential for safe turbine operation.

Product Parameters

The GE IS200SRTDH2ACB is engineered for high-accuracy signal conditioning in industrial applications.

• Function: Provides signal conditioning and termination for multiple RTD inputs (typically 3-wire or 4-wire configurations for high accuracy).

• Number of Channels: Typically supports up to 24 RTD input channels on a single board, allowing for dense temperature monitoring.

• Signal Conditioning: Includes filtering and conversion circuitry to ensure clean, accurate signals are sent to the core control modules.

• Isolation: Provides channel-to-channel and channel-to-ground isolation to prevent ground loops and protect sensitive electronics from electrical noise and transients.

• Connectors: Features multiple terminal blocks for field wiring and a high-density backplane connector for communication with the associated analog input card (e.g., a IS200SRTDH2ACB is often paired with a VSIO or similar I/O pack).

• Mounting: Designed to be mounted within a Mark VIe panel, often on a dedicated mounting plate or rail system.

Advantages and Features

The GE IS200SRTDH2ACB is a crucial component that brings significant advantages to turbine control applications.

• High Accuracy: By supporting 4-wire RTD configurations, the GE IS200SRTDH2ACB eliminates lead wire resistance errors, providing precise temperature readings that are vital for protecting expensive turbine assets.

• Modular Architecture: As a terminal board, it physically separates field wiring from the main control electronics. This means the GE IS200SRTDH2ACB can remain wired to the field devices while the I/O pack is replaced, significantly reducing downtime during maintenance.

• Robust Construction: Built to GE’s stringent specifications for the Speedtronic line, the GE IS200SRTDH2ACB features high-quality components and is often coated to resist vibration and contamination found in turbine environments.

• Diagnostic Capabilities: It provides diagnostic feedback to the control system, allowing for detection of open circuits or shorted RTD sensors, which enhances system troubleshooting.

Application Cases in Application Fields

The GE IS200SRTDH2ACB is almost exclusively found in the power generation and heavy industrial sectors.

• Gas Turbine Power Plants: Monitors critical bearing temperatures, exhaust gas temperatures, and compressor inlet temperatures. The GE IS200SRTDH2ACB provides the data needed for the Mark VIe to control fuel flow and protect against overheating.

• Steam Turbine Generators: Used to measure metal temperatures in turbine casings and steam inlet temperatures. The GE IS200SRTDH2ACB ensures the thermal stress on the turbine is kept within safe limits during startup and load changes.

• Industrial Compressor Stations: Applied in large gas compression trains driven by turbines, where the GE IS200SRTDH2ACB monitors the temperatures of compressor bearings and seals to prevent catastrophic failures.

Comparisons with Competitor Products

While many automation vendors offer RTD input modules, the GE IS200SRTDH2ACB has distinct characteristics compared to competitors.

• vs. Siemens ET 200SP AI RTD: Siemens offers compact RTD modules for their distributed I/O systems. However, the GE IS200SRTDH2ACB is part of a dedicated turbine control platform with a split-architecture (terminal board + I/O pack). This separation, common in the GE IS200SRTDH2ACB, allows field wiring to remain undisturbed during electronics replacement, a feature not always present in integrated Siemens modules.

• vs. ABB S800 I/O: ABB’s S800 series offers robust RTD modules with similar isolation. However, the GE IS200SRTDH2ACB is specifically optimized for the high-speed, deterministic control requirements of the Mark VIe turbine control system, whereas ABB’s offerings are more generalized for process control.

• vs. Emerson AMI Series: Emerson provides high-density RTD interfaces for their Ovation DCS. While both are excellent, the GE IS200SRTDH2ACB benefits from being natively designed for GE’s Speedtronic architecture, ensuring seamless integration with turbine-specific control algorithms that generic RTD interfaces cannot match.

Selection Suggestions and Precautions

When selecting or replacing a GE IS200SRTDH2ACB, careful attention to detail is required.

• Revision Compatibility: The “H2A” in GE IS200SRTDH2ACB indicates a specific revision. Always verify that this revision is compatible with the I/O pack (e.g., the corresponding VSIO module) and the firmware version running in your Mark VIe controller.

• RTD Type: Confirm that the GE IS200SRTDH2ACB is configured for the specific type of RTD you are using (e.g., 100 Ohm Platinum, Nickel). Using the wrong configuration will result in inaccurate temperature readings.

• Wiring Practice: Strictly adhere to the wiring diagrams in the GE manual for the GE IS200SRTDH2ACB. Using shielded, twisted-pair wiring and ensuring proper grounding is essential to maintain signal integrity and prevent noise from affecting measurements.

• Coating Options: Be aware of coating options (e.g., “C” for conformal coating). If your application involves high humidity or corrosive gases, ensure your GE IS200SRTDH2ACB has the appropriate coating specified in its part number.
