GE IC698PSA100

Description

GE IC698PSA100 Product Overview

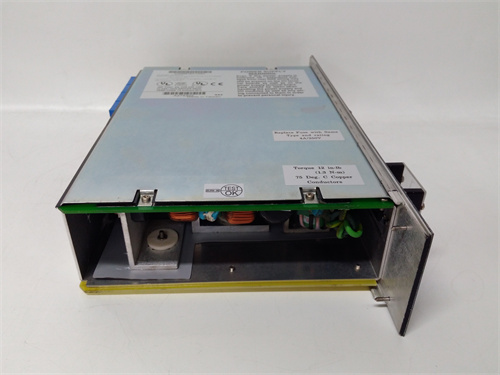

GE IC698PSA100 is a high-reliability power supply module developed by GE Intelligent Platforms (now part of Emerson) for use in their PACSystems RX7i and legacy Series 90-70 programmable logic controllers (PLCs). This module is a critical component, serving as the power source that ensures stable and clean electrical power for the central processing unit (CPU), I/O modules, and communication modules installed in the main rack.

The GE IC698PSA100 is designed for installation in the dedicated RX7i/90-70 rack, typically on the left side, and converts incoming AC line voltage into the stabilized DC voltages required by all system electronics. For industrial facilities in sectors like metals, power generation, oil and gas, and water treatment that operate GE Series 90-70 or RX7i PLCs, the reliability of the power supply is the bedrock of the entire automation system’s availability. Failure of the GE IC698PSA100 will halt the entire controller, making a functional, genuine spare module absolutely critical for maintaining production continuity and safety. When maintaining your system, sourcing a genuine GE IC698PSA100 【insert link here】 is key to a seamless replacement.

Technical Parameters and Specifications

The technical specifications of the GE IC698PSA100 are designed to provide stable, reliable power in harsh industrial environments:

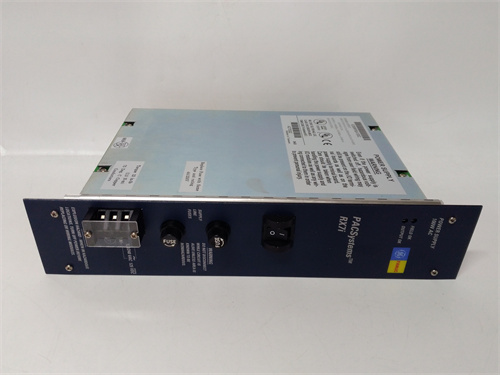

• Physical Characteristics: Housed in the standard modular format for RX7i/90-70 systems, it is designed for insertion into a dedicated slot (usually the leftmost two slots) of the PLC rack. It features a robust metal chassis that provides excellent electromagnetic shielding and efficient heat dissipation. The front panel contains terminals for AC input wiring and light-emitting diode (LED) status indicators.

• Input Characteristics:

  • Input Voltage: The IC698PSA100 is typically designed for a wide range of AC input voltages, such as 85-264V AC, 50/60Hz, allowing it to be used in various power grids worldwide without modification.

  • Input Protection: Built-in protection circuits safeguard the module against over-voltage, inrush current, and brief power sags.

• Output Characteristics:

  • Output Voltages: It converts the AC input into the stabilized DC voltages required by the PLC components. This typically includes +5V DC (for logic and processor power) and +24V DC (for I/O module circuits and field sensor power).

  • Output Power/Current: The “100” in IC698PSA100 likely denotes its output current capacity, probably 10 Amps on the +5V rail and a corresponding current on the +24V rail, sufficient to power a fully loaded rack.

  • Output Protection: Equipped with over-current and short-circuit protection on the output. In the event of a fault, the supply will safely shut down to protect itself and the connected, costly modules.

• Redundancy Support: While the IC698PSA100 itself is a single module, RX7i racks can often be configured with two power supplies in a redundant configuration using a special power supply carrier or backplane design. In a redundant setup, if one module fails, the other instantly takes over the full load without interrupting system operation.

• Diagnostics & Indication: LED indicators on the front panel provide immediate visual status of input power (“PWR OK”) and output status (“DC OK”).

Key Advantages and Features

1. High Reliability and Stable DC Output: The GE IC698PSA100 is engineered and manufactured to meet GE’s stringent standards for industrial control. Its robust design ensures a long service life and continuous 24/7 operation in environments with temperature variations, vibration, and electrical noise. The clean, stable DC output with minimal ripple is essential for the reliable operation of all connected PLC modules.

2. Compatibility with GE RX7i and 90-70 Systems: This module is a direct replacement and is perfectly compatible with GE’s RX7i and many Series 90-70 PLC racks. Its output specifications and physical design exactly match the power requirements of GE processors (e.g., IC697CPU772, IC698CPE020) and I/O modules, guaranteeing their correct and stable operation. Ordering a GE IC698PSA100 【insert link here】 ensures you receive a component with guaranteed fit and function.

3. Robust Protection Features: Built-in over-current and short-circuit protection prevent a failure in one module from cascading and damaging the valuable CPU or other modules. This increases the overall survivability and fault tolerance of the control system.

4. Ease of Installation and Maintenance: The modular design and standard rack location allow for easy installation or replacement of the IC698PSA100 without disturbing other modules or complex rewiring.

Application Cases and Industry Use

• Metals Industry: In a steel rolling mill control system based on a GE Series 90-70 PLC, a GE IC698PSA100 power supply provides the necessary power to the CPU and numerous I/O racks monitoring and controlling the mill stands, cooling sprays, and conveyors.

• Power Generation: On a combined-cycle power plant, this power supply would be found in the PLC rack managing the balance of plant systems like cooling towers, water treatment, and fuel handling.

• Oil & Gas: In a pipeline control station, a GE IC698PSA100 powers the PLC that manages emergency shutdown valves, pressure monitoring, and communication with the central SCADA system.

• Water/Wastewater Treatment: At a large municipal water treatment facility, this module would be a critical spare part for the PLCs controlling pumps, filters, and chemical dosing systems.

Comparison with Competing Products

In the market for power supplies for GE’s PACSystems and 90-70 platforms, the GE IC698PSA100 has few direct competitors, primarily limited to third-party compatible modules.

• Compared to Third-Party (Compatible) Power Supplies: Some companies may offer “compatible” power supplies that claim to function in GE racks. However, their long-term reliability and performance, especially in critical applications, may not match the original GE product. Using a non-original power supply carries the risk of unstable operation, premature failure, and potential damage to other modules. A genuine GE IC698PSA100 guarantees adherence to original specifications and a known, reliable service life.

• Compared to Refurbished GE Modules: Refurbished modules can be a short-term, cost-effective fix, but their remaining lifespan is uncertain. A genuine, new, or certified-tested module from a reputable supplier is a far safer and more reliable choice for critical infrastructure.

• Compared to a Full System Migration: Replacing an entire aging GE 90-70 or RX7i system with a modern control platform is an alternative, but it involves massive capital expenditure, long engineering and commissioning times, and significant operational disruption. Acquiring a genuine GE IC698PSA100 is often the most practical and economical way to keep a working legacy system operational.

Selection Suggestions and Precautions

1. Precise Model Identification: Before ordering a GE IC698PSA100, verify the full part number, including any suffixes, against the markings on your existing module or the system documentation. Use the exact part number when inquiring with your supplier via the provided link 【insert link here】.

2. Verify Rack Compatibility: Ensure that the IC698PSA100 is compatible with your specific PLC rack model (RX7i or 90-70 series) in terms of mechanical fit and electrical interface.

3. Calculate Power Requirements: Confirm that the output capacity of the IC698PSA100 is sufficient to power all the modules in your rack, with a recommended safety margin of 20-30%.

4. Consider Redundancy Needs: For critical applications, investigate whether your rack supports a redundant power supply configuration. If so, consider purchasing two IC698PSA100 modules to ensure maximum system availability.

5. Choose a Reputable Supplier: To guarantee authenticity and quality, purchase your GE IC698PSA100 only from authorized Emerson distributors (as they now own the GE automation portfolio) or from well-established, reputable companies specializing in industrial automation spare parts. Sourcing through a trusted channel like the one at your link ensures you receive a genuine product with reliable performance.
