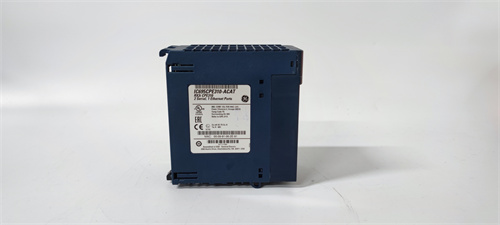

GE IC695CPE310-ABAH – Comprehensive PLC Enhanced Processor Module Introduction

Product Description

Product Parameters

1. Product Model: GE IC695CPE310-ABAH
2. Module Type: Enhanced PLC processor module (GE RX3i PLC compatible)
3. Core Processor: 32-bit dual-core microprocessor, clock frequency up to 1 GHz (enhanced vs. standard model)
4. Program Memory: 4 MB on-board Flash memory (expandable up to 16 MB)
5. Data Memory: 2 MB RAM (with redundant battery backup for critical data retention)
6. Instruction Execution Speed: 0.03 microseconds per basic instruction
7. I/O Capacity: Supports up to 65,536 digital I/O points and 8,192 analog I/O points
8. Built-in Communication Ports: 1 x RS-232 serial port, 1 x USB 2.0 port, 1 x Ethernet auxiliary port (for quick programming)
9. Operating Voltage: DC 5V (powered by PLC backplane)
10. Operating Temperature Range: 0°C to 65°C (extended temperature tolerance)
11. Mechanical Dimensions: 102mm × 152mm × 89mm (length × width × height)
12. Certifications: CE, UL listed, RoHS compliant

Advantages and Features

1. Ultra-Fast 1 GHz Dual-Core Performance: GE IC695CPE310-ABAH is equipped with an upgraded 1 GHz dual-core processor, executing basic instructions in just 0.03 microseconds—outperforming standard models and meeting the demands of high-speed automation processes like robotic precision assembly and continuous bulk production.
2. Massive Expandable Memory Capacity: With 4 MB on-board Flash memory (expandable to 16 MB) and 2 MB redundant battery-backed RAM, GE IC695CPE310-ABAH stores complex control programs, large historical datasets, and real-time logs, while ensuring zero data loss during unexpected power outages.
3. Unmatched I/O Scalability: Supporting up to 65,536 digital and 8,192 analog I/O points, GE IC695CPE310-ABAH scales effortlessly for large distributed automation systems, eliminating the need for multiple processors and reducing system complexity and cost.
4. Enhanced Communication Versatility: The built-in Ethernet auxiliary port, USB 2.0, and RS-232 ports simplify programming, debugging, and on-site maintenance, enabling fast connection to laptops, HMIs, and diagnostic tools for efficient system management.
5. Extended Environmental Adaptability: The 0°C to 65°C operating temperature range and ruggedized circuit design allow GE IC695CPE310-ABAH to operate reliably in extreme industrial conditions, from high-temperature manufacturing workshops to low-temperature utility facilities.

Application Cases in Application Fields

1. Electric Vehicle Mega-Factory: A leading North American EV manufacturer integrated GE IC695CPE310-ABAH into its battery gigafactory production line. The processor coordinated 60+ collaborative robots, 12,000 digital I/O points, and 3,000 analog sensors, reducing battery module assembly cycle time by 32% and improving production yield by 20%.
2. Smart Grid Control Center: A European power utility company deployed GE IC695CPE310-ABAH in its regional grid management system. The module processed data from 50+ substations (25,000 remote I/O points), enabling real-time load balancing, fault detection, and emergency response, cutting grid downtime by 35%.
3. Petrochemical Refinery Automation: An Asian petrochemical plant adopted GE IC695CPE310-ABAH for its crude oil distillation control system. The processor’s high I/O capacity managed 8,000 digital actuators and 4,000 analog process sensors, ensuring stable operation of distillation towers and complying with strict environmental emission standards.
4. High-Speed Pharmaceutical Packaging: A global pharmaceutical company used GE IC695CPE310-ABAH in its blister packaging line. The processor’s ultra-fast instruction speed synchronized pill counting, sealing, and batch tracing processes, increasing packaging throughput by 28% and meeting FDA traceability requirements.

Comparisons with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

1. Match GE RX3i Ecosystem: Prioritize GE IC695CPE310-ABAH if your system uses GE RX3i PLCs, as it guarantees seamless integration with RX3i I/O, communication, and safety modules, maximizing existing hardware investment value.
2. Assess Large-Scale Automation Needs: Choose GE IC695CPE310-ABAH for applications requiring massive I/O capacity and high processing speed, such as gigafactories, smart grids, and large-scale process plants.
3. Prioritize Critical Data Reliability: Opt for GE IC695CPE310-ABAH in mission-critical systems (e.g., energy, chemicals) where redundant battery-backed RAM is essential to prevent data loss and production disruptions.
4. Evaluate Extreme Environment Use: Select GE IC695CPE310-ABAH for setups with temperature variations up to 65°C, as its extended operating range outperforms standard processors in harsh conditions.

Precautions

1. Redundant Battery Maintenance: Regularly check and replace the dual backup batteries of GE IC695CPE310-ABAH (recommended every 2 years) to ensure uninterrupted critical data retention during power outages.
2. Backplane Power Stability: Ensure the RX3i chassis provides stable DC 5V power to GE IC695CPE310-ABAH, as voltage fluctuations can cause processor malfunctions or program corruption.
3. Program Backup Protocol: Implement regular backups of the control program and data stored in GE IC695CPE310-ABAH to external storage, preventing loss from module failures or firmware updates.
4. Anti-Static Handling: Use anti-static gloves when installing or removing GE IC695CPE310-ABAH, as electrostatic discharge can damage the processor’s internal microcomponents and lead to permanent failure.
