GE IC660ELB912

Description

📦 Product Description

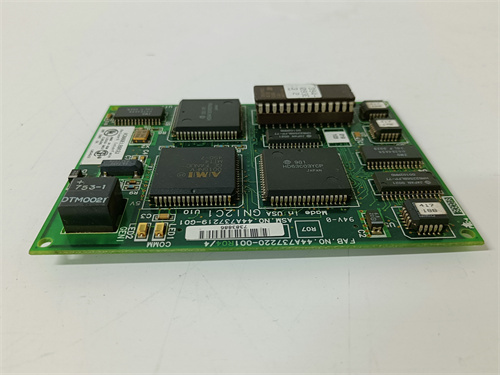

GE IC660ELB912 is a dedicated Genius I/O Bus Controller module designed by General Electric for the Series 90-70 programmable logic controller platform. This module serves as the master interface between the PLC CPU and remote Genius I/O blocks, allowing distributed I/O architectures across industrial facilities. The GE IC660ELB912 mounts directly into the Series 90-70 rack and communicates with up to 31 Genius I/O blocks, field control units, or compatible third-party devices over a single twisted-pair cable. This bus controller implements the full Genius communications protocol, providing deterministic, high-speed data exchange with remote I/O stations located up to 2,300 meters from the controller. The GE IC660ELB912 is widely used in legacy GE automation systems and remains a critical spare part for maintaining operational continuity in industries such as automotive, water treatment, and material handling.

⚙️ Technical Parameters

🚀 Advantages and Features

The GE IC660ELB912 offers several distinctive characteristics that have made it the backbone of distributed I/O architectures in GE control systems:

• Distributed I/O Architecture: The GE IC660ELB912 enables placement of I/O modules directly at the machine or process location, dramatically reducing field wiring costs and simplifying troubleshooting. Instead of running hundreds of individual sensor cables back to the central control room, a single twisted-pair cable connects the bus controller to remote Genius blocks.

• Deterministic Communications: Unlike Ethernet-based industrial networks, the Genius Bus protocol used by GE IC660ELB912 provides fully deterministic, repeatable scan times regardless of network load. This makes it ideal for high-speed applications requiring consistent I/O update rates, such as packaging lines and transfer machines.

• Comprehensive Diagnostics: The GE IC660ELB912 continuously monitors the health of each connected Genius block. Diagnostic information includes block status, communications errors, power supply status, and field wiring integrity. This data is directly accessible to the PLC program and can be displayed on HMI screens for rapid troubleshooting.

• Hot Standby Redundancy: The GE IC660ELB912 supports dual bus controller configurations with automatic failover. In redundant systems, a secondary bus controller maintains synchronization with the primary unit and assumes control within one scan if the primary controller fails or is removed for maintenance.

• Long-Distance Capability: With a maximum range of 2,300 meters (7,500 feet), the GE IC660ELB912 can control remote I/O blocks located in different buildings or at opposite ends of large manufacturing facilities without requiring repeaters or fiber optic converters.

• Flexible Configuration: Bus parameters including scan time, station addresses, and data mapping can be configured either via on-board DIP switches or through software using Logicmaster 90-70 or Proficy Machine Edition. This flexibility simplifies both initial commissioning and field retrofits.

• Broad Compatibility: The GE IC660ELB912 works with the entire Genius I/O family, including IC660 (standard density), IC670 (high density), and IC693 (Series 90-30) Genius blocks, as well as third-party devices supporting the Genius Bus protocol.

🏭 Application Cases by Industry

The GE IC660ELB912 has been deployed across thousands of industrial facilities worldwide and remains essential for maintaining legacy GE automation systems:

1. Automotive Manufacturing: On body welding and assembly lines, GE IC660ELB912 controllers manage hundreds of remote I/O blocks located inside robotic work cells. Each welding station has its own Genius block handling proximity sensors, solenoid valves, and weld controllers, all communicating back to a central Series 90-70 PLC over a single bus cable.

2. Water and Wastewater Treatment: Municipal water treatment plants utilize GE IC660ELB912 to control remote pumping stations, filter buildings, and chemical dosing facilities located hundreds of meters apart. The long-distance capability eliminates the need for multiple PLC systems or expensive fiber optic conversions.

3. Material Handling and Warehousing: High-speed sortation systems and automated storage/retrieval systems employ GE IC660ELB912 to control photo-eyes, barcode scanners, and motor starters distributed along thousands of feet of conveyor lines.

4. Food and Beverage Processing: On bottling and packaging lines, GE IC660ELB912 connects remote I/O blocks mounted directly on filling machines, labelers, and case packers, minimizing wiring and simplifying changeovers.

5. Chemical Processing: In batch chemical manufacturing, the bus controller manages I/O blocks located in hazardous areas through intrinsic safety barriers, maintaining separation between the safe area PLC and field devices in classified locations.

6. Metals and Mining: On continuous casters and rolling mills, GE IC660ELB912 provides reliable I/O communications in environments with extreme electromagnetic interference where Ethernet-based systems would experience frequent communications failures.

⚔️ Competitor Comparison

In the distributed I/O bus controller market for PLC systems, direct competitors to the GE IC660ELB912 include Siemens ET 200M interface modules, Rockwell Remote I/O scanners, and Schneider Quantum RIO modules.

Conclusion: The GE IC660ELB912 remains the most cost-effective solution for maintaining existing GE Genius I/O installations. While newer systems offer higher data rates (PROFIBUS DP at 12 Mbps), the deterministic nature and proven reliability of the Genius Bus protocol keep these systems operating successfully decades after installation. The Siemens IM 153-2 provides superior speed but requires complete replacement of existing Genius I/O blocks with PROFIBUS DP devices. Rockwell 1747-SN offers longer distance capability but lower data rates and no redundancy support. The GE IC660ELB912 excels in applications requiring proven reliability, long-distance capability, and comprehensive per-block diagnostics at minimal cost.

📝 Selection Recommendations and Precautions

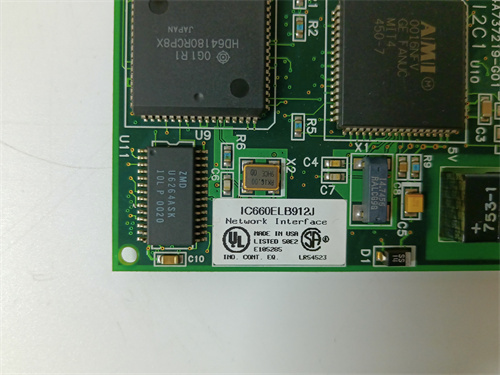

1. Model Verification: When ordering GE IC660ELB912, verify the exact model number suffix. Variants include IC660ELB912 (standard), IC660ELB912C (conformal coated for harsh environments), and IC660ELB912J (Japan market version). Confirm your existing module’s part number before purchasing via the provided product link.

2. Firmware Version Compatibility: Different versions of GE IC660ELB912 contain varying firmware revisions. Later revisions (Rev F and above) support enhanced diagnostics and are compatible with newer Genius blocks (IC670 series). Earlier revisions may not recognize certain high-density I/O blocks. Check firmware version on the module label.

3. Bus Termination Requirements: The Genius Bus requires termination resistors at both physical ends of the bus cable. The GE IC660ELB912 has a built-in switchable termination resistor for the controller end. Failure to properly terminate the bus is the single most common cause of intermittent communications and “Bus Fault” indications.

4. Station Address Assignment: Each Genius block on the bus must have a unique station address (0-31). The GE IC660ELB912 itself typically occupies address 31. Address conflicts cause complete bus failure. Document all station addresses and physically label each Genius block with its configured address.

5. Cable Specification: Use only approved Genius Bus cable (GE part number IC660CBL930 or Belden 9463 equivalent). Standard instrument cable does not meet the characteristic impedance requirements (120 ohms) and will cause signal reflections and data errors. Maximum bus length is reduced when using non-specification cable.

6. Power Supply Considerations: The GE IC660ELB912 draws 1.2 A from the +5 VDC backplane supply. Ensure your Series 90-70 power supply (IC697PWR series) has sufficient capacity for all rack modules combined. Marginal backplane power is a common cause of intermittent bus controller faults.

7. Grounding and Shielding: The Genius Bus cable shield must be grounded at one end only—typically at the GE IC660ELB912 end. Dual-ended grounding creates ground loops and induces noise into the communications signal. Use insulated grounding blocks to maintain single-point ground discipline.

8. Environmental Considerations: The GE IC660ELB912 is rated 0°C to +60°C. In applications requiring operation below freezing, specify the conformal coated version (IC660ELB912C) or maintain cabinet heating. Condensation forming on the module during temperature transitions causes intermittent shorts and corrosion.

9. Redundant System Configuration: When implementing redundant bus controller pairs, both GE IC660ELB912 modules must be identical revision levels. Mixing different firmware revisions in a redundant pair causes synchronization errors and unplanned failovers.

10. Spare Parts Storage: Given that the GE IC660ELB912 is a mature product, maintaining spare modules is critical for production continuity. Store spare modules in original anti-static packaging in a climate-controlled environment (15-25°C, <60% humidity). Long-term storage at temperature extremes degrades electrolytic capacitors.

11. Compatibility with RX7i Systems: While primarily designed for Series 90-70, the GE IC660ELB912 can be used with RX7i controllers when installed in compatible Series 90-70 racks (IC697CHSxxx) connected to the RX7i via bus expansion modules. Direct installation in RX7i racks is not supported.

12. Authenticity and Provenance: Due to the age of the Genius I/O product line, the secondary market contains many refurbished GE IC660ELB912 modules of varying quality. Signs of poor refurbishment include non-original labels, flux residue on solder joints, and swollen electrolytic capacitors. Purchase only from reputable suppliers with proven testing procedures and warranty coverage. Use the provided product link to verify current inventory and supplier credibility.
