GE IC3645LXCD1

Description

Product Description

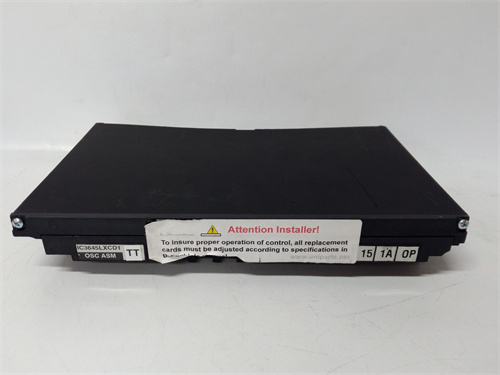

The GE IC3645LXCD1 is a specialized motor controller module from GE’s IC3645 series, designed specifically for electric vehicle traction control and industrial vehicle applications. This series of controllers is widely used in material handling equipment such as forklifts, pallet jacks, reach trucks, and other battery-powered industrial vehicles. The core function of the GE IC3645LXCD1 is to control the speed, direction, and acceleration of DC series or permanent magnet motors used in electric vehicles. It receives commands from the operator controls (throttle, forward/reverse switch) and provides precise pulse-width modulated (PWM) output to the motor, enabling smooth acceleration, controlled deceleration, and efficient operation. The “LXCD1” suffix indicates specific configuration options including voltage rating, current capacity, and feature set. Engineered for the demanding environments of industrial material handling, the GE IC3645LXCD1 features robust construction, comprehensive protection features, and reliable performance.

Product Parameters

• Model Number: GE IC3645LXCD1

• Type: Electric Vehicle Traction Motor Controller

• Series: GE IC3645

• Application: Forklifts, pallet jacks, reach trucks, and other industrial vehicles

• Motor Type: DC series or permanent magnet motors

• Voltage Rating: Typically 24V, 36V, or 48V DC (specific to configuration)

• Current Rating: Continuous and peak current ratings based on specific model

• Control Method: Pulse Width Modulation (PWM) for smooth motor control

• Features: Regenerative braking, anti-rollback, creep speed, and programmable parameters

• Protection: Overcurrent, overtemperature, undervoltage, and short circuit protection

• Diagnostics: LED status indicators for troubleshooting

• Communication: May include serial communication for programming and diagnostics

• Mounting: Chassis mount in vehicle

• Operating Temperature: Industrial range (typically -40°C to +50°C)

• Certification: UL, CSA, applicable industry standards

Advantages and Features

The primary advantage of the GE IC3645LXCD1 lies in its specialized design for electric vehicle traction applications. Using the GE IC3645LXCD1, material handling equipment manufacturers can provide smooth, precise control of forklifts and other vehicles, enhancing operator productivity and safety. The controller’s regenerative braking feature captures energy during deceleration, extending battery life and reducing brake wear. Programmable parameters allow the GE IC3645LXCD1 to be customized for specific vehicle types and operator preferences. Comprehensive protection features safeguard the controller and motor from damage due to overloads, overheating, or other fault conditions. The robust construction ensures reliable operation in the demanding environments of warehouses and industrial facilities.

Application Cases in Application Fields

The GE IC3645LXCD1 finds extensive application in material handling and industrial vehicle applications.

• Electric Forklifts: In warehouse forklifts, the GE IC3645LXCD1 provides smooth acceleration and precise control for lifting and maneuvering loads, with regenerative braking improving energy efficiency.

• Pallet Jacks: In electric pallet jacks, the controller enables precise speed control for safe operation in narrow aisles and loading docks.

• Reach Trucks: In reach truck applications, the GE IC3645LXCD1 provides the precise control needed for high-level stacking operations.

• Tuggers and Tow Tractors: In industrial tuggers, the controller delivers the torque needed for pulling heavy loads while maintaining smooth operation.

• Personnel Carriers: In golf carts and personnel carriers, the GE IC3645LXCD1 provides comfortable acceleration and deceleration for passenger comfort.

Comparison with Competing Products

When compared to similar traction motor controllers from other manufacturers such as Curtis Instruments or Sevcon, the GE IC3645LXCD1 offers specific advantages for users invested in GE’s material handling ecosystem. It provides proven reliability and performance in a wide range of industrial vehicle applications. For facilities with existing equipment using GE controllers, the GE IC3645LXCD1 offers a familiar platform for maintenance and troubleshooting. The controller’s comprehensive protection features and robust construction contribute to long service life in demanding applications.

Selection Suggestions and Precautions

When selecting the GE IC3645LXCD1 for your application, first verify that the voltage and current ratings match your vehicle’s motor and battery system requirements. Confirm that the controller’s feature set (regenerative braking, creep speed, etc.) meets your application needs. When installing the GE IC3645LXCD1 in a vehicle, follow all safety procedures and ensure proper mounting for heat dissipation. Pay careful attention to wiring, using appropriately sized cables and ensuring secure connections. Program the controller parameters according to your vehicle specifications using the appropriate programming tool. After installation, thoroughly test all vehicle functions including acceleration, braking, and safety features. For fleet operations, maintain spare GE IC3645LXCD1 controllers to minimize vehicle downtime in case of failure.
