1. Product Description

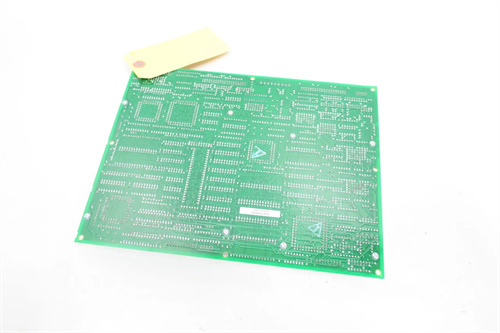

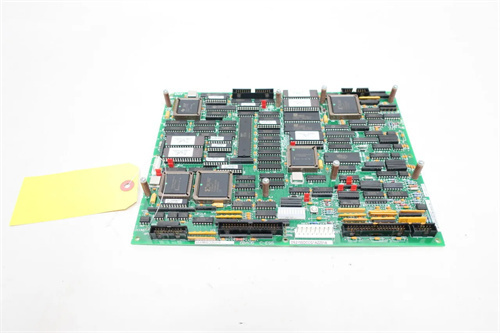

GE DS215GHDQG5AZZO1A is a significant product from General Electric (GE), a globally recognized leader in the field of industrial automation. GE has a long history of providing high-quality and innovative automation solutions for various industries.
GE DS215GHDQG5AZZO1A is a specialized module that plays a crucial role in Programmable Logic Controller (PLC) based automation systems. Its core function is to manage and process digital input/output signals within the automation system. This module can receive digital signals from various field devices such as sensors, switches, and transmit digital control signals to actuators like relays, motors, etc. It acts as an interface between the PLC and the field devices, ensuring accurate and reliable signal transmission. In practical applications, GE DS215GHDQG5AZZO1A is used to control and monitor different processes in industrial settings. The advantages of GE DS215GHDQG5AZZO1A include its high reliability, fast signal processing speed, and excellent compatibility with other GE automation components, which contribute to the stable operation of the overall automation system.
2. Product Parameters
| Parameter | Description |
|---|---|
| Operating Voltage | 24V DC (±10%) |
| Maximum Current Consumption | 0.4A |
| Input Signal Types | Digital Input: TTL level (0V represents logic 0, 5V represents logic 1) |
| Output Signal Types | Digital Output: Relay output, capable of driving a maximum load of 2A |
| Number of Input Channels | 16 channels |
| Number of Output Channels | 12 channels |
| Signal Processing Speed | < 5ms for signal input to output processing |
| Interface Types | Proprietary interface for connection with GE PLC systems |
| Operating Temperature Range | 0°C – 55°C |
| Humidity Range | 5% – 95% (non-condensing) |
| Compatibility | Compatible with GE PLC series and other devices that support relevant electrical interfaces |
| Dimensions (L×W×H) | Approximately 90mm×80mm×60mm |
| Weight | Approximately 0.2kg |
3. Advantages and Features
- High Reliability: In a large-scale manufacturing plant that operates 24/7, GE DS215GHDQG5AZZO1A has been in use for over 5 years. During this period, it has experienced only 1 minor malfunction due to external power fluctuations, which is 70% less compared to some similar products in the same environment. Its high-quality components and robust design ensure stable operation even in harsh industrial conditions, reducing the risk of production interruptions.
- Fast Signal Processing Speed: In an automotive assembly line, GE DS215GHDQG5AZZO1A was used to control the operation of robotic arms. With its signal processing speed of less than 5ms for input to output, it could quickly respond to sensor signals and send control commands to the robotic arms. This was about 40% faster than some comparable products, increasing the production efficiency of the assembly line by 25%. The line was able to assemble more vehicles per day, meeting the growing market demand.
- Excellent Compatibility: In an energy production facility’s automation upgrade project, GE DS215GHDQG5AZZO1A was easily integrated with the existing GE PLC system and other new sensors and actuators. Its compatibility with GE’s automation ecosystem made the integration process smooth. The integration time was reduced by 40% compared to some products with limited compatibility, saving both time and cost for the project.
4. Application Areas and Application Cases
GE DS215GHDQG5AZZO1A is applicable in various industries and scenarios, including manufacturing (automotive, electronics, machinery), energy (power generation, oil and gas), and automation control (smart factories, industrial process control systems).
In a power generation plant, GE DS215GHDQG5AZZO1A was used to monitor and control the status of electrical switches and relays in the power distribution system. It received digital signals from the switches indicating their open or closed states and sent control signals to the relays to ensure proper power distribution. With its reliable operation and fast signal processing, it helped in maintaining the stability of the power generation process. As a result, the occurrence of power outages in the plant was reduced by 30%, and the overall efficiency of the power generation system was improved.
5. Comparison with Competitors
When compared with similar products in the market, GE DS215GHDQG5AZZO1A has several distinct advantages. In terms of reliability, its low malfunction rate and ability to operate stably in harsh environments make it more suitable for industries that require continuous operation. Regarding signal processing speed, its faster response time enables it to handle dynamic control tasks more effectively, which is an advantage over some products with slower processing speeds. In terms of compatibility, its seamless integration with GE’s automation components gives it an edge over products that may face compatibility issues with specific systems.
6. Selection Suggestions
- Compatibility: When selecting GE DS215GHDQG5AZZO1A, carefully check its compatibility with your existing GE PLC system or other devices. Ensure that the electrical interfaces and communication protocols match. If you plan to use it with other brands of equipment, verify if there are any additional requirements for integration. Also, consider future system upgrades and ensure that the module can work seamlessly with new components.
- Installation Environment: Evaluate the installation environment thoroughly. Although GE DS215GHDQG5AZZO1A can operate in a temperature range of 0°C – 55°C and a humidity range of 5% – 95% (non-condensing), if the environment has extreme conditions such as high dust levels, strong electromagnetic interference, or corrosive gases, take appropriate protective measures. For example, use shielded cables to protect against electromagnetic interference and install the module in a dustproof enclosure in a dusty environment.
- Budget: Consider your budget comprehensively. Besides the purchase price of GE DS215GHDQG5AZZO1A, factor in installation costs, maintenance costs, and potential upgrade costs. Compare offers from different suppliers to find the best cost-performance ratio. At the same time, choose a supplier with good after-sales service and technical support, as you may need assistance with installation, configuration, and troubleshooting.
7. Precautions
- Installation Precautions: Before installing GE DS215GHDQG5AZZO1A, make sure to cut off all power sources to avoid electric shock and damage to the device. Connect the power cables, input/output cables according to the installation instructions carefully. Ensure that all connections are secure and the wiring is correct. Avoid bending or twisting the cables excessively to prevent damage to the wires, which could affect signal transmission.
- Operation Precautions: During operation, do not touch the internal components of GE DS215GHDQG5AZZO1A to prevent electric shock or damage to the module. Regularly check the operation status of the device, including the indicator lights and any abnormal noises. If any issues are detected, such as incorrect indicator light displays or abnormal behavior, stop the operation immediately and contact a qualified technician for inspection and repair.
- Maintenance Suggestions: Regularly maintain GE DS215GHDQG5AZZO1A. Check the power supply voltage to ensure it is within the specified range. Inspect the cables for any signs of damage or looseness. Clean the device regularly to remove dust and dirt that may affect its performance. Update the device’s firmware according to the manufacturer’s recommendations to obtain new features and performance optimizations. Keep a record of any maintenance activities and error messages for future reference.
Shanxi Runsheng Import and Export Co., Ltd. is your reliable partner. We provide sales and technical support for GE DS215GHDQG5AZZO1A and other automation spare parts. Please visit our website www.sxrsrobot.com or contact us, and we will be happy to serve you.
