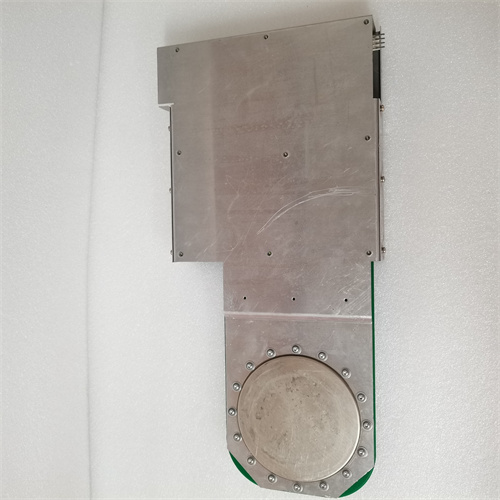

ABB 5SHY35L4503 3BHB004693R0001 3BHB004692R0002 5SXE01-0127

¥10,999.00

Product Parameters

Technical parameters of ABB 5SHY35L4503 3BHB004693R0001 3BHB004692R0002 5SXE01-0127 (detailed data in official documentation at:

GE DS200AAHAH1ADC

¥999.00

The GE DS200AAHAH1ADC is a high-density analog input board manufactured by General Electric for the Mark V series turbine control system. This variant includes the suffix “C” (or possibly “ADC” as a combined revision code), indicating specific component enhancements, extended temperature range, or firmware improvements over the base GE DS200AAHAH1A model. The GE DS200AAHAH1ADC is a dedicated analog input-only board designed for applications requiring a large number of measurement channels. With 32 analog inputs, the GE DS200AAHAH1ADC is the preferred choice for turbine exhaust temperature monitoring, bearing temperature scanning, vibration analysis, and generator condition monitoring. Within the Mark V architecture, the GE DS200AAHAH1ADC installs into a standard I/O rack slot and communicates with the main processor via the proprietary backplane bus. As a legacy GE spare part, the GE DS200AAHAH1ADC remains critical for maintaining operational gas and steam turbines in power generation, oil & gas, and industrial facilities.

):



  • Electrical characteristics:
    • Device type — high-power IGBT module;
    • Rated voltage — 3300 V;
    • Continuous collector current (Tc = 85°C) — 450 A;
    • Maximum pulse current — 1200 A (10 ms);
    • Switching frequency — up to 10 kHz.
  • Thermal characteristics:
    • Thermal resistance (junction to case) — 0.08 K/W;
    • Maximum junction temperature — 150°C;
    • Cooling method — liquid-cooled (water-glycol mixture).
  • Mechanical and protective features:
    • Isolation voltage — 6000 V AC;
    • Protection functions — overcurrent, overvoltage, overtemperature (with integrated temperature sensor);
    • Weight — approximately 1.6 kg.
  • Operational parameters:
    • Operating temperature range (ambient) — -40°C to +85°C;
    • Mean time between failures (MTBF) — ≥1,400,000 hours;
    • Certification — IEC 60747, UL recognized.
Category:

Description

Product Description

First, let’s look at the high-power IGBT module from ABB — model 5SHY35L4503 3BHB004693R0001 3BHB004692R0002 5SXE01-0127, designed for use in voltage conversion systems and high-power industrial drives. This device belongs to ABB’s range of robust power electronic components, widely used in energy, railway transport, and heavy industry, where reliable operation under high currents and voltages is required.



ABB 5SHY35L4503 3BHB004693R0001 3BHB004692R0002 5SXE01-0127 combines high current handling capability with low energy losses, making it ideal for applications such as frequency converters in wind turbines and traction converters in electric locomotives. Its robust design ensures stable performance even in harsh industrial environments, including high temperatures and electromagnetic interference.



Notably, ABB 5SHY35L4503 3BHB004693R0001 3BHB004692R0002 5SXE01-0127 features integrated protection mechanisms against overcurrent, overvoltage, and overtemperature, significantly enhancing the safety and longevity of the entire system. The module is also designed for easy integration into existing ABB converter systems, reducing installation and maintenance time. Comprehensive information about ABB 5SHY35L4503 3BHB004693R0001 3BHB004692R0002 5SXE01-0127, including technical specifications and installation guides, can be found at the link:
