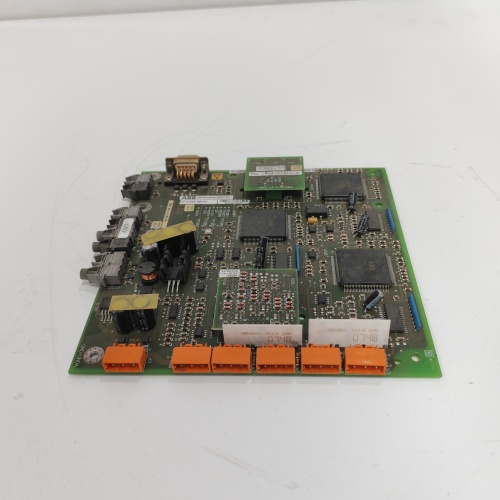

Description
Parameters
| Parameter | Specification |
|---|---|
| Output Channels | 8, single-ended (isolated) |
| Output Ranges | 0–20mA, 4–20mA, 0–10V (software selectable per channel) |
| Resolution | 16-bit DAC |
| Accuracy | ±0.1% FS at 25°C; ±0.2% over -40°C to +70°C |
| Load Range (Current) | 0–750Ω (at 24V supply) |
| Load Range (Voltage) | ≥2kΩ |
| Output Ramping | Programmable: 0.1–100% per second (per channel) |
| Protection | Short-circuit protection, over-temperature shutdown, reverse polarity |
| Diagnostics | Open-load detection, short-circuit detection, over-temperature, output state readback |
| Isolation | 1500Vrms (output-to-backplane); 500VDC (channel-to-channel) |
| Update Rate | 1ms (deterministic) |
| Power Supply | 24VDC, 300mA + output load |
| Operating Temp | -40°C to +70°C |
| Mounting | Eurocard (6U, 160mm) |
| Certifications | UL, CSA, ATEX Zone 2, SIL 2 capable |
Advantages & Features
-
High Channel Density – 8 analog outputs in a single slot, reducing rack space and simplifying wiring.
-
Versatile Output Ranges – Per-channel configurable for current or voltage signals, accommodating mixed actuator types.
-
Programmable Output Ramping – The ABB 3BHE006412R0101 UFC762AE101 allows per-channel ramping to prevent sudden valve or actuator movements.
-
Comprehensive Diagnostics – Continuous open-load, short-circuit, and over-temperature detection with fault reporting to the controller.
-
SIL 2 Capable – Suitable for safety-critical applications with appropriate proof-testing and external voting.
-
High Resolution – 16-bit DAC ensures precise control for fuel valves, IGV actuators, and process control valves.
Application Cases
-
Gas Turbine Fuel Control – The ABB 3BHE006412R0101 UFC762AE101 drives fuel control valves (4–20mA) with programmable ramping to ensure smooth fuel changes during startup and load transients.
-
Steam Turbine Valve Positioning – Controls HP/IP control valves with 4–20mA signals, with ramping to reduce thermal stress.
-
Generator Excitation Control – Provides control signals to the excitation system for voltage regulation.
-
IGV Actuator Control – Drives inlet guide vane actuators with 0–10V signals in gas turbine compressor control.
Competitor Comparison
| Feature | ABB 3BHE006412R0101 | Siemens 6ES7332-5HF00 | GE DS3828BH5A | Rockwell 1756-OF8 |
|---|---|---|---|---|
| Output Channels | 8 | 8 | 5 | 8 |
| Output Ranges | 0–20mA, 4–20mA, 0–10V | 0–20mA, 4–20mA, 0–10V | 4–20mA only | 0–20mA, 4–20mA, 0–10V |
| Programmable Ramping | Yes (per channel) | No | No | No |
| Load Range (Current) | 0–750Ω | 0–750Ω | 100–750Ω | 0–750Ω |
| Accuracy | ±0.1% | ±0.1% | ±0.1% | ±0.1% |
| SIL Rating | SIL 2 | SIL 1 | SIL 1 | SIL 1 |
| Integration | ABB System 800xA | Siemens TIA | GE Mark VIe | Rockwell Logix |
The ABB 3BHE006412R0101 UFC762AE101 is distinguished by its built-in output ramping feature and SIL 2 capability, not offered by GE or Rockwell in standard analog output modules.
Selection Suggestions
-
Choose for ABB System 800xA applications requiring 8 high-precision analog outputs with programmable ramping for smooth actuator control.
-
If ramping is not required, the lower-cost UFC762AE101-NR (non-ramping variant) may be sufficient.
-
For SIL 2 applications, use with external voting logic and periodic proof-testing (every 24 months).
-
Verify actuator load requirements: current outputs support up to 750Ω; voltage outputs require ≥2kΩ.
-
Pair with matching ABB TU810 or TU830 termination unit.
Precautions
-
Output Load – For current mode, ensure total loop resistance (including wiring) does not exceed 750Ω at 24V supply.
-
Output Ramping – Set ramping times based on actuator response to avoid overshoot or instability. Start with 10% per second and adjust.
-
Short-Circuit Protection – The module limits current to 30mA per channel. Sustained shorts will cause thermal shutdown.
-
Grounding – Outputs share a common return. For isolated actuators, use external isolators.
-
Power Supply – The ABB 3BHE006412R0101 UFC762AE101 draws 300mA plus output load. Ensure adequate capacity.
-
Calibration – Factory calibration valid for 24 months. Recalibrate using precision multimeter (0.01% accuracy).
-
ESD Handling – Use ESD-safe practices when handling the module.
