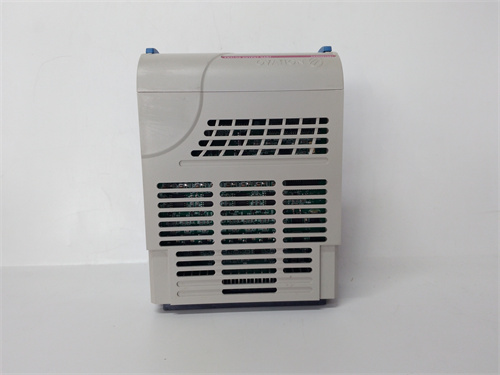

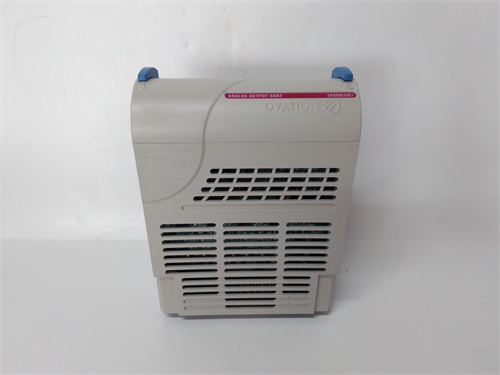

5X00062G01

Description

‌Parameters and Specifications‌:

–‌Model Number‌: 5X00062G01
–‌Manufacturer‌: Emerson or Westinghouse (5X series is associated with Westinghouse)12
–‌Type‌: Analog Output PLC (Programmable Logic Controller) Module13
–‌Input Voltage Range‌: 12-48VDC13
–‌Output Voltage Range‌:

• 5VDC (in some specifications)13
• 4 mA to 20 mA (as an analog output range)2
  –‌Output Current‌: Max 10A13
  –‌Efficiency‌: Greater than 90%13
  ‌Dimensions and Weight‌:

–‌Dimensions‌:

170mm x 105mm x 32mm

Some sources mention 102mm x 61mm x 32mm, possibly indicating a variation or error
–‌Weight‌: Approximately 120g

‌Series‌:

• Part of Westinghouse’s 5X series of Hart analog output modules2
  ‌Features‌:

–‌High Precision‌: Offers precision analog output with accuracy up to ±0.1%FS2
–‌High Resolution‌: 12-bit resolution for precise control2
–‌Fast Response Time‌: Less than 250 ms response time2
–‌Wide Operating Temperature Range‌: Suitable for operation from -40°C to 85°C23
–‌IP67 Protection‌: High protection rating for use in harsh industrial environments24
‌Functions and Applications‌:

–‌Industrial Automation‌: Converts PLC internal digital or analog signals into analog output signals to control external devices like actuators and regulators1
–‌Process Control‌: Essential in industrial processes requiring precise control of various parameters and flows1
–‌Wide Range of Industries‌: Used in industries such as manufacturing, energy management, water treatment, and oil and gas1
–‌Enhanced Efficiency‌: Helps in monitoring and controlling energy production and distribution systems, leading to efficient energy usage and reduced emissions
