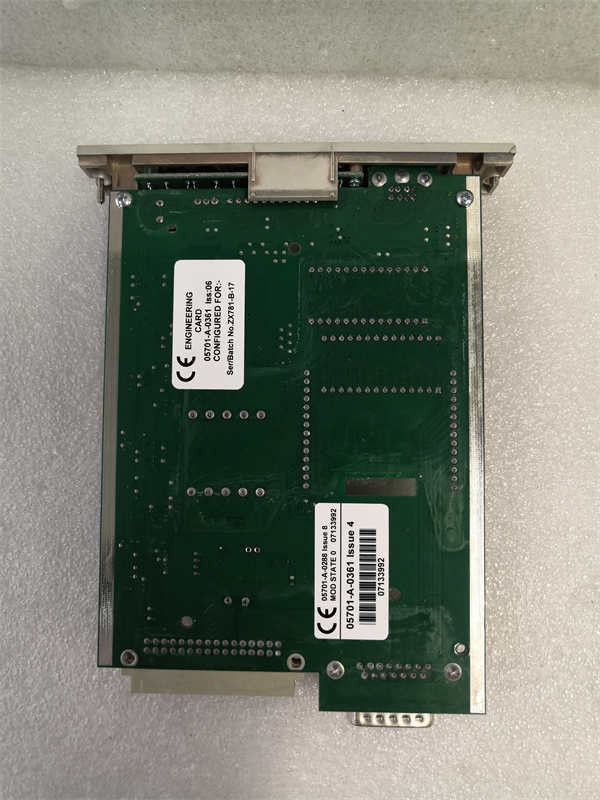

05701-A-0361

Description

‌Parameters & Specifications‌:
–‌Model Number‌: 05701-A-0361
–‌Manufacturer‌: Honeywell12
–‌Type‌: Automation Module, possibly an Energy Control Module or a Controller Circuit Board12
–‌Input Voltage‌: Depending on the version, it can be 18V to 32V DC or 24V DC, with an input voltage range of 100-240VAC for some configurations42
–‌Power Consumption‌: 1.5W (typical)4
–‌Current & Voltage‌: For certain configurations, 24 mA current and 240V voltage1
‌Dimensions & Weight‌:
–‌Dimensions‌: Approximately 17cm x 2.5cm x 13.2cm (L x W x H) according to one source, but another source mentions 115mm x 48mm x 150mm
–‌Weight‌: Ranges from 0.152kg to approximately 1.2kg, depending on the specific configuration

‌Series‌:

• Part of Honeywell’s range of automation and control systems, possibly within the TDC Series, QCS Series, or S9000 Series Spare Parts5
  ‌Features‌:
  –‌Self-Validation‌: Able to self-validate circuit component, software, and backplane communication operations46
  –‌Communication Protocols‌: Supports RS-232 and possibly RS-485, CAN for data exchange with other devices6
  –‌Flexibility‌: Configurable through programming to adapt to various control systems and device requirements6
  –‌Stability & Reliability‌: High stability and reliability for long-term operation in industrial environments6
  –‌Safety Protection‌: Incorporates safety features to prevent accidents and equipment damage6
  –‌Environmental Tolerance‌: Designed to withstand high temperatures, humidity, and vibration6
  ‌Functions & Applications‌:
  –‌Signal Processing‌: Capable of receiving and transmitting discrete signals such as switch states and sensor detections6
  –‌Automation‌: Widely applicable in various industrial automation scenarios6
  –‌Power Control‌: Potentially used in power management and control systems, such as in power plants
