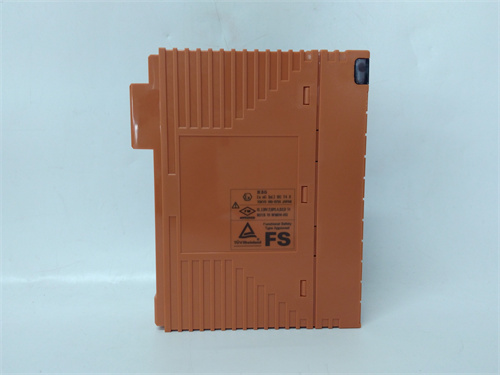

Yokogawa SDV531-S23

Description

1. Product Overview

2. Product Parameters

2.1 Core Output Specifications

• Output Channels: 16 Form C (SPDT) relay channels (4 channels per group, galvanic isolation between groups)
• Relay Ratings:
  • Resistive Load: 250V AC/5A, 30V DC/5A
  • Inductive Load: 250V AC/2A, 30V DC/2A (with surge suppression for inductive loads)
• Contact Life: Mechanical ≥10 million operations, Electrical ≥100,000 operations (at rated load)
• Response Time: ≤10ms (coil energization to contact closure)
• Isolation Rating: 2500V AC between channel groups, 3000V AC between module and backplane

2.2 Electrical & Communication Parameters

• Power Supply: 24V DC (supplied by CENTUM VP/ProSafe-RS I/O rack), power consumption ≤8W
• Backplane Interface: Yokogawa V-net/IP (for CENTUM VP) or Safe Ethernet (for ProSafe-RS), 100Mbps
• Diagnostic Features: Coil open/short detection, contact weld monitoring, module self-test (BIT), fault status feedback to DCS/SIS
• LED Indicators: Per-channel output status (ON/OFF), module power, fault, and communication status
• Safety Configuration: Configurable fail-safe state (energize-to-operate or de-energize-to-operate)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -10°C to +60°C (industrial-grade range), derating above 55°C
• Storage Temperature: -25°C to +70°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection
• Vibration Resistance: 5-2000Hz, 2g (IEC 60068-2-6, X/Y/Z axes)
• Shock Resistance: 15g (11ms half-sine wave, IEC 60068-2-27)
• Mounting: Yokogawa CENTUM VP/ProSafe-RS I/O rack-mounted, hot-swappable (plug-in module)
• Dimensions: 48.3mm (W) × 220mm (H) × 180mm (D), standard rack compatibility

2.4 Certifications & Compatibility

• Safety Certifications: SIL 2 (IEC 61508/61511), TÜV Rheinland, ATEX Zone 2 (Ex nA IIC T4)
• Industry Certifications: CE, UL/cUL Class 1 Div 2, FCC Class A, RoHS
• Compatibility: Yokogawa CENTUM VP CP401/CP402 controllers, ProSafe-RS SIS modules, Yokogawa AI/AO modules (e.g., AAI543)
• MTBF: ≥800,000 hours (per Telcordia SR-332 standards)

3. Advantages & Features

1. Isolated Channel Design: Yokogawa SDV531-S23 features galvanic isolation between channel groups, preventing cross-channel interference and ensuring reliable operation in noisy industrial environments—critical for safety-critical applications like ESD systems.
2. Comprehensive Diagnostics: With coil open/short detection and contact weld monitoring, Yokogawa SDV531-S23 provides real-time fault feedback to the DCS/SIS, enabling predictive maintenance and reducing the risk of unplanned shutdowns caused by failed relays.
3. Flexible Fail-Safe Configuration: The module supports both energize-to-operate and de-energize-to-operate modes, allowing customization for application-specific safety requirements (e.g., fail-closed valves for ESD systems).
4. Hot-Swappable & Easy to Maintain: Yokogawa SDV531-S23 is hot-swappable in CENTUM VP/ProSafe-RS racks, meaning modules can be replaced without shutting down the control system. Front-panel LED indicators simplify troubleshooting, reducing maintenance time and costs.
5. Hazardous Area Compliance: ATEX Zone 2 and UL/cUL Class 1 Div 2 certifications make Yokogawa SDV531-S23 suitable for deployment in explosive atmospheres (e.g., refineries, LNG plants) without additional protection.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: ESD valve control, pipeline isolation systems, offshore platform pump/motor actuation
• Petrochemical: Refinery burner management (fuel valve control), reactor emergency shutdown, chemical storage tank overfill protection
• Power Generation: Turbine lube oil pump control, boiler safety valve actuation, renewable energy grid interconnection switches
• Chemical: Hazardous material transfer valve control, batch reactor dump valve actuation, fire suppression system triggering

4.2 Typical Cases

1. Refinery ESD System: A major Middle Eastern refinery deployed Yokogawa SDV531-S23 modules in its ProSafe-RS ESD system to control 64 isolation valves across 4 process units. The module’s contact weld detection feature identified a faulty relay in a critical shutdown valve, allowing proactive replacement and avoiding a potential hydrocarbon release. Over 2 years of operation, the system achieved 99.99% uptime.
2. Thermal Power Plant Boiler Control: A Chinese coal-fired power plant integrated Yokogawa SDV531-S23 into its CENTUM VP system to control boiler feed pump motors and fuel valve actuators. The module’s fast response time (≤10ms) ensured precise synchronization of fuel supply with boiler load changes, improving efficiency by 3% and reducing emissions.
3. LNG Storage Terminal Safety: An Australian LNG storage terminal used Yokogawa SDV531-S23 to manage cryogenic pump safety interlocks and isolation valves. The module’s ATEX Zone 2 certification and cold-temperature performance (-10°C operating range) ensured reliable operation in the terminal’s hazardous, low-temperature environment.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Safety Level & Application: Choose Yokogawa SDV531-S23 for SIL 2 safety-critical applications (e.g., ESD, burner management); for non-safety applications, consider lower-cost non-SIL modules or Yokogawa’s SDV144 (basic DO module).
2. Hazardous Area Needs: Select Yokogawa SDV531-S23 for ATEX Zone 2/UL Class 1 Div 2 locations; standard modules are suitable for safe-area installations.
3. System Compatibility: Opt for Yokogawa SDV531-S23 if integrating with Yokogawa CENTUM VP/ProSafe-RS systems to ensure seamless communication and diagnostics; third-party modules may require additional interface hardware.

6.2 Precautions

1. Installation Guidelines:
   • Install Yokogawa SDV531-S23 in Yokogawa CENTUM VP/ProSafe-RS I/O racks only; ensure proper grounding (≤4Ω) to minimize electromagnetic interference (EMI).
   • Use twisted-pair wiring for relay outputs, with surge suppression diodes for inductive loads (e.g., motors, valves) to extend contact life.
2. Configuration Notes:
   • Configure fail-safe modes (energize/de-energize) via CENTUM VP/ProSafe-RS engineering software to match application safety requirements (e.g., fail-closed for ESD valves).
   • Enable diagnostic features (contact weld detection) during setup to ensure early fault identification.
3. Troubleshooting:
   • For failed outputs: Check coil power, relay contact status (via LEDs), and load wiring; use DCS diagnostic tools to verify module communication.
   • For false fault alarms: Inspect for EMI (reposition cables away from power lines) or faulty sensors; replace degraded relays if contact weld is detected.
   • Hot-swapping: Follow Yokogawa procedures (deactivate the module via software) to avoid voltage spikes during replacement.
4. Maintenance:
   • Inspect relay contacts for wear every 2 years (or after 100,000 operations) and replace modules with degraded contacts.
   • Clean connector pins and backplane contacts annually to prevent corrosion-related faults.
   • Stock spare Yokogawa SDV531-S23 modules for critical applications to minimize downtime in case of failure.
