Description
Product Description

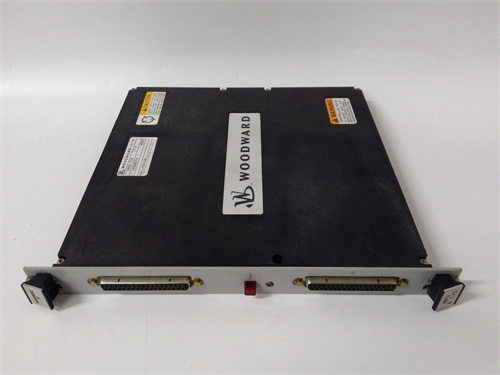

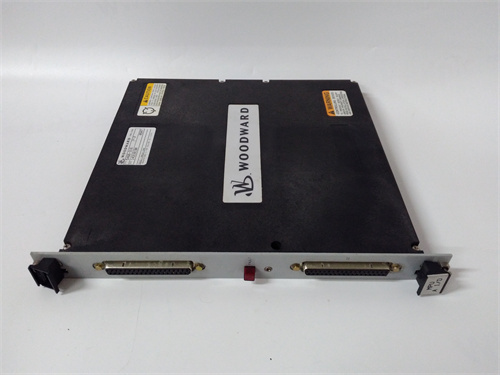

The Woodward 5466 – 316 is a high – performance PLC module designed for industrial automation applications. It offers advanced control capabilities, ensuring seamless integration into complex systems. This module is equipped with 32 digital inputs and 16 digital outputs, which can meet the connection requirements of various industrial field devices. It also has communication interfaces such as RS485 and Ethernet, which can be seamlessly integrated with existing industrial networks to realize data transmission and remote control. In addition, the Woodward 5466 – 316 has a compact design and a lightweight structure, which is easy to install and maintain, and can work stably in harsh industrial environments.
Product Parameters
- Input Voltage: 24 – 240 VAC or 12 – 240 VDC.
- Output Voltage: 24 VDC.
- Timing Accuracy: ±0.1% per year.
- Operating Temperature Range: – 20 °C to + 70 °C.
- Storage Temperature Range: – 55 °C to + 105 °C.
- Communication Interfaces: RS485, Ethernet.
- Number of Digital Inputs: 32.
- Number of Digital Outputs: 16.
Advantages and Characteristics
- High Reliability: The Woodward 5466 – 316 is made of high – quality materials and has a robust design, which can operate reliably in harsh industrial environments. It is certified to meet international standards such as CE, UL, and RoHS, which ensures its compliance with safety and environmental regulations.
- Easy Integration: This module has standard communication interfaces and a compact structure, which can be easily integrated into existing industrial control systems. For example, in an automated production line, it can be quickly connected to other devices without the need for major modifications to the system.
- Excellent Performance: With 32 digital inputs and 16 digital outputs, it can handle a large number of signals and control multiple devices simultaneously. Its timing accuracy is as high as ±0.1% per year, which can meet the high – precision timing requirements of industrial automation.
Application Areas and Application Cases
- Application Areas: The Woodward 5466 – 316 is suitable for a variety of industries, including manufacturing, energy, and automation control. In the manufacturing industry, it can be used in automated production lines to control the operation of various machines and equipment; in the energy industry, it can be used in power generation equipment to monitor and control the generation process; in the field of automation control, it can be used in industrial control systems to realize the collection and processing of signals and the control of actuators.
- Application Case: In a certain power plant, the Woodward 5466 – 316 is used in the turbine control system. It collects various analog and digital signals from the turbine, such as temperature, pressure, and speed signals, and processes and analyzes these signals. According to the set control strategy, it outputs control signals to adjust the opening of the turbine’s throttle valve and other actuators, thereby ensuring the stable operation of the turbine and improving the efficiency of power generation.
Comparison with Competitors
Compared with similar products, the Woodward 5466 – 316 has the following advantages: It has a wider operating temperature range, which can adapt to more extreme working environments; its communication interface is more advanced, which can realize faster and more stable data transmission; and it has a higher – density input and output design, which can save more space in the case of the same number of channels, making the system more compact.
Selection Suggestions
- Compatibility: When selecting the Woodward 5466 – 316, it is necessary to ensure that it is compatible with the existing PLC system and other equipment in the industrial control system to avoid communication and connection problems.
- Installation Environment: Consider the installation space and environmental conditions. The compact design of this module is suitable for installation in a narrow space, but it should also be noted that the installation environment should meet the requirements of its operating temperature range.
- Budget: The price of the Woodward 5466 – 316 should be considered. Although its performance and quality are excellent, it is necessary to ensure that the cost is within the budget range of the project.
Precautions
- Safety Specifications: When installing and using the Woodward 5466 – 316, relevant safety regulations and operating guidelines should be followed. For example, when wiring, it is necessary to ensure that the power is turned off to avoid electric shock; and the installation and wiring should be carried out by professional technicians.
- Maintenance Suggestions: Regular maintenance and inspection of the module are required to ensure its normal operation. This includes checking the connection status of the wiring, cleaning the dust on the module, and replacing the damaged components in a timely manner. In addition, it is recommended to back up the program and data in the module regularly to prevent data loss in case of equipment failure.
Shanxi Runsheng Import and Export Co., Ltd. is your reliable partner. We provide the sales and technical support of WOODWARD 5466 – 316 and other automation spare parts. Please visit our website www.sxrsrobot.com or contact us, and we will be happy to serve you
