WESTINGHOUSE 5X00357G03

Description

Product Overview

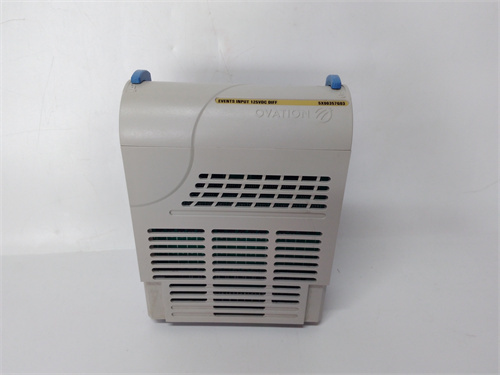

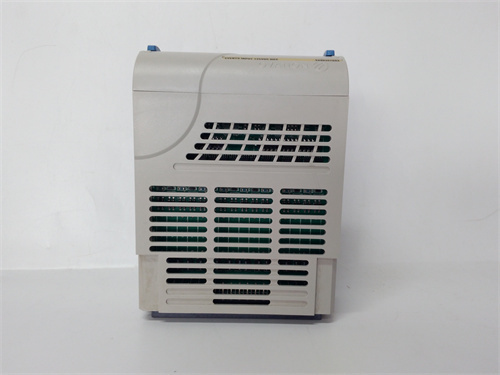

The WESTINGHOUSE 5X00357G03 is a digital input module developed by Westinghouse Electric Corporation for the Ovation distributed control system (DCS), now part of Emerson Automation Solutions. This module is designed to interface field digital signals from limit switches, pushbuttons, relay contacts, and proximity sensors with the Ovation controller for monitoring and control applications. WESTINGHOUSE 5X00357G03 provides high-density, optically isolated digital input channels specifically engineered for the demanding environments of power generation and water treatment facilities. This component remains essential for maintaining legacy Ovation installations that have not undergone complete system modernization, serving as a critical spare part for plants built in the 1990s and early 2000s.

Technical Specifications

WESTINGHOUSE 5X00357G03 features the following technical specifications:

• Channel Count: 16 digital inputs

• Input Voltage: 24 V DC or 48 V DC (selectable via termination module)

• Logic Thresholds: ON state >15 V DC, OFF state <5 V DC

• Isolation: 1500 V AC optical isolation between field and logic circuits

• Input Impedance: 3.3 kΩ typical

• Response Time: <2 ms (filter disable), <10 ms (with standard filter)

• Diagnostics: LED indicators per channel, module status LED, communication status

• Field Termination: Via companion termination module 5X00457Gxx series

• Power Consumption: 5 V DC, 200 mA from backplane

• Mounting: Plugs into Ovation I/O rack, occupies one slot

• Operating Temperature: 0°C to +60°C

• Humidity: 5% to 95% non-condensing

A key feature of WESTINGHOUSE 5X00357G03 is the programmable input filter that can be configured in software from 2 ms to 32 ms, allowing optimization for fast proximity sensors versus contact bounce rejection.

Advantages & Features

WESTINGHOUSE 5X00357G03 remains a benchmark for reliability in power plant control systems. Key advantages include:

• High Noise Immunity: Optical isolation combined with differential input circuits rejects common mode noise common in high-voltage switchyards

• Hot Swap Capable: Module can be inserted or removed without powering down the I/O rack in redundant configurations

• Diagnostic Coverage: Continuous monitoring of input circuits with fault reporting to the controller

• Field Wiring Compatibility: Direct replacement for earlier 5X00357G01 and G02 modules without termination wiring changes

• EMC Compliance: Meets IEC 61000-4 standards for electrostatic discharge, radiated immunity, and electrical fast transients

When performing life extension programs for fossil-fired power plants, instrumentation engineers specifically specify WESTINGHOUSE 5X00357G03 because third-party universal input modules often fail to meet the surge withstand capability required for direct connection to 48 V DC plant protection circuits.

Application Examples

Typical applications for WESTINGHOUSE 5X00357G03 include:

• Coal-Fired Power Plants: Monitoring pulverizer trip limit switches and coal feeder status signals

• Combined Cycle Plants: Reading valve limit positions on HRSG steam turbines

• Water Treatment Facilities: Interface with pump run status contacts and tank level switch alarms

• Gas Insulated Substations: Digital status monitoring of circuit breaker positions

At a major 800 MW coal-fired plant in the Midwestern United States, over 150 WESTINGHOUSE 5X00357G03 modules continuously monitor boiler burner management system interlocks. The plant’s reliability database shows an average MTBF exceeding 150,000 hours, with most failures attributed to external surge damage rather than module component aging.

Competitive Comparison

Primary competitors to WESTINGHOUSE 5X00357G03 in the legacy Ovation market include Emerson’s own newer KI-series digital input modules and third-party compatible modules. Comparative analysis:

WESTINGHOUSE 5X00357G03 retains the advantage of proven long-term reliability in harsh plant environments, while third-party modules often exhibit premature optical coupler failure when subjected to continuous high ambient temperatures.

Selection Recommendations & Precautions

1. Module Revision: Verify that WESTINGHOUSE 5X00357G03 bears the G03 suffix. Earlier G01 and G02 revisions have obsolete firmware incompatible with Ovation 3.0 and higher operating systems.

2. Termination Module Compatibility: This module requires matching 5X00457Gxx termination modules. Verify that your existing termination base is compatible before installation.

3. Field Wiring Check: When replacing older modules, confirm that field devices source sufficient current. Low-power proximity sensors may require the 24 V DC input configuration for reliable switching.

4. Surge Protection: For outdoor or high-lightning areas, install external surge protection devices between field contacts and the WESTINGHOUSE 5X00357G03 termination assembly.

5. Storage Requirements: Store spare modules in conductive anti-static bags with desiccant. The optical isolators can degrade when exposed to high humidity for extended periods exceeding 18 months.
