1. Product Description

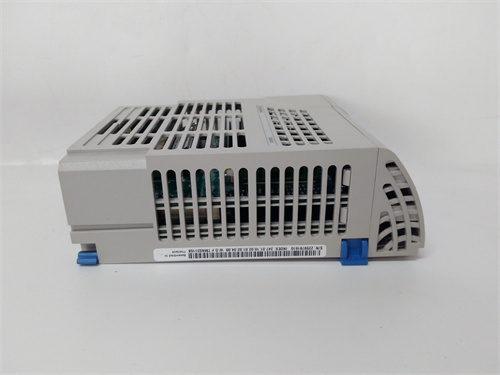

WESTINGHOUSE 5X00241G01 is a high-reliability analog input module designed for Westinghouse Ovation distributed control systems (DCS), tailored for critical industrial applications that demand precise data acquisition and stable signal processing. This module is engineered to convert analog signals from field sensors (such as temperature, pressure, and flow transmitters) into digital data for DCS controllers, ensuring accurate and real-time process monitoring. In harsh industrial environments like power generation plants, water treatment facilities, and pulp and paper mills, WESTINGHOUSE 5X00241G01 delivers exceptional resistance to electromagnetic interference, voltage fluctuations, and temperature variations, maintaining consistent performance even under heavy operational loads. With its plug-and-play design and native compatibility with Ovation DCS architectures, WESTINGHOUSE 5X00241G01 seamlessly integrates into existing control systems, serving as a core component for enhancing process visibility and operational efficiency.
2. Product Parameters
- Core Functions: 8-channel analog signal acquisition, differential input support, signal conditioning, built-in fault diagnosis, cold-junction compensation for thermocouple inputs
- Input Specifications: Supports 4–20 mA current loops, 0–10 V voltage signals, thermocouples (Type J, K, T, E, R, S, B), RTDs (PT100, PT1000); input impedance ≥ 1 MΩ for voltage signals
- Communication Interface: Integrates with Westinghouse Ovation DCS via backplane bus; data transmission rate up to 10 Mbps; real-time status feedback to the control server
- Power Supply: 24 V DC ±10%; power consumption ≤ 12 W; reverse polarity protection to prevent module damage from incorrect wiring
- Operating Conditions: Temperature range -40°C to +70°C; relative humidity 5%–95% (non-condensing); vibration resistance up to 2g (10–2000 Hz) per IEC 60068-2-6
- Safety & Certification: Complies with IEC 61010-1, UL 508, and CSA C22.2 standards; IP20 enclosure rating for cabinet mounting
- Compatibility: Fully compatible with Westinghouse Ovation DCS series controllers; supports integration with third-party PLC/DCS (Siemens S7, ABB AC800M) via communication gateways
- Mechanical Dimensions: 180×120×40 mm; standard DIN-rail mounting; hot-swappable design for maintenance without system shutdown
3. Advantages and Features
- Multi-Signal Compatibility: WESTINGHOUSE 5X00241G01 supports a wide range of analog input types (current, voltage, thermocouple, RTD) without requiring additional adapters, reducing system component costs and simplifying configuration.
- High Measurement Accuracy: The module offers a measurement error of ≤ ±0.1% for 4–20 mA signals, ensuring precise data acquisition for critical process variables and enabling accurate process control and optimization.
- Hot-Swappable Design: WESTINGHOUSE 5X00241G01 allows on-site replacement without shutting down the entire DCS system, minimizing maintenance downtime and improving plant availability.
- Advanced Diagnostic Capabilities: Built-in self-diagnosis functions monitor channel health, wiring faults, and signal drift, providing real-time alerts to operators and enabling proactive maintenance to prevent unplanned shutdowns.
- Rugged Industrial Design: With its wide operating temperature range and vibration resistance, WESTINGHOUSE 5X00241G01 is suitable for deployment in extreme environments such as coal-fired power plants and offshore industrial facilities.
4. Application Fields and Cases
4.1 Application Fields
Widely used in thermal power plants, nuclear power plant auxiliary systems, water and wastewater treatment plants, pulp and paper manufacturing, and petrochemical refining for analog signal acquisition and process monitoring.
4.2 Practical Cases
- Coal-Fired Power Plant: In a 600 MW coal-fired power plant in North America, WESTINGHOUSE 5X00241G01 is integrated into the boiler control system to collect temperature and pressure signals from furnace sensors. Its high accuracy ensures stable boiler combustion control, reducing fuel consumption by 3% and lowering emissions.
- Water Treatment Facility: A municipal water treatment plant uses WESTINGHOUSE 5X00241G01 to monitor flow rate, pH value, and turbidity of raw water. The module’s diagnostic capabilities detect sensor wiring faults in real time, preventing incorrect dosing of chemicals and ensuring water quality compliance.
- Pulp and Paper Mill: In a European pulp mill, WESTINGHOUSE 5X00241G01 acquires temperature signals from digester systems. Its resistance to electromagnetic interference from nearby industrial motors ensures reliable data transmission, optimizing the pulping process and reducing paper product defects.
5. Comparison with Competing Products
| Comparison Parameter | WESTINGHOUSE 5X00241G01 | Competitor (Analog Input Module from Other Brands) |
|---|---|---|
| Measurement Accuracy | ≤ ±0.1% (4–20 mA) | ≤ ±0.25% (4–20 mA) |
| Supported Signal Types | Current, voltage, thermocouple, RTD | Current and voltage only |
| Hot-Swappable Function | Supported | Not supported |
| Operating Temperature Range | -40°C to +70°C | -20°C to +60°C |
| Diagnostic Capabilities | Real-time channel health monitoring | Basic fault detection only |
6. Selection Suggestions and Precautions
6.1 Selection Suggestions
- Choose WESTINGHOUSE 5X00241G01 if you need a multi-functional analog input module for Westinghouse Ovation DCS, especially for applications requiring diverse signal acquisition and high measurement accuracy.
- For industrial sites with harsh environmental conditions (extreme temperatures, vibration) or strict uptime requirements, this module is a better choice than competitors due to its rugged design and hot-swappable feature.
- When upgrading legacy analog input modules in power generation or water treatment facilities, WESTINGHOUSE 5X00241G01 offers seamless integration with Ovation DCS, minimizing retrofitting time and costs.
6.2 Precautions
- Ensure the power supply voltage is within the 24 V DC ±10% range when connecting WESTINGHOUSE 5X00241G01 to avoid damaging the module’s internal circuitry.
- Use shielded twisted-pair cables for field sensor connections to reduce electromagnetic interference, which can affect signal measurement accuracy and diagnostic reliability.
- Do not mix different signal types in the same channel group of WESTINGHOUSE 5X00241G01, as this may cause cross-talk and measurement errors.
- Conduct regular calibration according to the plant maintenance schedule, as long-term operation can lead to signal drift that affects the module’s measurement accuracy.
