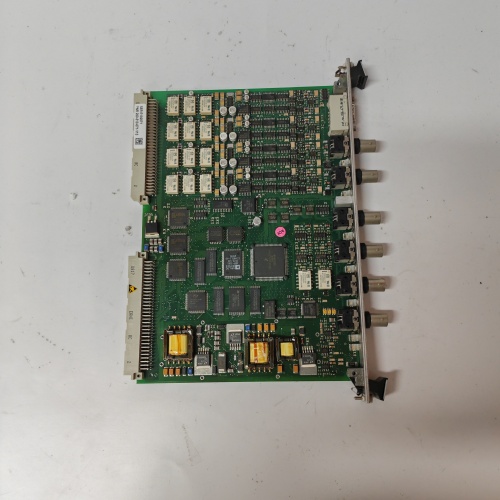

VIBRO-METER MPC4 200-510-111-035

Description

Product Description

The VIBRO-METER MPC4 is a versatile 4-channel monitoring module that serves as a key component in machinery protection systems (MPS). The specific variant 200-510-111-035 represents a particular configuration with defined input types, output relays, and firmware. This monitoring module MPC4 accepts signals from various transducers, including proximity probes (for displacement and speed), accelerometers (for vibration), and RTDs/thermocouples (for temperature). It processes these signals to provide continuous monitoring, generate alarm and trip outputs based on user-configurable setpoints, and offer analog outputs for trend monitoring. The reliable protection of critical assets against mechanical failure heavily depends on the accuracy and reliability of devices like the VIBRO-METER MPC4 200-510-111-035.

Technical Parameters

• Device Type: 4-Channel Programmable Monitoring and Protection Module.

• Channels: 4 independent monitoring channels. The specific model 200-510-111-035 defines the input type for each channel (e.g., 2 x displacement, 1 x velocity, 1 x temperature).

• Input Types Supported: Proximity probe input (for shaft relative vibration/displacement and Keyphasor®), Seismic velocity input, Accelerometer input, Temperature input (RTD or thermocouple).

• Functions per Channel: Measures parameters like peak-to-peak displacement, velocity, acceleration, temperature, and RPM. Provides programmable alert and danger (trip) setpoints with independent time delays.

• Outputs: Typically includes:

  • Relay outputs (Form C contacts) for Alert and Danger per channel.

  • 4-20 mA analog outputs proportional to measured values.

  • Buffered sensor outputs.

• Communication: Often includes a serial communication port (RS-232/485) for configuration, data retrieval, and integration into higher-level systems.

• Programming: Configured via dedicated software (e.g., VibroSight) or a handheld programmer.

• Power Supply: 24 VDC standard.

Advantages and Features

1. Multi-Parameter Monitoring: The MPC4 module consolidates the monitoring of vibration, speed, and temperature into a single, compact unit, simplifying system architecture and reducing cost per point.

2. Flexible Configuration: The programmable nature of the MPC4 200-510-111-035 allows it to be tailored to a wide variety of machines and monitoring requirements by defining input types and setpoints.

3. Robust Protection: Provides dedicated, hardware-based relay trips for machine protection, ensuring a fast and reliable response to dangerous conditions independent of a connected PLC or DCS.

4. Advanced Diagnostics: Offers comprehensive self-diagnostics and transducer fault detection (e.g., probe gap, cable break) to ensure monitoring integrity.

5. Industry Proven: VIBRO-METER (now part of Meggitt Sensing Systems) is a recognized leader in vibration monitoring, and the MPC4 system is widely used in critical industries.

Application Cases in Various Fields

• Power Generation (Gas & Steam Turbines): Monitoring bearing vibration, shaft displacement, and casing vibration on turbines and associated pumps/fans.

• Oil & Gas: Protection of centrifugal and reciprocating compressors, gas turbines, and pipeline pumps on offshore platforms and refineries.

• Petrochemicals: Monitoring critical rotating equipment in continuous process plants to prevent unplanned shutdowns.

• Water & Wastewater: Protecting large pumps and blowers in treatment facilities.

• Marine: Monitoring main propulsion turbines, gearboxes, and auxiliary machinery.

Comparison with Competing Products

Direct competitors to the VIBRO-METER MPC4 are other modular machinery protection systems:

• Bently Nevada (Baker Hughes): 3500 Series Monitoring System.

• Emerson (CSI): 9400 Series Vibration Switches and Monitors.

• SKF: Multilog Online System IMx Series.

• Rockwell Automation/Entek: Machine Health Monitors.
  The MPC4 often competes favorably in applications requiring a flexible, cost-effective system for mid-range criticality. The 3500 system from Bently Nevada is often considered the premium benchmark for the most critical machinery (e.g., large turbines), offering extensive customization and integration options. The MPC4 module provides a strong balance of functionality, reliability, and value.

Selection Suggestions and Precautions

1. Detailed Configuration Review: The suffix 200-510-111-035 is a specific order code. It is imperative to have the datasheet for this exact code to verify the predefined input types (e.g., Channel 1: Displacement, Channel 2: Velocity, etc.) to ensure it matches your sensor suite.

2. Sensor Compatibility: Verify the compatibility of your existing sensors (probes, accelerometers) with the input requirements of the MPC4 module. This includes sensitivity, wiring, and required power.

3. Proper Commissioning and Calibration: Setpoints (Alert/Danger) must be established based on machine OEM guidelines, baseline readings, and operational experience. Incorrect setpoints can lead to nuisance trips or, worse, failure to trip.

4. Redundancy for Critical Machines: For machines where a single failure cannot be tolerated, consider redundant monitoring paths (e.g., dual modules or a TMR system like Triconex for safety).

5. Secure Installation and Wiring: Use proper shielded cables for sensor inputs. Ground shields correctly at one point only to prevent ground loops. Ensure the module is mounted in a controlled environment (appropriate temperature, minimal vibration).

6. Functional Testing: Perform regular bump tests or simulated fault tests to verify the entire monitoring chain—from sensor to relay output—is functioning correctly.
