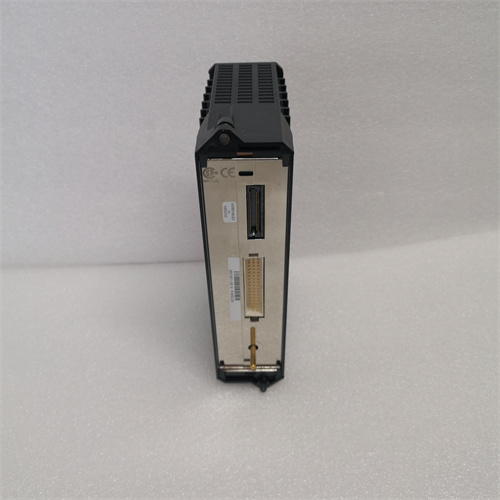

Triconex MA2211-100S2

Description

1. Product Overview

2. Product Parameters

2.1 Core Input Specifications

• Input Channels: 16 isolated analog input channels (4-channel groups with reinforced isolation)
• Signal Compatibility:
  • Voltage: 0-5V, 1-5V, ±10V (high-impedance input)
  • Current: 4-20mA, 0-20mA (2-wire/4-wire, loop-powered support)
  • Temperature: PT100/PT1000 (2/3/4-wire RTD), K/J/T/E/R/S/B thermocouples (with cold-junction compensation)
• Measurement Accuracy:
  • Current/Voltage: ±0.05% of full scale (enhanced precision vs. standard MA2211)
  • RTD: ±0.1°C (-50°C to +200°C)
  • Thermocouple: ±0.3°C (0°C to +800°C)
• Sampling Rate: 200 samples per second per channel (double the rate of base model)
• Isolation Rating: 3000V AC channel-to-channel, 4000V AC module-to-backplane

2.2 Electrical & Communication Parameters

• Power Supply: 24V DC (redundant input, surge-protected), power consumption ≤12W
• Backplane Interface: Triconex Tricon TMR bus (20Mbps, high-speed data transfer)
• Diagnostic Features: Advanced open/short-circuit detection, sensor drift monitoring, module self-test (BIT), fault logging with time-stamping
• Communication Protocols: Modbus TCP/IP (integrated), OPC UA (optional), Triconex proprietary safety protocol
• Cybersecurity: Password-protected configuration, firmware integrity checks, audit logging

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +85°C (extended temperature range)
• Storage Temperature: -55°C to +100°C
• Relative Humidity: 5% to 95% (non-condensing, IP20 enclosure)
• Vibration Resistance: 5-2000Hz, 7g (IEC 60068-2-6, X/Y/Z axes)
• Shock Resistance: 50g (11ms half-sine wave, IEC 60068-2-27)
• Mounting: Triconex Tricon 4000/5000 chassis dedicated slot, hot-swappable (TMR-compatible)

2.4 Certifications & Compatibility

• Safety Certifications: SIL 3 (IEC 61508/61511), TÜV Rheinland, ATEX Zone 2 (Ex ib IIC T4)
• Industry Certifications: CE, UL/cUL Class 1 Div 2, FCC Class A, IEC 61850 (for power applications)
• Compatibility: Triconex Tricon 3000/4000/5000 controllers, TriStation 1131 V5.0+, Triconex Diagnostic Suite
• MTBF: ≥1,200,000 hours (per Telcordia SR-332, Bellcore Issue 6)

3. Advantages & Features

1. Enhanced Precision & Speed: Triconex MA2211-100S2 delivers ±0.05% full-scale accuracy for current/voltage inputs and 200 SPS sampling, enabling real-time monitoring of fast-changing process variables (e.g., pressure spikes in gas pipelines) with minimal latency—critical for time-sensitive safety interlocks.
2. Reinforced Isolation & Durability: With 3000V AC channel-to-channel isolation and extended temperature/vibration tolerance, Triconex MA2211-100S2 withstands harsh industrial environments (e.g., offshore rigs, desert refineries) and protects against electrical faults, reducing downtime from signal interference or module failure.
3. Advanced Diagnostics & Predictive Maintenance: Triconex MA2211-100S2 includes sensor drift monitoring and fault time-stamping, allowing operators to identify potential issues (e.g., deteriorating thermocouples) before they cause process disruptions—supporting predictive maintenance strategies and reducing unplanned shutdowns.
4. Secure Hot-Swappable Operation: Triconex MA2211-100S2 supports hot-swapping in TMR systems without disrupting critical processes, while password protection and firmware integrity checks prevent unauthorized configuration changes—ensuring both availability and cybersecurity.
5. Seamless TMR Integration: Optimized for Triconex triple-modular redundant systems, Triconex MA2211-100S2 eliminates single points of failure and synchronizes data across redundant channels, meeting the strict safety requirements of SIL 3 applications like emergency shutdown and fire/gas detection.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: Offshore platform ESD systems, subsea wellhead monitoring, LNG liquefaction plant process control
• Petrochemical: Refinery hydrocracking units, ethylene plant reactor safety loops, chemical storage tank level monitoring
• Power Generation: Nuclear power plant auxiliary systems, combined-cycle turbine monitoring, renewable energy grid stabilization
• Mining: Mine ventilation system monitoring, ore processing plant safety interlocks, hazardous gas detection

4.2 Typical Cases

1. Offshore Platform ESD System: A major North Sea oil platform deployed Triconex MA2211-100S2 in its TMR ESD system to monitor 128 analog signals (subsea pressure, pipeline temperature, fire/gas detectors). The module’s extended temperature tolerance (-40°C to +85°C) and 7g vibration resistance ensured reliable operation in harsh marine conditions, while advanced diagnostics detected a drifting pressure sensor 2 weeks before failure—allowing proactive replacement and avoiding a potential shutdown.
2. Petrochemical Refinery Reactor Monitoring: A Gulf Coast refinery integrated Triconex MA2211-100S2 into its hydrocracking unit safety system to monitor reactor temperature, hydrogen partial pressure, and catalyst bed level. The module’s ±0.3°C thermocouple accuracy and 200 SPS sampling rate enabled precise control of the exothermic reaction, preventing overheating and ensuring compliance with SIL 3 safety standards. Over 18 months of operation, the system recorded zero false alarms and 99.99% uptime.
3. Nuclear Power Auxiliary System: A European nuclear power plant used Triconex MA2211-100S2 to monitor coolant flow, temperature, and pressure in auxiliary systems. The module’s 4000V AC isolation and cybersecurity features (firmware integrity checks, audit logging) met strict nuclear industry requirements, while compatibility with IEC 61850 protocols simplified integration with the plant’s SCADA system.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Safety & Precision Requirements: Choose Triconex MA2211-100S2 for SIL 3 applications requiring enhanced accuracy (±0.05%) or fast sampling (200 SPS)—e.g., offshore platforms, nuclear auxiliary systems. For standard SIL 3 applications, the base MA2211-100 may suffice.
2. Environmental Conditions: Select Triconex MA2211-100S2 for extreme temperature/vibration environments (e.g., desert refineries, marine installations); the base model is suitable for controlled industrial environments.
3. Cybersecurity & Diagnostics: Opt for Triconex MA2211-100S2 if advanced diagnostics (sensor drift monitoring) or cybersecurity features (audit logging) are required for compliance (e.g., nuclear, pharmaceutical industries).

6.2 Precautions

1. Installation Guidelines:
   • Install Triconex MA2211-100S2 in a Triconex Tricon 4000/5000 chassis only; ensure proper grounding (≤4Ω) to minimize EMI.
   • Use shielded twisted-pair cables (24 AWG or larger) for analog inputs, with shielding grounded at the sensor end to reduce noise.
2. Configuration Notes:
   • Calibrate channels with a NIST-traceable calibrator before commissioning; enable sensor drift monitoring in TriStation 1131 for predictive maintenance.
   • Configure cybersecurity settings (passwords, audit logging) during initial setup to prevent unauthorized access.
3. Troubleshooting:
   • For inaccurate readings: Verify sensor calibration, check cable shielding, and confirm module isolation (use Triconex Diagnostic Suite for testing).
   • For communication faults: Ensure TMR bus connectivity and validate firmware compatibility with TriStation software.
   • Hot-swapping: Follow Triconex procedures (mark module as “offline” in TriStation) to avoid disrupting redundant systems.
4. Maintenance:
   • Perform annual calibration of analog channels and inspect connector pins for corrosion.
   • Update firmware via TriStation 1131 (v5.0+) to ensure compatibility with latest cybersecurity patches.
   • Stock spare Triconex MA2211-100S2 modules for critical applications to minimize downtime.
