Description
Introduction and Product Overview

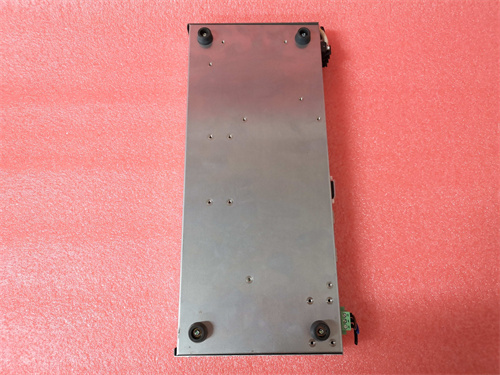

The TOSHIBA USIO21 is a Universal I/O Module for the Toshiba V-Series of Programmable Logic Controllers (PLCs). This module is a flexible interface unit designed to handle a mix of digital signals within a single compact unit. Its primary function is to connect a variety of field devices—such as limit switches, pushbuttons, solenoid valves, and indicator lamps—to the PLC’s central processing unit. The “Universal” designation indicates that the module’s channels are not permanently fixed as inputs or outputs; they are configurable in groups, allowing for efficient use of hardware based on the specific application needs. For wiring and configuration details, the official Toshiba V-Series Hardware manual for the USIO21 is essential.
Technical Parameters and Characteristics
The USIO21 universal module is defined by its configurable I/O structure:
-
Function: 16-point Universal I/O Module (configurable as Input or Output).
-
I/O Configuration: The 16 points are typically divided into two groups of 8 points. Each group can be independently configured via a hardware switch or software setting to be either:
-
8 Digital Inputs: Sink or source type, typically 24V DC.
-
8 Digital Outputs: Transistor outputs (sink or source), typically 24V DC.
-
-
Voltage Rating: Operates at 24V DC for both the internal logic and the field-side switching.
-
Point Density: Provides a balance of I/O count and flexibility in a single-slot module, optimizing rack space.
-
Status Indication: Each point has an LED indicator to show its status (ON/OFF), providing clear visual diagnostics.
-
Connection: Uses a removable terminal block for field wiring connections.
-
Mounting: Installs directly into the Toshiba V-Series PLC rack or a compatible remote I/O station.
Key Advantages and Features
The design of the TOSHIBA USIO21 offers practical benefits for system design and maintenance:
-
Design Flexibility and Inventory Reduction: The key advantage of the USIO21 is its configurability. It eliminates the need to stock separate input and output modules for low-count applications. A single module type can be deployed and later reconfigured if project needs change, reducing spare parts variety.
-
Space-Efficient Design: By providing 16 configurable points in one module slot, it allows for a compact control cabinet layout, which is particularly advantageous in space-constrained environments like machine-mounted panels.
-
Simplified Wiring: Grouping configurable points simplifies wiring planning. Electricians can wire field devices to a single module type, reducing the chance of errors associated with handling multiple different module types.
-
Clear Diagnostics: The per-point LEDs allow for immediate visual confirmation of device status during commissioning, operation, and troubleshooting, speeding up maintenance tasks.
Application Cases in Various Fields
This module is suitable for a wide range of small to medium-sized machine control applications using Toshiba PLCs:
-
Machine Tools: For interfacing with control panels, tool changers, and safety interlocks on lathes, mills, and drills.
-
Packaging Machinery: Controlling actuators, sensors, and indicators on fillers, cappers, and labelers.
-
Material Handling Systems: Interfacing with photoelectric sensors, conveyor motor starters, and diverter solenoids.
-
Automated Test Equipment: Connecting test jigs, fixtures, and status indicators.
Comparison with Competing Products
The TOSHIBA USIO21 competes with universal or combo I/O modules from other PLC manufacturers:
-
Mitsubishi Electric MELSEC FX series combined I/O units.
-
Omron CP1W series mixed I/O units.
-
Siemens SIMATIC S7-1200 signal boards with mixed I/O.
Its competitive position is tied to the Toshiba V-Series ecosystem. For users standardized on Toshiba PLCs, the USIO21 offers a cost-effective and flexible solution that is fully supported within the Toshiba engineering software, ensuring easy configuration and reliable operation.
Selection Suggestions and Precautions
When selecting and applying the USIO21, consider the following:
-
Configuration Planning: Before installation, determine the required number of inputs and outputs for your application. Configure the module’s groups accordingly using the hardware DIP switches or software settings in the Toshiba engineering tool.
-
Sink vs. Source Configuration: Pay close attention to the sink/source configuration for both inputs and outputs. This must match the electrical characteristics of your field devices (e.g., PNP vs. NPN sensors). Incorrect configuration is a common source of malfunction.
-
Load Current Calculation: For output groups, ensure the total current draw of all connected devices (solenoids, relays, lamps) does not exceed the module’s total per-group and overall current limits.
-
Fuse Protection: It is a good practice to protect each output group with an external fuse to prevent damage from short circuits in the field wiring.
-
Software Configuration: In the Toshiba PLC programming software (e.g., V-Series Navigator), the module type and I/O configuration must be correctly declared in the hardware configuration list to ensure proper addressing and operation.
