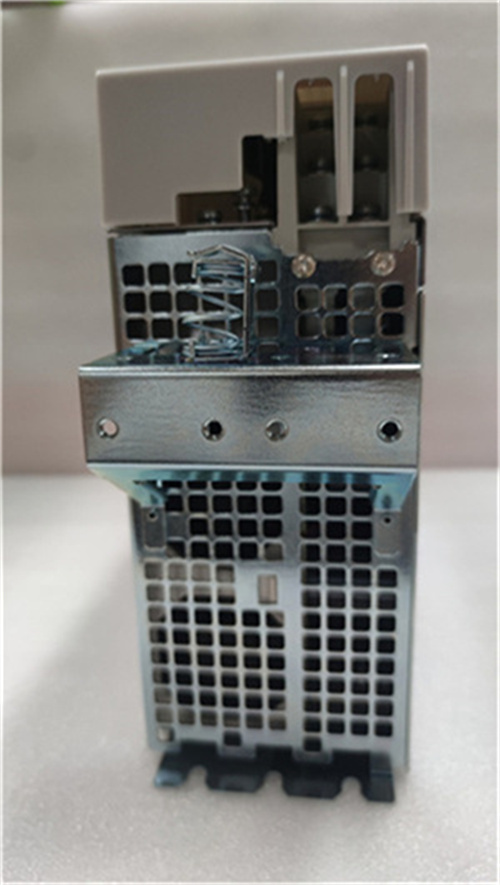

REXROTH DKC02.3-100-7-FW

Product Description

Product Parameters

• Rated input control voltage: 24 V AC
• Input voltage range: 200 – 480 V AC
• Rated current: 100 A1
• DC bus nominal voltage: 700 V DC1
• Input and output number of phases: 3
• Protection class: IP20
• Short – circuit current rating: 5000 W
• Switching frequencies: 4 kHz or 8 kHz
• Input frequency range: 50 – 60 Hz
• Maximum output frequency: 333.3 Hz
• Firmware: Ordered separately
• Operating temperature range: 0 – +45 degree centigrade
• Maximum installation elevation: 1000 msl

Advantages and Characteristics

• High reliability: Manufactured by Rexroth, a renowned brand, the DKC02.3-100 – 7 – FW undergoes strict quality control and testing before delivery, ensuring reliable operation in industrial environments2. For example, it has a high – strength casing and high – quality internal components that can withstand harsh industrial conditions.
• Easy integration: It supports a variety of encoder types and can be easily integrated with a variety of motors and control systems, reducing the difficulty and cost of system integration4.
• High efficiency: With a typical efficiency of over 95%, it can save energy and reduce operating costs4.

Application Areas and Application Cases

• Application areas: The REXROTH DKC02.3 – 100 – 7 – FW is widely used in the manufacturing industry, such as in roll – feed systems, packaging machinery, thermoforming machinery, linear portals, robot devices, bending machinery, and wood – processing machinery2. It is also suitable for other industrial automation scenarios that require precise motion control.
• Application case: In a packaging machinery production line, the DKC02.3 – 100 – 7 – FW is used to control the movement of the packaging robot. It can accurately control the position and speed of the robot, improving the packaging efficiency and accuracy. The high reliability and stability of the drive controller ensure the continuous operation of the production line, reducing downtime and maintenance costs.

Comparison with Similar Products

Selection Suggestions

• Compatibility: Make sure that the DKC02.3 – 100 – 7 – FW is compatible with your existing motor, encoder, and control system to ensure normal operation.
• Installation environment: Consider the installation space, temperature, humidity, and other environmental factors. The drive controller should be installed in a clean, dry, and well – ventilated place, away from sources of interference.
• Budget: Although the price of the REXROTH DKC02.3 – 100 – 7 – FW is relatively high, its high performance, reliability, and long – service life can bring long – term benefits. When making a selection, consider the overall cost – effectiveness based on your actual needs and budget.

Precautions

• Safety regulations: Only qualified personnel should be allowed to operate the DKC02.3 – 100 – 7 – FW. Contact with parts conducting voltages above 50 volts can cause personal danger and electric shock3. During operation, make sure to follow the relevant safety regulations and use protective equipment.
• Maintenance suggestions: Regularly check the connection of the drive controller to ensure that it is firm. Clean the dust and dirt on the surface of the device regularly to ensure good heat dissipation. Check the operating status of the device regularly and replace the damaged components in a timely manner.
