METSO PDP601

Description

Product Overview

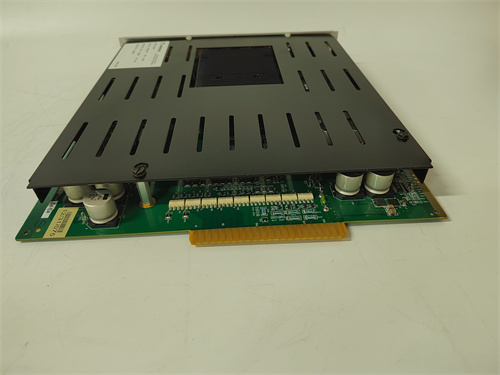

METSO PDP601 is a digital output module developed by Metso Automation (now part of Valmet) for the Damatic XD and Damatic XDi distributed control systems. This module is designed to provide discrete control signals from the DCS controller to field devices such as solenoid valves, motor starters, indicator lights, and alarm annunciators. METSO PDP601 features high-density, optically isolated output channels with continuous diagnostic monitoring, making it suitable for both general-purpose control and safety-related applications. The module remains widely deployed in pulp and paper mills, power plants, and chemical processing facilities throughout Europe and Asia that were commissioned between 1985 and 2005, serving as a critical component for maintaining operational continuity of these legacy but still productive automation systems.

Technical Specifications

METSO PDP601 features the following technical specifications:

• Channel Count: 16 digital outputs

• Output Type: Solid-state relay (MOSFET), normally open

• Switching Voltage: 24 V DC or 48 V DC (selectable via termination unit)

• Continuous Current: 0.5 A per channel, 4 A total per module

• Surge Current: 2 A for 100 ms

• Isolation: 1500 V AC optical isolation, channel-to-bus and channel-to-channel

• Output Protection: Built-in flyback diode for inductive load suppression

• Response Time: <1 ms turn-on, <1 ms turn-off

• Diagnostics: Open load detection, short circuit protection, blown fuse indication

• Status Indication: Per-channel LED, module status LED, communication LED

• Field Termination: Via separate termination unit (PDP601-TU series)

• Power Consumption: 5 V DC, 350 mA from I/O bus

• Mounting: Damatic XD I/O rack, single slot

• Operating Temperature: 0°C to +60°C

• Humidity: 5% to 95% non-condensing

A defining feature of METSO PDP601 is its comprehensive output channel diagnostics. Unlike many competing modules that only detect short circuits, the PDP601 continuously monitors each output for open load conditions, allowing early detection of field wiring failures or failed solenoids before they impact process operation.

Advantages & Features

METSO PDP601 represents the culmination of Metso’s mature I/O technology with significant diagnostic enhancements over predecessor modules. Key advantages include:

• Comprehensive Diagnostics: Per-channel open load and short circuit detection with specific fault reporting to the controller

• Inductive Load Compatibility: Integrated flyback diodes eliminate need for external suppression diodes across solenoid coils

• Hot Swap Capability: Module can be replaced with power applied; outputs revert to predetermined safe states during removal

• Common Fault Output: Dedicated alarm contact for external annunciation of module-level faults

• Fused Protection: Individually fused outputs with front-panel LED indication of blown fuse

• Long Service Life: Solid-state output design eliminates contact wear failures common with electromechanical relay modules

For pulp and paper mills operating extensive fleets of solenoid-actuated valves, METSO PDP601 provides exceptional diagnostic coverage that enables predictive maintenance strategies. The open load detection feature specifically identifies failed valve solenoids before they cause production interruptions—a capability that typically pays for the module within months of installation.

Application Examples

Typical applications for METSO PDP601 include:

• Pulp Digesters: Control of blow valves, chip feed gates, and liquor circulation solenoids

• Paper Machines: Actuation of headbox slice lip adjustment, steam shower valves, felt conditioning showers

• Recovery Boilers: Sootblower sequencing, smelt spout quenching, combustion air damper control

• Chemical Recovery: Causticizing plant lime mud filter indexing, green liquor tank agitation control

• Power Boilers: Burner management system valve actuation, sootblower positioning

A leading Scandinavian pulp mill operates over 200 METSO PDP601 modules controlling approximately 3,200 discrete output points across their fiber line, recovery island, and power generation areas. Following implementation of a predictive maintenance program utilizing the module’s diagnostic capabilities, the mill reported a 67% reduction in unscheduled downtime attributed to solenoid and actuator failures, with annual savings exceeding €1.2 million.

Competitive Comparison

Primary functional equivalents to METSO PDP601 in the legacy DCS market include ABB S800 DO810, Siemens S5-422, and Honeywell TDC 3000 DO card. Comparative analysis:

METSO PDP601 maintains an insurmountable advantage for facilities with substantial Damatic XD installed base, as no other manufacturer offers modules capable of direct insertion into Metso I/O racks. The cost of migrating a single I/O rack to alternative platforms typically exceeds the cost of maintaining a 10-year spare parts inventory of PDP601 modules.

Selection Recommendations & Precautions

1. Module Revision Verification: METSO PDP601 has been manufactured in multiple revisions distinguished by suffix letters (A through E). Revision E and later include enhanced EMC filtering and are recommended for all new installations. Earlier revisions remain functional but may exhibit noise sensitivity when co-located with variable frequency drives.

2. Termination Unit Compatibility: METSO PDP601 requires specific termination units (PDP601-TU1 for 24 V DC, PDP601-TU2 for 48 V DC). Verify termination unit model and fuse ratings before installation.

3. Fuse Replacement: Output fuses are field-replaceable. Always use Metso-specified fast-blow fuses (5×20 mm, 0.63 A). Substitution with standard time-delay fuses will compromise short circuit protection.

4. Inductive Load Derating: For highly inductive loads such as large contactors or hydraulic valves, derate continuous current to 0.3 A per channel to maintain acceptable operating temperature.

5. Storage Requirements: Store spare modules in conductive anti-static bags with desiccant. Extended storage periods exceeding 2 years require battery replacement in the associated controller, though the PDP601 itself contains no battery.

6. End-of-Life Awareness: Metso (Valmet) officially declared Damatic XD series end-of-life in 2008 with final production orders accepted through 2012. METSO PDP601 availability is now limited to new-old-stock inventory and professionally recertified surplus equipment.
