Product Overview and Description

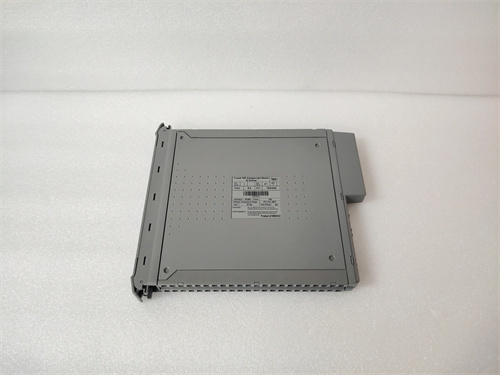

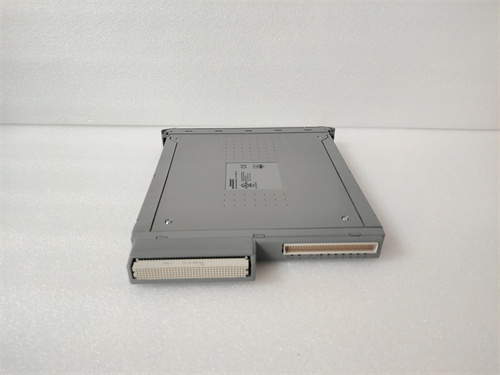

The ICS Triplex T8431C is a high-integrity, intelligent Servo Control Interface Module designed for critical, high-speed control loops within a Trusted® Triple Modular Redundant (TMR) safety system. This specialized module acts as a deterministic interface between the TMR processors and servo or proportional valves, commonly used in turbine governor control, compressor anti-surge systems, and other applications requiring precise and ultra-reliable motion control. The ICS Triplex T8431C provides the necessary signal conversion, amplification, and validation to ensure that position commands are executed accurately and safely. Its robust design, incorporating the core TMR principles, makes the ICS Triplex T8431C a vital component for protecting expensive rotating machinery and ensuring stable, safe process operations in highly dynamic environments.
Detailed Product Parameters
-
System Compatibility: Trusted® TMR System.
-
Function: Servo/Proportional Valve Interface.
-
Input: Accepts digital command signals from the TMR processors (via backplane).
-
Output: Typically provides a high-current drive output (e.g., ±200 mA or similar) for direct connection to servo valve coils.
-
Feedback Monitoring: Includes dedicated channels for monitoring Linear Variable Differential Transformer (LVDT) or other position feedback signals from the actuator.
-
Diagnostics: Comprehensive continuous diagnostics for coil integrity (open/short circuit), feedback signal validity, and module hardware health.
-
Fault Tolerance: Full TMR architecture; operates in a 2-out-of-3 voting configuration to tolerate any single fault.
-
Response Time: Engineered for very high-speed, deterministic response suitable for fast control loops.
-
Certifications: Designed for use in safety systems meeting rigorous standards like IEC 61508, capable of supporting SIL 3 applications.
Key Advantages and Defining Features
-
Dedicated High-Speed Control: Unlike general-purpose analog modules, the ICS Triplex T8431C is optimized for the specific demands of closed-loop servo control, offering deterministic performance essential for turbine and compressor protection.
-
Integrated Feedback Loop: The inclusion of LVDT/RVDT feedback monitoring on the same module allows for continuous validation of the actuator’s actual position against the commanded position, a critical safety feature.
-
Fault-Tolerant Output Stage: The output drivers are triplicated and voted upon, ensuring that a single component failure cannot cause a dangerous, uncontrolled movement of the final control element.
-
Advanced Coil Diagnostics: Real-time monitoring of servo valve coil circuits for opens, shorts, and excessive current protects both the module and the expensive valve from damage.
-
Seamless TMR Integration: As a native part of the Trusted system, it provides a fully integrated, synchronized, and validated control solution, simplifying engineering and validation compared to using third-party interfaces.
Typical Application Cases
-
Turbine Governor Control: Precisely controlling steam or fuel valves to regulate turbine speed and load with fail-safe reliability.
-
Compressor Anti-Surge Control: Rapidly modulating anti-surge valves to protect centrifugal compressors from damaging surge conditions.
-
Critical Process Control Valves: Where high-speed, reliable actuation is required for safety shutdown sequences or precise pressure/flow control.
-
Hydro-Turbine Control: Governing guide vane and gate control for power generation.
-
Aerospace Test Rig Control: Managing fuel and air control valves in safety-critical engine test facilities.
Comparison with Competing Products
-
Versus Standard Analog Output Cards: Modules like the ICS Triplex T8403 are for general 4-20mA outputs. The ICS Triplex T8431C is specialized, offering integrated servo drive power, feedback monitoring, and faster response, which standard cards cannot provide.
-
Versus Third-Party Servo Interfaces: Competing solutions often involve separate, non-redundant servo amplifiers interfaced to a safety controller. The T8431C’s main advantage is its fully integrated TMR design, which eliminates single points of failure in the entire signal chain from processor to valve coil, provides synchronized diagnostics, and reduces system complexity.
-
Versus Other TMR Vendors: While other safety system manufacturers offer similar functionality, the Trusted platform and the T8431C module are particularly renowned and proven in the demanding turbine and compressor control markets.
Selection Suggestions and Important Notes
-
Application-Specific Need: Select the ICS Triplex T8431C only when your application specifically requires high-speed, closed-loop control of a servo or proportional valve within a TMR safety architecture. It is not for standard analog output tasks.
-
Valve Compatibility: Verify compatibility with the electrical specifications (coil resistance, current requirements, feedback type) of your specific servo valve.
-
System Design: Its use necessitates careful system design, including proper tuning of the associated control loop within the Trusted controller and correct configuration of the module’s diagnostic limits.
-
Certification and Validation: Integrating this module into a SIL-rated SIS requires that the entire loop, including the valve and actuator, be validated according to safety standards (IEC 61511).
