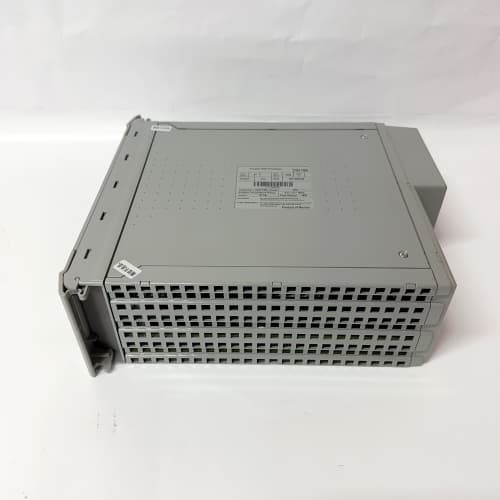

ICS TRIPLEX T8100

Description

Product Overview

The ICS TRIPLEX T8100 is a foundational component of the Trusted® TMR (Triple Modular Redundant) System, a premier safety and critical control platform designed by ICS Triplex (now part of Rockwell Automation). It is not a simple PLC but rather a highly reliable, fault-tolerant controller or system chassis engineered specifically for applications where failure is not an option. The ICS TRIPLEX T8100 provides the robust hardware infrastructure that hosts triple-redundant processors, power supplies, and I/O communication, ensuring continuous operation even in the event of multiple simultaneous failures. Its core purpose is to execute safety instrumented system (SIS) logic, emergency shutdown (ESD) functions, fire and gas (F&G) systems, and turbine control with unparalleled availability. For engineers designing protection layers for hazardous processes, selecting the genuine ICS TRIPLEX T8100 platform is a definitive choice for achieving the highest Safety Integrity Levels (SIL 3) and mitigating operational risks.

Product Parameters

• System Architecture: Triple Modular Redundant (TMR). Three independent channels execute the same logic in parallel, with hardware voting on inputs and outputs.

• Fault Tolerance: Designed to tolerate any single fault (CPU, power, I/O channel) and many multiple faults without causing a system shutdown or compromising the safety function.

• Chassis/Backplane: The T8100 typically refers to the main system chassis or rack that houses:

  • Triple redundant Controller Modules (e.g., T8461, T8480).

  • Triple redundant Power Supply Modules.

  • Communication Interface Modules for peer-to-peer and host connectivity.

• Voting Mechanisms: Employs sophisticated hardware-based voting at the I/O level, ensuring that a correct 2-out-of-3 (2oo3) vote determines the valid state before any output action is taken.

• Diagnostics: Extensive continuous online diagnostics monitor the health of every component across all three channels, detecting failures at the module level.

• Communication: Supports robust communication networks like Trusted Network (TNET) and interfaces for connection to DCS, HMIs, and engineering workstations.

• Certifications: Certified for use in SIL 3 safety applications per IEC 61508/61511 standards by exida, TÜV, and other global agencies.

• Environmental Ratings: Designed for harsh industrial environments with wide operating temperature ranges and high immunity to shock, vibration, and electromagnetic interference.

Advantages and Features

1. Ultimate Safety and Availability: The ICS TRIPLEX T8100 system’s TMR architecture is its defining advantage. It provides an extremely high level of functional safety and system availability, ensuring that safety functions are performed correctly on demand and that nuisance trips are minimized, protecting both people and assets.

2. Online Maintenance and Repair: A cornerstone feature is the ability to perform online module replacement. Any single faulty module (CPU, I/O, power) within the T8100 chassis can be identified, removed, and replaced while the system continues to operate without interruption using the remaining two healthy channels. This maximizes uptime.

3. Comprehensive Fault Detection and Diagnostics: The system performs automatic, continuous self-testing far beyond standard PLCs. It can pinpoint the exact failed component within a channel, providing clear diagnostics to maintenance personnel and enabling true predictive maintenance strategies.

4. Proven in Demanding Applications: The ICS TRIPLEX T8100 platform has a decades-long track record of reliability in the world’s most critical and hostile environments, including offshore platforms, LNG plants, and major refineries. This proven history reduces project risk.

5. Seamless Integration with Control Systems: While acting as an independent safety layer, it is designed to communicate effectively with upstream DCS and SCADA systems. Using the genuine ICS TRIPLEX T8100 ensures compatibility and reliable data exchange for operator awareness and historical logging.

Application Fields and Case Studies

Application Fields:
Exclusively deployed in industries where process safety is paramount and system failure could lead to catastrophic events.

• Oil & Gas: Emergency Shutdown (ESD) systems, Fire & Gas (F&G) detection and control, Turbine Control (TMC), Subsea controls.

• Chemical & Petrochemical: Burner Management Systems (BMS), Reactor trip systems, High-integrity pressure protection systems (HIPPS).

• Power Generation: Turbine overspeed protection, Boiler protection systems.

• Pharmaceutical: Critical batch reaction safety interlocks.

Application Case:
On a deep-water offshore production platform, the ICS TRIPLEX T8100 system forms the core of the platform’s ESD and F&G systems. It monitors hundreds of points for hazardous gas leaks, fire, and unsafe process conditions. During a severe storm, a lightning strike induced a voltage surge that permanently damaged one of the three processor modules in a T8100 chassis. The system’s diagnostics immediately identified the faulty module and raised an alert. However, due to the TMR design, the two remaining healthy channels continued to execute the safety logic without any loss of function. Platform operators scheduled the repair for the next calm weather window, and technicians replaced the failed processor module online, with zero process interruption or reduction in safety coverage.

Comparison with Competing Products

Selection Suggestions and Precautions

1. Conduct a Rigorous Safety Integrity Level (SIL) Assessment: The ICS TRIPLEX T8100 is engineered for the highest demand (SIL 3). Its selection must be justified by a formal process hazard analysis (PHA) and SIL determination. Do not overspecify for lower SIL applications due to cost.

2. Engage with Specialized System Integrators: Designing, programming, and commissioning a TMR safety system requires specialized expertise. Partner with system integrators certified and experienced with the Trusted platform.

3. Plan for Comprehensive Spare Parts: While online replacement is possible, you must maintain a strategic inventory of critical spare modules (CPU, power, common I/O) to enable rapid repair and maintain the system’s fault-tolerant capability.

4. Invest in Training: Ensure operations and maintenance personnel receive thorough training on the unique architecture, diagnostics, and online maintenance procedures for the T8100 system. This is critical to realizing its availability benefits.

5. Design for Proper Segregation: In panel design, maintain strict physical and electrical segregation between the safety system (ICS TRIPLEX T8100) and the basic process control system (BPCS) to ensure independence of the safety layer.
