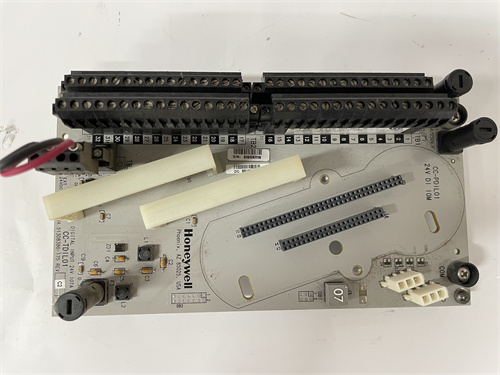

HONEYWELL DC-TDIL01

Description

Product Description

Product Parameters

• Brand/Model: HONEYWELL DC-TDIL01
• Core Input Parameters
  • Number of Channels: 16 isolated digital input channels (2 channels per isolation group)
  • Input Voltage: 24V DC (18-32V operating range)
  • Input Type: Sinking (NPN) / Sourcing (PNP) (configurable per channel group)
  • Response Time: ≤1ms (filtered), ≤0.1ms (unfiltered)
  • Input Current: 2-10mA (sinking), 2-10mA (sourcing)
  • Isolation: Channel-to-group isolation (1500V AC), module-to-backplane isolation (2500V AC)
• System & Diagnostic Parameters
  • Compatible Systems: Honeywell ControlEdge PLC, Safety Manager, Experion PKS (via adapter)
  • Diagnostic Functions: Open/short circuit detection, sensor power loss alerts, channel fault monitoring, self-test
  • Communication Protocol: Ethernet/IP, Modbus TCP, SafetyBUS p
  • Configuration Software: Honeywell ControlEdge Studio, Safety Builder
• Environmental & Physical Parameters
  • Operating Temperature: -40°C ~ +70°C
  • Storage Temperature: -40°C ~ +85°C
  • Vibration Resistance: 5g (10-2000Hz, IEC 60068-2-6 standard)
  • Shock Resistance: 30g (11ms half-sine wave)
  • Power Supply: 24V DC (18-32V) redundant input, power consumption ≤ 10W
  • Protection Grade: IP20 (cabinet installation)
  • Installation Method: DIN 35mm rail mounting (compact form factor)
  • Dimensions: 120mm × 70mm × 30mm

Advantages & Features

1. High-Density Isolated Channels: HONEYWELL DC-TDIL01 packs 16 isolated digital input channels into a compact DIN-rail module, reducing cabinet space requirements and simplifying wiring for systems with numerous discrete sensors (e.g., safety interlock switches, valve position detectors).
2. Fast Response Time & SIL Certification: With a ≤0.1ms unfiltered response time and IEC 61508 SIL 2/SIL 3 certification, HONEYWELL DC-TDIL01 ensures rapid detection of critical safety triggers (e.g., emergency stops) and compliance with global process safety standards for high-risk industrial processes.
3. Dual Input Configuration: Support for both sinking (NPN) and sourcing (PNP) input types (configurable per channel group) eliminates the need for separate modules for different sensor technologies, reducing hardware complexity and costs.
4. Advanced Diagnostics & Hot-Swap Support: The module provides real-time alerts for sensor faults (open/short circuits) and power loss, with hot-swappable design enabling replacement without system shutdown—minimizing downtime for maintenance and improving overall system availability.

Application Fields & Cases

1. Oil Refinery Safety Interlock System: A major oil refinery deployed HONEYWELL DC-TDIL01 modules in its ControlEdge PLC system to monitor emergency stop buttons, valve position limit switches, and fire detection sensors across its crude distillation unit. The module’s fast response time ensured immediate detection of safety triggers, while SIL 3 certification supported compliance with regulatory safety requirements.
2. Chemical Plant Reactor Safety Monitoring: A petrochemical plant integrated HONEYWELL DC-TDIL01 into its Safety Manager SIS to monitor reactor lid interlocks, pressure relief valve position, and cooling system flow switches. The module’s diagnostic capabilities detected a faulty limit switch before it caused a false safety shutdown, reducing unplanned downtime and process disruption.
3. Power Plant Turbine Auxiliary Control: A combined-cycle power plant used HONEYWELL DC-TDIL01 to monitor pump run status, filter clog indicators, and valve limit switches in its turbine auxiliary systems. The high-density channels reduced the number of modules required, while the wide temperature range ensured reliable operation in the turbine enclosure’s harsh environment.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: HONEYWELL DC-TDIL01 is ideal for Honeywell ControlEdge PLC/Safety Manager users requiring high-density, fast-response digital inputs with SIL certification (e.g., refineries, chemical plants with safety-critical processes). For Siemens S7-1200/1500 users, Siemens SM 321 DI Module is preferred for native integration; Allen-Bradley 1734-IB16 suits CompactLogix systems.
2. Precautions:
   • Configure input type (sinking/sourcing) per channel group via ControlEdge Studio to match connected sensors (e.g., NPN proximity sensors for sinking mode, PNP photoelectric sensors for sourcing mode).
   • Use shielded twisted-pair cables for sensor wiring to minimize EMI interference, especially in high-noise industrial environments (e.g., near motors or variable frequency drives).
   • Ensure sensor power supplies are properly grounded to prevent ground loops, which can cause false input signals or diagnostic alarms.
   • Perform quarterly diagnostic checks via the configuration software to verify channel integrity and replace degraded components proactively.
   • Verify ATEX/IECEx certification matches the hazardous zone classification of the installation site (Zone 2 only; avoid use in Zone 1 areas).
