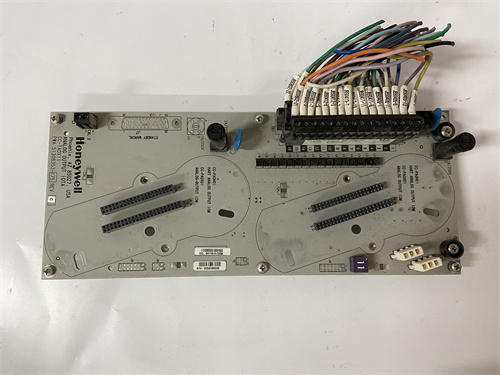

HONEYWELL CC-TAOX61

Description

1. Product Overview

2. Product Parameters

2.1 Core Output Specifications

• Output Channels: 8 isolated analog output channels (independently configurable)
• Supported Signals: 4-20mA DC (sourcing/sinking), 0-10V DC, ±10V DC, 0-5V DC
• Resolution: 16-bit (high-precision signal generation)
• Accuracy: ±0.05% of full scale (calibrated over 0-55°C)
• Output Range:
  • Current: 4-20mA (max load 600Ω), 0-20mA (optional)
  • Voltage: 0-10V DC (min load 5kΩ), ±10V DC (min load 10kΩ), 0-5V DC (min load 5kΩ)
• Response Time: ≤1ms (settling time to 0.01% of full scale)
• Isolation Rating: 2500V AC channel-to-channel, channel-to-ground, and channel-to-power

2.2 Electrical & System Parameters

• Power Supply: 24V DC (supplied by Experion PKS/Safety Manager rack), power consumption ≤12W
• Backplane Interface: Honeywell ControlNet I/O bus, 5Mbps communication rate
• Diagnostic Features: Open-loop detection (current outputs), short-circuit protection, overrange/underrange alerts, module self-test (BIT), LED per-channel status indicators
• Configuration: Software-configurable signal type, range, and fail-safe state (last value/zero/safety value)
• Redundancy Support: Compatible with Honeywell 1oo2 fault-tolerant SIS architectures

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -20°C to +60°C (industrial-grade range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (rack-mounted)
• Vibration Resistance: 5-2000Hz, 2g (IEC 60068-2-6, X/Y/Z axes)
• Shock Resistance: 15g (11ms half-sine wave, IEC 60068-2-27)
• Mounting: Honeywell Experion PKS/Safety Manager rack-mounted, hot-swappable (plug-in module)
• Dimensions: 175mm (W) × 125mm (H) × 35mm (D), standard rack compatibility

2.4 Certifications & Compliance

• Safety Certifications: SIL 3 (IEC 61508/61511), TÜV Rheinland, ATEX Zone 2 (Ex nA IIC T4)
• Industry Certifications: CE, UL/cUL Class 1 Div 2, FCC Class A, RoHS
• Compatibility: Honeywell Experion PKS C200/C300 controllers, Safety Manager SIS, third-party actuators/valves
• MTBF: ≥1,200,000 hours (per Telcordia SR-332 standards)

3. Advantages & Features

1. High-Precision Signal Generation: 16-bit resolution and ±0.05% accuracy of HONEYWELL CC-TAOX61 ensure precise control of field actuators, reducing process variability and improving product quality in critical applications (e.g., pharmaceutical batch manufacturing).
2. Multi-Signal Compatibility: Support for 4-20mA, 0-10V, ±10V, and 0-5V signals eliminates the need for multiple specialized modules, simplifying system architecture and reducing rack space requirements.
3. Comprehensive Isolation: 2500V AC isolation between channels, ground, and power protects HONEYWELL CC-TAOX61 from electrical interference and surge damage, ensuring reliable operation in noisy industrial environments (e.g., near high-voltage equipment or VFDs).
4. Advanced Diagnostics & Fail-Safe Control: Open-loop detection, short-circuit protection, and configurable fail-safe states enable proactive maintenance and ensure safe system behavior during module or power failures.
5. Hot-Swappable Design: HONEYWELL CC-TAOX61 can be replaced in live systems without disrupting control or safety operations, minimizing maintenance downtime and maximizing system availability.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: Refinery distillation column valve control, pipeline flow regulation, wellhead pressure control
• Petrochemical: Chemical reactor temperature/pressure control, batch process flow valve actuation, storage tank level regulation
• Power Generation: Turbine fuel injection control, boiler steam pressure regulation, renewable energy grid voltage control
• Pharmaceutical: Batch reactor mixing speed control, cleanroom air pressure regulation, chemical dosing pump control

4.2 Typical Cases

1. Refinery Distillation Column Control: A major U.S. refinery deployed HONEYWELL CC-TAOX61 modules in its Experion PKS system to control 32 flow and level control valves across 4 distillation columns. The module’s 16-bit resolution and ±0.05% accuracy enabled precise valve positioning, reducing energy consumption by 8% and improving product separation efficiency by 5%.
2. Chemical Reactor Temperature Control: A European chemical plant integrated HONEYWELL CC-TAOX61 into its Safety Manager SIS to regulate temperature in 12 batch reactors via 4-20mA signals to heating/cooling control valves. The module’s fail-safe configuration (set to “zero output” during fault) prevented overheating during a power surge, avoiding a $200,000 equipment damage and ensuring compliance with EU safety regulations.
3. Power Plant Turbine Fuel Control: An Asian power plant used HONEYWELL CC-TAOX61 to adjust fuel injection rates in gas turbines via 0-10V signals. The module’s fast response time (≤1ms) ensured real-time fuel control during load changes, improving turbine efficiency by 3% and reducing emissions by 2%.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Precision Requirements: Choose HONEYWELL CC-TAOX61 for applications requiring 16-bit resolution and ±0.05% accuracy (e.g., pharmaceutical batch control, refinery distillation); 14-bit modules suffice for non-critical control tasks (e.g., water treatment).
2. Safety Level & Redundancy Needs: Opt for HONEYWELL CC-TAOX61 for SIL 3 SIS applications requiring fail-safe control and redundant operation (e.g., power plant turbine control); SIL 2 modules are suitable for low-risk industrial environments (e.g., HVAC control).
3. System Compatibility: Select HONEYWELL CC-TAOX61 for integration with Honeywell Experion PKS/Safety Manager systems to ensure seamless communication and diagnostic support; third-party AO modules may lack native compatibility and require custom driver software.

6.2 Precautions

1. Installation Guidelines:
   • Install HONEYWELL CC-TAOX61 in Honeywell-certified racks only; ensure proper grounding (≤4Ω) to minimize electromagnetic interference (EMI) with analog outputs.
   • Use shielded twisted-pair cables for 4-20mA/voltage signals (maximum distance 1000m for 4-20mA) and ground the cable shield at one end to reduce noise interference.
2. Configuration Notes:
   • Calibrate HONEYWELL CC-TAOX61 via Experion Configuration Studio before commissioning to ensure accuracy over the operating temperature range.
   • Configure fail-safe states (last value/zero/safety value) based on site safety procedures (e.g., set to “safety value” for reactor control valves).
3. Troubleshooting:
   • For inaccurate output signals: Check load impedance (ensure it meets module specifications), verify signal wiring (no short circuits), and recalibrate the module if necessary.
   • For open-loop alarms: Inspect actuator wiring and connections (e.g., broken wires in valve positioners) and replace faulty components promptly.
4. Maintenance:
   • Inspect module connectors annually for corrosion or loose pins; clean with compressed air to remove dust and debris.
   • Recalibrate HONEYWELL CC-TAOX61 every 2 years (or per site maintenance protocols) to maintain accuracy and compliance with industry standards.
   • Stock spare HONEYWELL CC-TAOX61 modules for critical applications—lead times for Honeywell industrial automation components may exceed 8 weeks.
