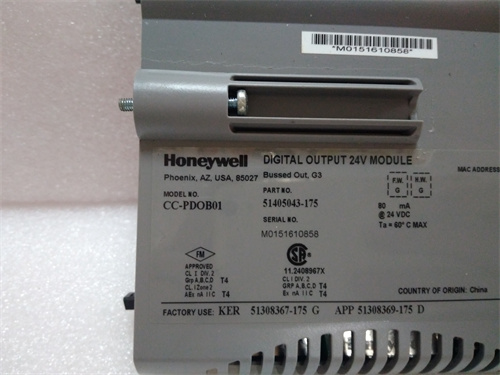

HONEYWELL CC-PDOB01

Description

1. Product Overview

2. Product Parameters

2.1 Core Output Specifications

• Output Channels: 16 isolated digital output channels (2 channels per group, galvanic isolation between groups)
• Output Type: Form A (NO) electromechanical relays, 24V DC/230V AC rated
• Output Rating: 5A per channel (resistive load), 2A per channel (inductive load)
• Switching Time: ≤10ms (on/off transition)
• Isolation Rating: 2500V AC between channels (group-to-group), 3000V AC between module and backplane
• Contact Life: ≥100,000 operations (mechanical), ≥100,000 cycles (electrical at rated load)

2.2 Electrical & System Parameters

• Power Supply: 24V DC (supplied by Experion PKS/Safety Manager rack), power consumption ≤15W
• Backplane Interface: Honeywell ControlNet I/O bus, 5Mbps communication rate
• Diagnostic Features: Open/short-circuit detection, contact wear monitoring, module self-test (BIT), LED per-channel status indicators
• Safety Configuration: Configurable fail-safe state (de-energize-to-safe)
• Redundancy Support: Compatible with Honeywell 1oo2 fault-tolerant SIS architectures

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -20°C to +60°C (industrial-grade range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (rack-mounted)
• Vibration Resistance: 5-2000Hz, 2g (IEC 60068-2-6, X/Y/Z axes)
• Shock Resistance: 15g (11ms half-sine wave, IEC 60068-2-27)
• Mounting: Honeywell Experion PKS/Safety Manager rack-mounted, hot-swappable (plug-in module)
• Dimensions: 175mm (W) × 125mm (H) × 35mm (D), standard rack compatibility

2.4 Certifications & Compliance

• Safety Certifications: SIL 3 (IEC 61508/61511), TÜV Rheinland, ATEX Zone 2 (Ex nA IIC T4)
• Industry Certifications: CE, UL/cUL Class 1 Div 2, FCC Class A, RoHS
• Compatibility: Honeywell Experion PKS C200/C300 controllers, Safety Manager SIS, third-party 24V DC/230V AC field devices
• MTBF: ≥1,200,000 hours (per Telcordia SR-332 standards)

3. Advantages & Features

1. SIL 3 Fault Tolerance: HONEYWELL CC-PDOB01 is certified for SIL 3 applications and integrates with Honeywell’s redundant SIS architectures, ensuring reliable actuation of safety-critical devices (e.g., ESD valves) with no single point of failure.
2. Isolated Channel Design: Galvanic isolation between channel groups and backplane protects against electrical interference and surge damage, critical for operation in noisy industrial environments (e.g., near VFDs or high-voltage equipment).
3. Comprehensive Diagnostics: Per-channel fault detection (open/short-circuit) and contact wear monitoring enable proactive maintenance, reducing unplanned downtime and extending the module’s service life.
4. Hot-Swappable & Easy to Maintain: HONEYWELL CC-PDOB01 supports hot-swapping in live systems, allowing module replacement without disrupting safety operations. Front-panel LED indicators simplify troubleshooting, minimizing repair time.
5. Dual-Voltage Compatibility: 24V DC/230V AC output rating eliminates the need for multiple modules, reducing rack space requirements and system complexity in mixed-voltage environments.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: Refinery ESD valve control, offshore platform pump shutdown, LNG plant fire suppression system actuation
• Petrochemical: Chemical reactor safety interlock relays, storage tank overfill protection valves, batch process sequencing switches
• Power Generation: Turbine auxiliary system control, boiler safety interlocks, renewable energy grid disconnect switches
• Pharmaceutical: Cleanroom safety door locks, hazardous material handling equipment control, batch manufacturing process actuators

4.2 Typical Cases

1. Refinery ESD Valve Control: A major U.S. refinery deployed HONEYWELL CC-PDOB01 modules in its Safety Manager SIS to control 64 ESD valves across 4 process units. The module’s SIL 3 certification and fail-safe configuration ensured immediate valve closure during a pipeline pressure anomaly, preventing a potential explosion and $5M in equipment damage.
2. Chemical Reactor Interlock Actuation: A European chemical plant integrated HONEYWELL CC-PDOB01 into its Experion PKS system to actuate safety interlock relays for 12 batch reactors. The module’s isolated channels prevented cross-talk between high-voltage and low-voltage devices, eliminating false shutdowns and increasing production uptime by 15%.
3. Power Plant Turbine Control: An Asian power plant used HONEYWELL CC-PDOB01 to control turbine lubrication pump switches and cooling system valves. The module’s hot-swappable design allowed maintenance crews to replace a faulty channel group during scheduled downtime, avoiding unplanned outages and ensuring continuous power generation.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Safety Level & Redundancy Needs: Choose HONEYWELL CC-PDOB01 for SIL 3 SIS applications requiring redundant actuation (e.g., refineries, power plants); SIL 2 modules suffice for low-risk industrial environments (e.g., water treatment).
2. Load Capacity Requirements: Opt for HONEYWELL CC-PDOB01 if controlling high-current devices (up to 5A resistive load); smaller modules are suitable for low-power switches (≤3A).
3. System Compatibility: Select HONEYWELL CC-PDOB01 for integration with Honeywell Experion PKS/Safety Manager systems to ensure seamless communication and diagnostic support; third-party modules may lack SIL certification or compatibility with Honeywell safety protocols.

6.2 Precautions

1. Installation Guidelines:
   • Install HONEYWELL CC-PDOB01 in Honeywell-certified racks only; ensure proper grounding (≤4Ω) to minimize electromagnetic interference (EMI) with relay outputs.
   • Use 16AWG or larger wiring for high-current outputs (≥2A) to prevent overheating, and comply with local electrical codes for hazardous area installations (e.g., Zone 2/Class 1 Div 2).
2. Configuration Notes:
   • Set fail-safe state (de-energize-to-safe) via Experion Configuration Studio to align with site safety procedures (e.g., valve closure during power loss).
   • Configure contact wear monitoring alerts to trigger maintenance notifications before relay failure, reducing unplanned downtime.
3. Troubleshooting:
   • For output faults: Check load current (ensure it does not exceed rated capacity), verify wiring for short circuits, and use LED indicators to identify faulty channels.
   • For communication errors: Verify backplane connections and update module firmware (via Experion Configuration Studio) to ensure compatibility with the host controller.
4. Maintenance:
   • Inspect relay contacts every 12 months (or after 100,000 operations) for wear; replace the module if contact resistance exceeds 100mΩ.
   • Clean module connectors with compressed air annually to remove dust and debris, and test fail-safe functionality quarterly to ensure compliance with safety standards.
   • Stock spare HONEYWELL CC-PDOB01 modules for critical applications—lead times for Honeywell SIS components may exceed 8 weeks.
