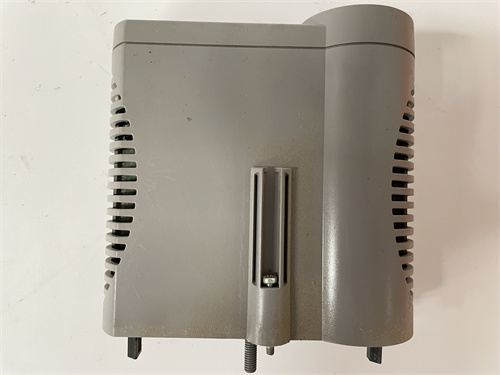

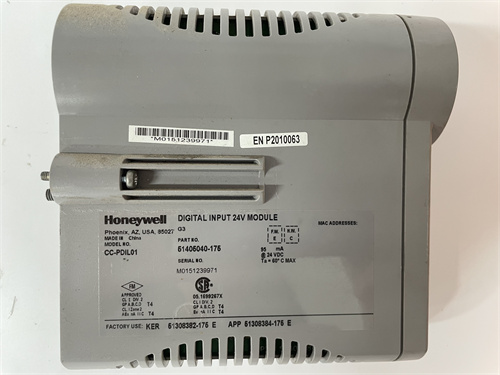

HONEYWELL CC-PDIL01

Description

Product Description

Product Parameters

• Brand/Model: HONEYWELL CC-PDIL01
• Core Input Parameters
  • Number of Channels: 16 isolated digital input channels (2 channels per isolation group)
  • Input Voltage: 24V DC (18-32V operating range)
  • Input Type: Sinking (NPN) or sourcing (PNP) configurable per channel group
  • Response Time: ≤1ms (filtered), ≤0.1ms (unfiltered)
  • Isolation: Channel-to-group isolation (1500V AC), module-to-backplane isolation (2500V AC)
• System & Diagnostic Parameters
  • Compatible Systems: Honeywell Experion PKS, ControlEdge PLC, Safety Manager
  • Diagnostic Functions: Open/short circuit detection, sensor power loss alerts, channel fault monitoring, self-test
  • Communication Protocol: Honeywell proprietary FTE (Fault-Tolerant Ethernet), Ethernet/IP
  • Configuration Software: Honeywell Experion Engineering Environment, ControlEdge Studio
• Environmental & Physical Parameters
  • Operating Temperature: -40°C ~ +70°C
  • Storage Temperature: -40°C ~ +85°C
  • Vibration Resistance: 5g (10-2000Hz, IEC 60068-2-6 standard)
  • Shock Resistance: 30g (11ms half-sine wave)
  • Power Supply: 24V DC (18-32V) redundant input, power consumption ≤ 10W
  • Protection Grade: IP20 (cabinet installation)
  • Installation Method: Honeywell standard rack mounting (DIN 35mm rail compatible)
  • Dimensions: 140mm × 120mm × 45mm

Advantages & Features

1. High-Density Isolated Channels: HONEYWELL CC-PDIL01 packs 16 isolated digital input channels into a compact module, reducing cabinet space requirements and simplifying wiring for systems with numerous discrete sensors (e.g., safety interlock switches, level detectors).
2. Fast Response Time & SIL Certification: With a ≤0.1ms unfiltered response time and IEC 61508 SIL 2/SIL 3 certification, HONEYWELL CC-PDIL01 ensures rapid detection of critical discrete signals (e.g., emergency stop presses) and compliance with safety standards for high-risk industrial processes.
3. Hazardous Environment Compliance: ATEX/IECEx Zone 2 certification allows HONEYWELL CC-PDIL01 to operate in explosive atmospheres (e.g., refinery storage areas, chemical plant process zones), meeting strict regulatory requirements for hazardous location installations.
4. Advanced Diagnostics & Hot-Swap Support: The module provides real-time alerts for sensor faults (open/short circuits) and power loss, with hot-swappable design enabling replacement without system shutdown—minimizing downtime for maintenance and improving overall system availability.

Application Fields & Cases

1. Oil Refinery Safety Interlock System: A major oil refinery deployed HONEYWELL CC-PDIL01 modules in its Experion PKS system to monitor emergency stop buttons, valve position limit switches, and fire detection sensors across its crude distillation unit. The module’s fast response time ensured immediate detection of safety triggers, while SIL 3 certification supported compliance with global process safety regulations.
2. Chemical Plant Reactor Safety Monitoring: A petrochemical plant integrated HONEYWELL CC-PDIL01 into its ControlEdge PLC system to monitor reactor lid interlocks, pressure relief valve position, and cooling system flow switches. The module’s diagnostic capabilities detected a faulty limit switch before it caused a false safety shutdown, reducing unplanned downtime.
3. Power Plant Turbine Auxiliary Control: A combined-cycle power plant used HONEYWELL CC-PDIL01 to monitor pump run status, filter clog indicators, and valve limit switches in its turbine auxiliary systems. The high-density channels reduced the number of modules required, while the wide temperature range ensured reliable operation in the turbine enclosure’s harsh environment.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: HONEYWELL CC-PDIL01 is ideal for Honeywell Experion PKS/ControlEdge PLC users requiring high-density, fast-response digital inputs with SIL 2/SIL 3 certification (e.g., refineries, chemical plants). For Emerson DeltaV users, Emerson’s DI module is preferred for native integration; Siemens S7-400 DI modules suit Siemens TIA ecosystem users.
2. Precautions:
   • Configure input type (sinking/sourcing) per channel group via Honeywell’s configuration software to match connected sensors (e.g., NPN sensors for sinking mode, PNP sensors for sourcing mode).
   • Use shielded twisted-pair cables for sensor wiring to minimize EMI interference, especially in high-noise industrial environments (e.g., near motors or variable frequency drives).
   • Ensure sensor power supplies are properly grounded to prevent ground loops, which can cause false input signals or diagnostic alarms.
   • Perform quarterly diagnostic checks via the configuration software to verify channel integrity and replace degraded components proactively.
   • Verify ATEX/IECEx certification matches the hazardous zone classification of the installation site (Zone 2 only; avoid use in Zone 1 areas).
