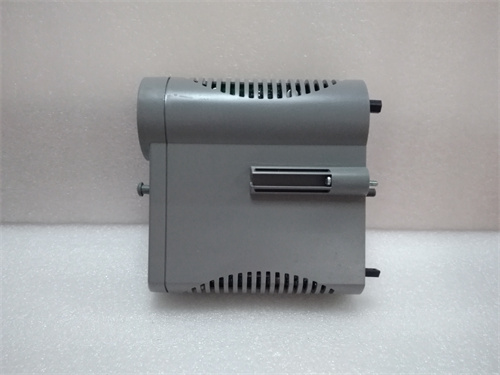

HONEYWELL CC-PAOX01

The HONEYWELL CC-PAOX01 is a high-performance analog output module designed for the Honeywell Experion Process Knowledge System (PKS) and its C Series I/O family. This module serves as a critical interface, converting digital control commands from the controller into precise analog current signals to command field devices such as control valves, variable speed drives, and actuators.

Product Description

The HONEYWELL CC-PAOX01 is a vital component within Honeywell’s distributed control architecture. Its primary function is to execute the final stage of a control loop by translating digital setpoints from the Control Processor into a reliable 4-20 mA analog output signal. When system engineers integrate the HONEYWELL CC-PAOX01, they are deploying a module built for deterministic performance and high channel availability. This module ensures that critical process adjustments are communicated accurately and without delay to the final control element. Incorporating the HONEYWELL CC-PAOX01 into a C Series rack provides robust and isolated output channels for continuous process control applications. Its design emphasizes data integrity and fault resilience, key characteristics for maintaining operational stability. The reliable operation of the HONEYWELL CC-PAOX01 is fundamental to closed-loop control in complex industrial processes.

Product Parameters

• Manufacturer: Honeywell Process Solutions.

• System Compatibility: Honeywell Experion PKS C Series I/O.

• Model: CC-PAOX01.

• Module Type: Analog Output (AO) Module.

• Number of Channels: Typically 4 or 8 channels per module (specific count must be verified for this exact model).

• Output Signal: 4 to 20 mA DC, with HART communication capability per channel.

• Resolution: High-resolution digital-to-analog conversion (e.g., 16-bit or higher).

• Communication: Interfaces with the C Series Fieldbus Interface Module (FIM) and controller via a proprietary high-speed backplane bus.

• Isolation: Channel-to-channel and channel-to-system isolation for safety and noise immunity.

• Diagnostics: Comprehensive onboard diagnostics for fault detection (open circuit, short circuit, module health).

• Hot Swappable: Supports replacement without powering down the entire I/O subsystem (when used in a redundant pair and configured correctly).

Advantages and Features

• High Precision & Stability: Provides accurate and stable analog output signals, essential for precise process control and minimizing variability.

• Integrated HART Support: Enables simultaneous analog output and digital HART communication for device configuration, diagnostics, and multivariable data access without needing separate hardware.

• Advanced Diagnostics: Continuous self-monitoring and detailed fault reporting to the control system, enabling predictive maintenance and reducing troubleshooting time.

• Enhanced Availability: Features like hot-swap capability (in redundant configurations) and high MTBF (Mean Time Between Failures) contribute to exceptional system availability.

• Native Experion Integration: The HONEYWELL CC-PAOX01 is fully recognized and configured within the Experion Control Builder environment, offering seamless software integration and loop configuration.

Application Cases in Industry

• Oil & Gas Refining: Controlling flow control valves on distillation columns, reactor feed lines, and product blending systems.

• Chemical Processing: Regulating the output to control valves for precise dosing of reactants, temperature control via coolant valves, and pressure regulation.

• Pharmaceutical & Biotechnology: Managing control valves for sterile utilities (clean steam, WFI) and critical process parameters in bioreactors.

• Power Generation: Operating feedwater control valves, turbine bypass valves, and other critical final control elements in boiler and steam cycle management.

Comparison with Competing Products

Competing analog output modules from Emerson (DeltaV CHARMs), Siemens (ET 200SP AO), and ABB (S800 I/O) offer similar core functionality. The HONEYWELL CC-PAOX01 distinguishes itself through its deep, native integration with the Honeywell Experion PKS ecosystem, offering superior engineering efficiency within that environment. Its diagnostic depth and inherent support for HART on every channel are significant advantages. Compared to generic analog output cards, the Honeywell module provides a deterministic performance guarantee within the C Series architecture and offers more robust isolation and built-in safety features designed for process industry requirements.

Selection Suggestions and Precautions

1. Verify System & FIM Compatibility: Ensure the HONEYWELL CC-PAOX01 is compatible with your specific C Series FIM model (e.g., CC-FIMX01) and the version of Experion PKS software you are running.

2. Confirm Channel Configuration: Verify the exact number of channels and the required output characteristics (4-20mA, HART) to ensure this module meets your application’s I/O count.

3. Plan for Redundancy: For critical control loops, plan to install the module in a redundant pair (if supported by the specific model) and ensure the power supply and FIM are also configured for redundancy.

4. Observe Installation Guidelines: Follow Honeywell’s guidelines for module installation, grounding, and cable separation to ensure signal integrity and meet noise immunity specifications.

5. Source from Authorized Channels: To guarantee authenticity, firmware compatibility, and full technical support, always procure the HONEYWELL CC-PAOX01 module from Honeywell or its authorized industrial automation distributors.
