HONEYWELL CC-PAOH01

Description

Product Description

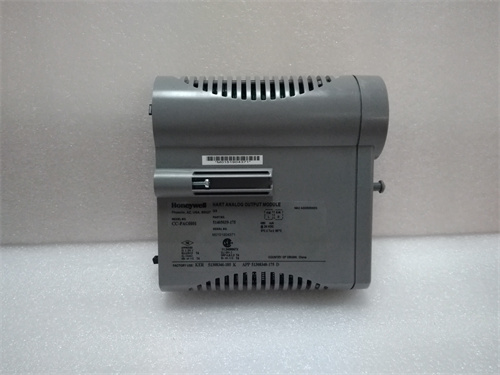

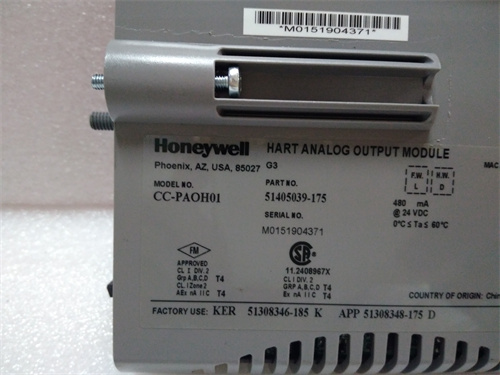

The HONEYWELL CC-PAOH01 is a high-performance analog output module designed for the Honeywell Experion Process Knowledge System (PKS) and C300 controller family. This module is part of the Series C I/O family and provides precision analog control signals to field devices such as positioners, variable frequency drives, and control valves, forming the final link between the control strategy and the physical process. The CC-PAOH01 delivers exceptional reliability and signal integrity in demanding continuous process environments. As an original Honeywell product, this module guarantees full compatibility with C Series controllers and termination assemblies, ensuring accurate and stable output signals for critical control loops.

Product Parameters and Specifications

The HONEYWELL CC-PAOH01 is characterized by its high-resolution output capability and robust industrial construction. Below are the typical specifications for this model:

• Device Type: Analog Output Module for Experion PKS C Series I/O.

• Number of Channels: 8 analog output channels.

• Signal Types: 4-20 mA, 0-20 mA, with HART protocol pass-through capability.

• Resolution: 16-bit DAC for precise output signal generation.

• Accuracy: ±0.1% of span typical, ensuring accurate valve positioning and control.

• Load Resistance: Capable of driving up to 750 ohms (with 24V loop power).

• Isolation: 500V DC channel-to-channel and channel-to-backplane isolation.

• Diagnostics: Comprehensive self-diagnostics with open-loop detection and output signal monitoring.

• Indication: Per-channel status LEDs for quick troubleshooting.

• Hot Swappable: Supports module replacement without disturbing field wiring.

• Mounting: Plugs directly into C Series I/O rack or termination assembly.

Advantages and Features

Integrating the HONEYWELL CC-PAOH01 into your DeltaV system provides significant operational advantages. Its primary feature is the built-in HART communication capability, allowing bidirectional communication with smart field devices without additional hardware or wiring. The CC-PAOH01 incorporates advanced signal generation circuitry that ensures stable output even under varying load conditions and ambient temperatures. Each channel on the HONEYWELL CC-PAOH01 features individual watchdog timers and failsafe configuration options, allowing the module to drive outputs to predefined safe states in the event of communication loss. The hot-swappable design enables replacement without disturbing field wiring or interrupting power to the I/O card, maximizing process availability in critical applications. Comprehensive diagnostics, including open wire detection and output monitoring, are continuously reported to the control system for proactive maintenance.

Application Fields and Use Cases

The HONEYWELL CC-PAOH01 is extensively deployed across process industries requiring precise final element control and smart device integration. Common application fields include:

• Oil and Gas Production: Controlling choke valves on wellheads and regulating separator pressure through precision output signals to I/P transducers.

• Refining and Petrochemical: Positioning control valves in distillation columns, reactor systems, and product blending operations.

• Chemical Manufacturing: Adjusting feed rates through variable frequency drives and controlling reactant addition via precise valve positioning.

• Power Generation: Regulating turbine governor valves and controlling boiler feedwater systems.

• Pharmaceutical Manufacturing: Controlling critical process parameters in bioreactors and purification systems.

In these environments, the CC-PAOH01 serves as the trusted interface between the control system and the final control elements that directly impact process performance.

Comparison with Competiting Products

When compared to analog output modules from other DCS platforms, the HONEYWELL CC-PAOH01 distinguishes itself through native integration with the Experion PKS ecosystem and advanced HART capabilities. While competing modules may offer similar analog output specifications, the CC-PAOH01 provides seamless asset management integration through Honeywell’s Asset Manager, enabling predictive maintenance without additional system components. The HONEYWELL CC-PAOH01 features superior per-channel isolation compared to many multiplexed designs, eliminating ground loop issues that can plague installations with long field wiring runs. Furthermore, the module’s ability to simultaneously transmit analog control signals and digital HART data over the same wire pair provides significant installed cost advantages over systems requiring separate wiring for configuration and diagnostics.

Selection Suggestions and Precautions

When selecting the HONEYWELL CC-PAOH01 for your project, first verify the loop power requirements of your field devices to ensure the module’s internal power supply (if used) can drive the total loop resistance. Confirm that the CC-PAOH01 firmware revision is compatible with your Experion PKS system version, particularly for HART functionality. Before installation, inspect the module for any physical damage to connectors or components. When handling the module, follow proper ESD precautions. Ensure the module is properly seated in the correct slot per your system documentation. For the HONEYWELL CC-PAOH01, proper wiring practices are essential; use shielded twisted-pair cables for current outputs and maintain proper segregation from high-power AC lines. Configure failsafe options for each channel based on your process safety requirements before placing the module into service. Always source genuine HONEYWELL CC-PAOH01 modules from authorized distributors to guarantee authenticity and warranty coverage. Finally, consider stocking spare modules for critical loops to minimize potential downtime in the event of hardware failure.
