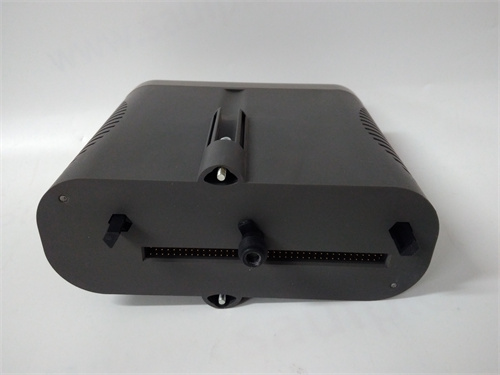

HONEYWELL 8C-PCNT02

Product Parameters

• Model: HONEYWELL 8C-PCNT02

• Type: Controller Module / C300 Controller

• Product Family: Honeywell Experion PKS / Series C I/O

• Processor: High-performance embedded processor optimized for real-time control execution

• Control Execution: Supports multiple control loops, logic execution, sequence control, and advanced regulatory control strategies

• I/O Capacity: Supports communication with Series C I/O modules via the I/O backplane; capable of managing hundreds to thousands of I/O points depending on system configuration

• Communication: Interfaces with Experion PKS servers, engineering workstations, and other controllers via redundant control network (FTE – Fault Tolerant Ethernet)

• Redundancy: Supports 1:1 controller redundancy with automatic failover for high availability applications

• Programming Languages: Supports IEC 61131-3 languages including Function Block Diagram (FBD), Ladder Logic (LD), Structured Text (ST), and Sequential Function Chart (SFC)

• Memory: Enhanced non-volatile memory capacity for larger applications, more complex control strategies, and expanded historical data retention

• Mounting: Mounts in Series C I/O rack or chassis; supports hot-swappable replacement for redundancy configurations

• Status Indication: Comprehensive LED indicators for controller status, network status, redundancy status, and fault conditions

• Diagnostics: Extensive self-diagnostics, fault logging, and health monitoring capabilities

• Environmental Rating: Designed for industrial control room environments

Advantages and Features

The HONEYWELL 8C-PCNT02 offers several technical advantages that make it the preferred controller for demanding Experion PKS-based automation applications:

• Enhanced Processing Capability: The HONEYWELL 8C-PCNT02 provides enhanced processing power compared to other variants within the C300 family, enabling execution of more complex control strategies, faster loop update rates, and support for larger I/O counts. This capability is essential for applications requiring advanced process control (APC), model predictive control (MPC), or high-speed logic execution.

• C300 Control Platform Integration: The HONEYWELL 8C-PCNT02 is the core processor for Honeywell’s C300 controller architecture. This platform provides a scalable, high-performance control solution that seamlessly integrates with Series C I/O modules, Experion PKS servers, and field devices. The controller’s design balances processing power with reliability, making it suitable for applications ranging from complex unit control to enterprise-wide automation.

• Fault Tolerant Ethernet (FTE) Communication: The HONEYWELL 8C-PCNT02 utilizes Honeywell’s proprietary Fault Tolerant Ethernet (FTE) technology, which provides network redundancy without requiring complex configuration or special switches. FTE enables seamless communication with Experion servers, engineering stations, and other controllers, ensuring continuous operation even in the event of network path failures.

• Controller Redundancy: For mission-critical applications, the HONEYWELL 8C-PCNT02 supports 1:1 controller redundancy with automatic failover. In redundant configurations, primary and backup controllers synchronize execution, and in the event of a primary controller failure, the backup takes over without process interruption. This capability is essential for applications where downtime is unacceptable.

• Expanded Memory Capacity: The HONEYWELL 8C-PCNT02 features enhanced memory capacity, enabling larger control applications, more extensive historical data retention, and support for complex sequence logic. This expanded memory is particularly beneficial for facilities with extensive automation requirements or those implementing advanced optimization strategies.

• Online Configuration and Tuning: The HONEYWELL 8C-PCNT02 supports online configuration changes, allowing engineers to modify control strategies, adjust tuning parameters, and add I/O points without stopping the controller or disrupting the process. This capability significantly reduces downtime during system optimization and maintenance activities.

• Integrated Control Execution: The controller executes a wide range of control strategies, including regulatory control, logic control, sequence control, and advanced process control algorithms. The HONEYWELL 8C-PCNT02 provides deterministic execution with fast loop update rates, ensuring precise control even in demanding applications.

• Comprehensive Diagnostics: The HONEYWELL 8C-PCNT02 features extensive self-diagnostics that continuously monitor controller health, communication status, memory integrity, and I/O communications. Diagnostic information is reported to the Experion system, enabling proactive maintenance and rapid fault identification.

• Security Features: The C300 controller platform, including the HONEYWELL 8C-PCNT02, incorporates security features designed to protect against unauthorized access, configuration changes, and cyber threats. These features align with industry standards for industrial control system cybersecurity.

Application Cases

The HONEYWELL 8C-PCNT02 is deployed across industries where demanding, high-performance process control is essential:

• Refining and Petrochemical: Used as the primary controller for complex process units including crude distillation units, fluid catalytic crackers (FCC), hydrocrackers, and reformers. The HONEYWELL 8C-PCNT02 executes advanced control strategies, model predictive control, and optimization algorithms that maximize yield, improve product quality, and ensure safe operation in these high-value, high-complexity applications.

• Chemical Processing: Deployed in large-scale continuous and batch chemical manufacturing facilities where controllers manage complex reactor trains, separation systems, and product purification. The HONEYWELL 8C-PCNT02 supports the precise control, recipe management, and advanced optimization required for consistent product quality and operational efficiency.

• Power Generation: Installed in combined cycle power plants, supercritical coal-fired units, and cogeneration facilities where controllers manage complex coordination between gas turbines, steam turbines, heat recovery steam generators (HRSG), and balance-of-plant systems. The HONEYWELL 8C-PCNT02 provides the deterministic execution and high availability required for reliable power generation.

• Pharmaceutical Manufacturing: Used in large-scale biopharmaceutical facilities where controllers manage complex fermentation suites, purification trains, and utility systems. The HONEYWELL 8C-PCNT02 supports the validation, documentation, and audit trail requirements essential for cGMP compliance in regulated environments.

• LNG and Gas Processing: Deployed in liquefied natural gas (LNG) facilities, gas processing plants, and NGL recovery units where controllers manage complex cryogenic processes, compression systems, and fractionation trains. The HONEYWELL 8C-PCNT02 provides the processing power and reliability required for these demanding applications.

• Minerals and Metals: Found in smelters, refineries, and processing facilities where controllers manage complex material handling, furnace control, and refining operations. The HONEYWELL 8C-PCNT02 supports the high-speed logic and coordination required for these applications.

Comparison with Competing Products

When compared to alternative DCS controllers from other manufacturers, the HONEYWELL 8C-PCNT02 offers distinct advantages:

• Processing Power and Memory: The HONEYWELL 8C-PCNT02 provides enhanced processing capabilities and expanded memory compared to standard controller variants, making it particularly well-suited for applications requiring advanced control, large I/O counts, or complex logic. Competing controllers may require multiple processors or external computing platforms to achieve equivalent performance.

• Experion Integration Depth: The HONEYWELL 8C-PCNT02 is optimized for Honeywell’s Experion PKS environment, providing deeper integration with Experion’s alarm management, asset monitoring, advanced process control, operator interface, and historian capabilities than competing controllers offer with their respective systems.

• Fault Tolerant Ethernet (FTE): Honeywell’s FTE technology, implemented in the HONEYWELL 8C-PCNT02, provides a unique approach to network redundancy that simplifies infrastructure and reduces complexity compared to traditional network redundancy schemes used by competitors. FTE eliminates the need for complex switch configurations and provides seamless failover.

• Scalability: The C300 platform, including the HONEYWELL 8C-PCNT02, offers a consistent architecture that scales from small unit control to enterprise-wide automation. This scalability provides advantages over competing systems that may have discontinuities or architecture changes between small and large system configurations.

• Redundancy Implementation: The 1:1 controller redundancy implementation in the HONEYWELL 8C-PCNT02 provides automatic, bumpless failover without requiring external switching devices or complex programming. The redundant pair appears as a single controller to the engineering tools and operator interface, simplifying system management.

• Cybersecurity Features: The HONEYWELL 8C-PCNT02 incorporates security features aligned with industrial cybersecurity standards, providing advantages for facilities requiring robust protection against cyber threats. Honeywell’s approach to controller security includes secure communication, access control, and integrity verification.

Selection Suggestions and Precautions

When selecting and installing the HONEYWELL 8C-PCNT02, consider the following guidelines:

• Verify Application Requirements: The HONEYWELL 8C-PCNT02 is designed for demanding applications requiring enhanced processing power and memory capacity. Assess your application’s control complexity, I/O count, loop update rate requirements, and future expansion plans to determine whether the enhanced capabilities of the HONEYWELL 8C-PCNT02 are required or if a standard controller variant would be sufficient.

• Confirm System Architecture Compatibility: The HONEYWELL 8C-PCNT02 is designed for use within Honeywell Experion PKS and Series C I/O architectures. Confirm that your system includes the appropriate I/O racks, power supplies, communication infrastructure, and engineering tools required to support this controller. Consult Honeywell system documentation for architecture guidelines and capacity planning.

• Determine Redundancy Requirements: Evaluate whether 1:1 controller redundancy is required for your application. Critical processes where downtime results in safety risks, production loss, or environmental impact should consider redundant configurations with the HONEYWELL 8C-PCNT02. For non-critical applications, single controller configurations may be sufficient.

• Plan Network Infrastructure: The HONEYWELL 8C-PCNT02 utilizes Fault Tolerant Ethernet (FTE) for communication. Plan network infrastructure to support FTE requirements, including cabling, switch selection, and network segmentation. Proper network planning ensures reliable communication and optimal performance.

• Capacity Planning: Perform detailed capacity planning to ensure that the HONEYWELL 8C-PCNT02 has adequate processing capacity and memory for your current application and planned future expansions. Consider factors including control loop count, I/O point count, sequence complexity, historical data retention requirements, and advanced control algorithms.

• Configuration and Programming: Ensure that engineering personnel are trained in Honeywell Experion engineering tools and C300 controller configuration. Proper configuration of the HONEYWELL 8C-PCNT02, including control strategy development, I/O mapping, alarm configuration, and communication setup, is essential for reliable system operation.

• Redundancy Testing: If using redundant configurations, perform comprehensive failover testing during commissioning to verify that the HONEYWELL 8C-PCNT02 redundant pair provides seamless, bumpless transfer in all failure scenarios. Document test results for validation and future reference.

• Power Supply Coordination: Ensure that the system power supplies provide adequate capacity for the HONEYWELL 8C-PCNT02 and all associated I/O modules. For redundant configurations, verify that power supply redundancy is coordinated with controller redundancy to achieve the required availability level.

• Environmental Considerations: Ensure that the installation location meets the specified temperature, humidity, and environmental requirements for the HONEYWELL 8C-PCNT02. Operating the controller outside specified parameters can affect reliability and service life.

• ESD and Handling Precautions: Handle the HONEYWELL 8C-PCNT02 with proper electrostatic discharge (ESD) protection during installation and maintenance. Use a grounded wrist strap and work on an ESD-safe surface to prevent damage to sensitive electronic components.

• Maintain Spare Inventory: For critical applications, consider maintaining a spare HONEYWELL 8C-PCNT02 in inventory to minimize downtime in the event of controller failure. For redundant configurations, consider the availability of replacement modules and the impact of a failure that affects both controllers.

• Firmware Management: Establish procedures for firmware updates to ensure that the HONEYWELL 8C-PCNT02 runs current, supported firmware versions. Test firmware updates in a non-production environment before deployment to critical systems. Document firmware versions and update history.

• Documentation Reference: Refer to the specific Honeywell Experion PKS and C300 technical documentation for detailed installation procedures, configuration instructions, network planning guides, and troubleshooting information related to the HONEYWELL 8C-PCNT02. Proper documentation ensures correct implementation and facilitates future maintenance activities.
