HONEYWELL 51403519-160 K4LCN-16

Description

Product Overview

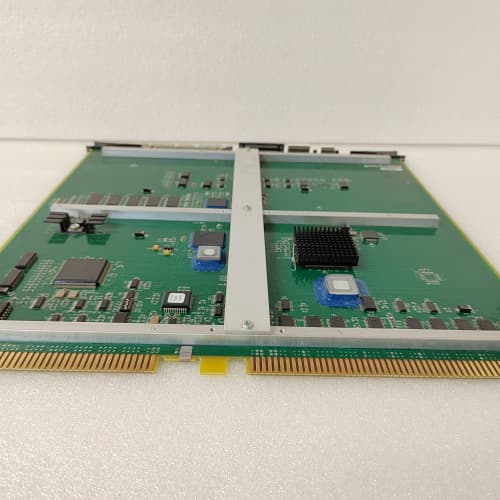

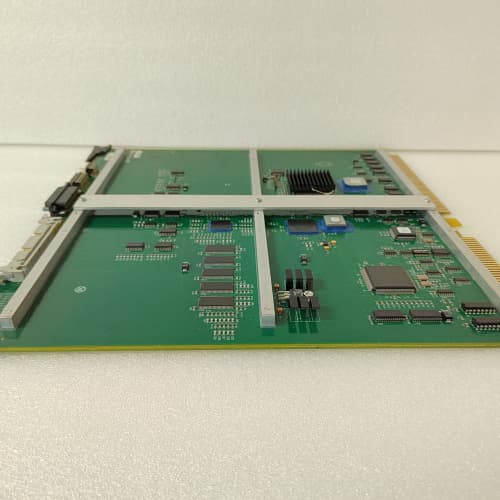

HONEYWELL 51403519-160 K4LCN-16 is a Logic Manager control module designed for the Honeywell TDC 3000 distributed control system, specifically for the LCN (Local Control Network) architecture. This module, also known as the K4LCN-16, serves as a high-performance logic solver for fast binary control applications, including emergency shutdown systems, burner management, and interlock logic. HONEYWELL 51403519-160 K4LCN-16 integrates seamlessly with the TDC 3000 Universal Station, History Module, and Application Module, providing deterministic execution of ladder logic and function block programs. The module remains widely deployed in oil refineries, petrochemical complexes, and LNG facilities commissioned between 1985 and 2005, where its exceptional reliability and deterministic performance have made it a trusted component for critical safety and control applications.

Technical Specifications

HONEYWELL 51403519-160 K4LCN-16 features the following technical specifications:

• Processor: 16-bit proprietary CMOS processor

• Program Memory: 64 KB battery-backed CMOS RAM

• Execution Speed: 1 ms per 1000 ladder logic instructions

• Discrete Inputs: Up to 512 (via remote I/O)

• Discrete Outputs: Up to 512 (via remote I/O)

• Timers/Counters: 256 software timers, 128 counters

• LCN Interface: Redundant, 5 Mbps, coaxial cable

• Redundancy: 1:1 hot standby with automatic failover

• Diagnostics: Power-up self-test, continuous memory validation, communication watchdog

• Battery Backup: Lithium battery, 10-year typical life

• Power Consumption: 5 V DC, 4.5 A; ±15 V DC, 0.5 A

• Mounting: Standard TDC 3000 LCN cabinet, occupies one slot

• Operating Temperature: 0°C to +60°C

• Humidity: 5% to 95% non-condensing

A critical feature of HONEYWELL 51403519-160 K4LCN-16 is its deterministic scan cycle. Unlike general-purpose PLCs that may experience scan time variations based on program complexity, the K4LCN-16 executes all logic within a fixed 20 ms window regardless of program size, ensuring predictable response times for safety-critical applications.

Advantages & Features

HONEYWELL 51403519-160 K4LCN-16 represents the gold standard for high-integrity logic control within the TDC 3000 ecosystem. Key advantages include:

• Deep TDC 3000 Integration: Native LCN connectivity provides operator display, historical archiving, and alarm management without external gateways

• Deterministic Execution: Fixed 20 ms scan cycle ensures consistent trip times regardless of program complexity

• Hot Standby Redundancy: Automatic switchover with less than one scan cycle interruption (<20 ms)

• Bumpless Transfer: Redundant pair maintains output states during failover without process bumps

• Extensive I/O Support: Compatible with all Honeywell FTA (Field Termination Assembly) and remote I/O processors

• Application Portability: Logic programs transferable between K4LCN-16 modules without recompilation

For refineries with substantial TDC 3000 installed base, HONEYWELL 51403519-160 K4LCN-16 provides a migration path that preserves existing I/O investments and operator training while upgrading logic processing capability from older LCN modules.

Application Examples

Typical applications for HONEYWELL 51403519-160 K4LCN-16 include:

• Fluid Catalytic Cracking Units: Regenerator and reactor interlock logic, catalyst circulation control

• Crude Distillation Units: Overpressure protection, pump start/stop sequencing, heater pass balancing

• LNG Plants: Compressor antisurge control, liquefaction train sequencing, emergency isolation

• Sulfur Recovery Units: Tail gas analyzer interlocking, incinerator temperature control

A major Middle Eastern refinery operates over 80 HONEYWELL 51403519-160 K4LCN-16 modules across six processing units, including a 110,000 BPD crude unit and a 45,000 BPD hydrocracker. Following a 2019 reliability assessment, the facility’s average module MTBF was calculated at 187,000 hours—equivalent to over 21 years of continuous operation.

Competitive Comparison

Primary functional equivalents to HONEYWELL 51403519-160 K4LCN-16 include Yokogawa Prosafe-R and Triconex Trident (for safety applications) and Siemens S7-400 (for general logic control). Comparative analysis:

HONEYWELL 51403519-160 K4LCN-16 maintains an unassailable advantage for TDC 3000 sites, as migration to competing platforms requires complete replacement of LCN infrastructure—typically a multi-million dollar, multi-year project. The K4LCN-16 remains the most cost-effective solution for extending the operational life of existing TDC 3000 systems.

Selection Recommendations & Precautions

1. Verify Module Revision: HONEYWELL 51403519-160 K4LCN-16 superseded the earlier K4LCN-04 and K4LCN-08 modules. The -160 designation indicates 16-bit processor architecture with expanded memory. Do not attempt to directly substitute older revisions without LCN firmware compatibility verification.

2. Battery Status: The internal lithium battery maintains program memory when module is powered down. Battery voltage must be verified upon receipt—units stored more than 2 years typically require battery replacement before commissioning.

3. LCN Address Configuration: Each HONEYWELL 51403519-160 K4LCN-16 requires a unique LCN node address set via rotary switches. Duplicate addresses will cause network communication failure for both modules.

4. Redundancy Cabling: Redundant pairs require the proprietary fiber-optic synchronization link. Standard copper cabling cannot achieve the <20 ms switchover performance.

5. Program Transfer: Application logic can only be loaded via LCN-connected Engineering Station running Honeywell Logic Manager configuration software. Serial download capability is not available.

6. Environmental Requirements: The K4LCN-16 requires forced-air cooling when ambient temperature exceeds 50°C. Verify cabinet airflow before installation in high-density configurations.

When procuring HONEYWELL 51403519-160 K4LCN-16 for safety-critical applications, sourcing strategy is paramount. Honeywell officially discontinued manufacturing of K4LCN series modules in 2015. Available units are limited to new-old-stock inventory, authorized refurbished modules with full factory testing, or professionally recertified surplus equipment. For SIL-rated applications, only new-old-stock or authorized refurbished units with complete traceability documentation should be considered. Counterfeit and improperly refurbished modules have been identified in the secondary market and present unacceptable risk for safety instrumented functions.
