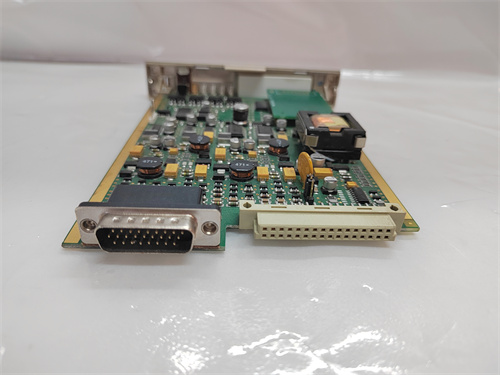

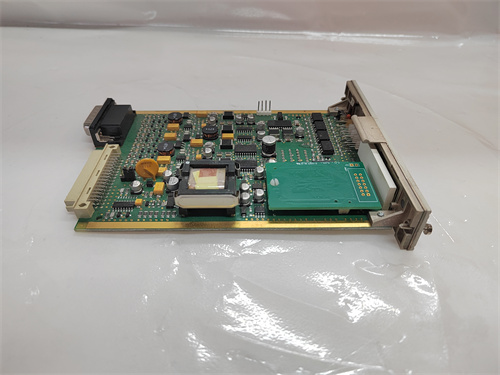

HONEYWELL 05704-A-0144

Description

1. Product Overview

2. Product Parameters

2.1 Core Input Specifications

• Input Channels: 16 isolated analog input channels (independently configurable per channel)
• Supported Signals:
  • Current: 4-20mA DC (loop-powered/sourcing), 0-20mA DC
  • Voltage: 0-5V DC, 0-10V DC
• Resolution: 16-bit (analog-to-digital conversion)
• Accuracy: ±0.05% of full scale (calibrated over 0-55°C)
• Isolation Rating: 2500V AC channel-to-channel, 3000V AC channel-to-ground
• Sampling Rate: 100 samples per second (per channel)
• Input Impedance: 250Ω (current), 1MΩ (voltage)

2.2 Electrical & System Parameters

• Power Supply: 24V DC (supplied by Series 5704 controller rack), power consumption ≤15W
• Backplane Interface: Series 5704 proprietary I/O bus (100Mbps data transfer)
• Diagnostic Features: Open-loop detection (current), short-circuit detection, overrange/underrange alerts, sensor fault indication, LED per-channel status indicators
• Configuration: Software-configurable via Series 5704 Configuration Studio (signal type, range, scaling)
• Compatibility: Honeywell Series 5704 controllers, third-party 4-20mA/0-10V transmitters (flow, pressure, level, temperature)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -20°C to +65°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (rack-mounted)
• Vibration Resistance: 5-2000Hz, 2g (IEC 60068-2-6, X/Y/Z axes)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Mounting: Series 5704 controller rack-mounted (standard 19-inch rack), hot-swappable (plug-in module)
• Dimensions: 175mm (W) × 125mm (H) × 35mm (D), Series 5704 rack-compatible form factor

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2, FCC Class A, RoHS, ATEX Zone 2 (Ex nA IIC T4)
• Compatibility: Honeywell Series 5704 process control systems, transmitters meeting IEC 61508 standards
• MTBF: ≥1,000,000 hours (per Telcordia SR-332 standards)

3. Advantages & Features

1. Multi-Signal Compatibility: HONEYWELL 05704-A-0144 supports both current and voltage inputs, eliminating the need for multiple specialized modules and reducing system complexity in mixed-signal environments.
2. High Precision & Speed: 16-bit resolution, ±0.05% accuracy, and 100sps sampling rate ensure real-time, reliable data acquisition for critical process control loops (e.g., reactor temperature regulation, steam pressure control).
3. Enhanced Isolation & Protection: 2500V AC channel-to-channel isolation and comprehensive fault detection safeguard HONEYWELL 05704-A-0144 and connected sensors from electrical interference and faults, minimizing downtime in harsh industrial settings.
4. Hot-Swappable Design: HONEYWELL 05704-A-0144 can be replaced in live Series 5704 systems without interrupting process control, maximizing system availability and reducing maintenance costs.
5. Seamless Series 5704 Integration: Native compatibility with Series 5704 controllers and Configuration Studio software enables plug-and-play setup, reducing commissioning time and integration risks.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: Refinery distillation column monitoring, pipeline pressure/flow measurement, offshore platform process control
• Chemical Manufacturing: Reactor temperature/pressure monitoring, batch process flow control, storage tank level detection
• Power Generation: Steam turbine vibration monitoring, boiler feedwater flow control, condenser pressure measurement
• Water/Wastewater Treatment: Filtration system pressure monitoring, chemical dosing flow control, reservoir level measurement

4.2 Typical Cases

1. Refinery Distillation Column Monitoring: A major European refinery deployed HONEYWELL 05704-A-0144 modules in its Series 5704 system to monitor 64 temperature and pressure transmitters (4-20mA/0-10V) across 4 distillation columns. The module’s high sampling rate (100sps) enabled real-time process adjustments, improving product yield by 4% and reducing energy consumption.
2. Chemical Plant Reactor Control: A global chemical manufacturer used HONEYWELL 05704-A-0144 to acquire pH (0-10V) and level (4-20mA) signals from 16 batch reactors. The module’s ±0.05% accuracy ensured precise reagent dosing, reducing raw material waste by 8% and improving product quality consistency.
3. Water Treatment Plant Optimization: A municipal water treatment facility integrated HONEYWELL 05704-A-0144 into its Series 5704 system to monitor 32 flow and pressure transmitters. The hot-swappable design allowed maintenance crews to replace a faulty module during peak operation, avoiding a 24-hour service disruption for 100,000 residents.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. System Compatibility: Choose HONEYWELL 05704-A-0144 for Honeywell Series 5704 process control systems requiring multi-signal analog input; generic modules may lack native compatibility and diagnostic features.
2. Accuracy & Speed Needs: Opt for HONEYWELL 05704-A-0144 if high-precision (±0.05%) and fast sampling (100sps) are critical for process control loops; lower-spec modules suffice for non-critical monitoring tasks.
3. Density Requirements: Select HONEYWELL 05704-A-0144 for high-channel-count applications to minimize rack space and wiring complexity; 8-channel modules are suitable for small-scale systems.

6.2 Precautions

1. Installation Guidelines:
   • Install HONEYWELL 05704-A-0144 in Series 5704 controller racks only; use shielded twisted-pair cables for current/voltage signals (maximum distance 1000m for 4-20mA, 500m for 0-10V) and ground the cable shield at the module end to minimize noise.
   • Ensure proper grounding (≤4Ω) for the module and rack to maximize isolation effectiveness and protect against surge damage.
2. Configuration Notes:
   • Configure signal type and range per channel via Series 5704 Configuration Studio before commissioning; match settings to connected transmitters to avoid measurement errors.
   • Enable fault detection alerts (open-loop, overrange) to trigger operator notifications or safety interlocks (per site safety procedures).
3. Troubleshooting:
   • For inaccurate readings: Check transmitter calibration, verify wiring (no short circuits/open loops), and re-calibrate the module via Configuration Studio.
   • For fault LED activation: Use per-channel status indicators to isolate faulty channels, then inspect sensors and wiring for issues (e.g., open loops for current inputs).
4. Maintenance:
   • Inspect module connectors annually for corrosion or damage; clean with compressed air to remove dust and debris (avoid contact with backplane pins).
   • Recalibrate HONEYWELL 05704-A-0144 every 2 years (or per site maintenance protocols) to maintain accuracy and compliance with industry standards.
   • Stock spare HONEYWELL 05704-A-0144 modules—lead times for Series 5704 components may exceed 8 weeks.
