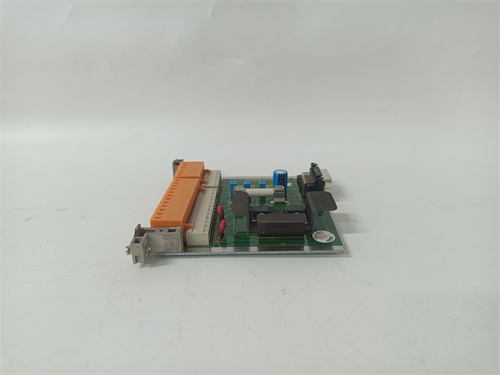

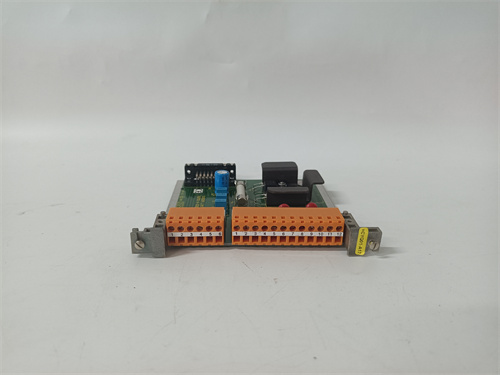

Honeywell 05701-A-0327

Description

1. Product Overview

2. Product Parameters

2.1 Core Output Specifications

• Output Channels: 8 isolated digital output channels (2 channels per isolation group)
• Output Type: Form A (NO) solid-state relays (SSR), 24V DC rated
• Output Rating: 2A per channel (resistive load), 1A per channel (inductive load)
• Switching Time: ≤1ms (on/off transition)
• Isolation Rating: 1500V AC channel-to-channel (group-to-group), 2500V AC channel-to-ground
• Protection: Overcurrent protection (3A per channel), short-circuit protection, reverse polarity protection

2.2 Electrical & System Parameters

• Power Supply: 24V DC (supplied by Series 5701 controller rack), power consumption ≤12W
• Backplane Interface: Series 5701 proprietary I/O bus
• Diagnostic Features: Output fault detection (short-circuit/overcurrent), power fault indication, LED status indicators (power, fault, channel activity)
• Configuration: DIP switch settings (output mode: normally open/normally closed)
• Compatibility: Honeywell Series 5701 controllers, third-party 24V DC actuators (relays, contactors, solenoid valves)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: 0°C to +60°C (industrial-grade range)
• Storage Temperature: -20°C to +70°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (rack-mounted)
• Vibration Resistance: 5-500Hz, 1g (IEC 60068-2-6)
• Shock Resistance: 15g (11ms half-sine wave, IEC 60068-2-27)
• Mounting: Series 5701 controller rack-mounted (standard 19-inch rack), plug-in module
• Dimensions: 160mm (W) × 100mm (H) × 30mm (D), Series 5701 rack-compatible form factor

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2, FCC Class A, RoHS
• Compatibility: Honeywell Series 5701 process control systems, 24V DC discrete actuators from major manufacturers
• MTBF: ≥700,000 hours (per Telcordia SR-332 standards for legacy I/O modules)

3. Advantages & Features

1. Legacy System Compatibility: HONEYWELL 05701-A-0327 is fully backward-compatible with Honeywell Series 5701 controllers, requiring no system upgrades or custom programming for seamless integration into existing process control infrastructure.
2. Fast & Reliable Switching: ≤1ms transition time ensures immediate actuation of critical devices (e.g., safety solenoid valves, emergency stop relays), supporting rapid process control and safety interventions in industrial environments.
3. Comprehensive Protection: Overcurrent, short-circuit, and reverse polarity protection safeguard HONEYWELL 05701-A-0327 and connected actuators from electrical faults, minimizing downtime and equipment damage in harsh operating conditions.
4. Isolated Channel Design: 1500V AC group-to-group isolation prevents cross-talk and interference between outputs, ensuring stable switching performance even in noisy electrical environments (e.g., near high-voltage motors).
5. Rugged Industrial Construction: HONEYWELL 05701-A-0327 is engineered to withstand temperature fluctuations, vibration, and humidity—ideal for continuous operation in refineries, chemical plants, and manufacturing facilities.

4. Application Fields & Cases

4.1 Application Fields

• Chemical Manufacturing: Reactor solenoid valve control, safety interlock relay actuation, batch process sequencing switches
• Water/Wastewater Treatment: Pump contactor control, valve actuator switching, chemical dosing system relay activation
• Food & Beverage Processing: Conveyor belt motor control, safety gate lock actuation, packaging machine solenoid switching
• Oil & Gas Midstream: Pipeline valve actuator control, storage tank pump switching, metering station relay activation

4.2 Typical Cases

1. Chemical Plant Reactor Control: A regional chemical plant deployed HONEYWELL 05701-A-0327 modules in its Series 5701 system to control 16 solenoid valves for reagent dosing in 4 batch reactors. The module’s fast switching time (≤1ms) ensured precise reagent delivery, improving product quality consistency by 12% and reducing waste.
2. Water Treatment Pump Control: A municipal water treatment facility used HONEYWELL 05701-A-0327 to actuate 8 pump contactors for tank filling/emptying. The overcurrent protection feature prevented contactor damage during a pump motor fault, avoiding unplanned downtime and $30,000 in repair costs.
3. Food Processing Safety Interlocks: A food packaging plant integrated HONEYWELL 05701-A-0327 into its Series 5701 system to control safety gate locks and conveyor belt relays. The rugged design withstood washdown environments and vibration, maintaining 99.9% uptime and complying with food safety regulations.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Legacy System Requirements: Choose HONEYWELL 05701-A-0327 for Honeywell Series 5701 process control systems requiring digital output switching; generic modules may lack full compatibility, diagnostic features, and protection mechanisms.
2. Response Time Needs: Opt for HONEYWELL 05701-A-0327 if fast actuation (≤1ms) is critical for safety interlocks or precision process control; slower modules suffice for non-critical device switching (e.g., indicator lights).
3. Load Capacity Requirements: Select HONEYWELL 05701-A-0327 for controlling medium-current devices (up to 2A resistive load); higher-current modules are needed for heavy-duty actuators (>2A).

6.2 Precautions

1. Installation Guidelines:
   • Install HONEYWELL 05701-A-0327 in Series 5701 controller racks only; use 18AWG or larger wiring for high-current outputs (≥1A) to prevent overheating, and avoid running output cables parallel to high-voltage power lines.
   • Ensure proper grounding (≤4Ω) for the module and rack to maximize isolation effectiveness and protect against electrical interference.
2. Configuration Notes:
   • Set output mode (normally open/normally closed) via DIP switches before powering on the module—incorrect settings may cause unintended device actuation or safety hazards.
   • Document DIP switch configurations for future maintenance, as legacy Series 5701 systems often lack digital configuration records.
3. Troubleshooting:
   • For output faults: Check load current (ensure it does not exceed rated capacity), verify wiring for short circuits, and use LED indicators to isolate faulty channels.
   • For communication errors: Inspect backplane connections and verify module compatibility with the Series 5701 controller firmware version.
4. Maintenance:
   • Inspect module connectors and DIP switches annually for corrosion or damage; clean with compressed air to remove dust and debris (avoid contact with electrical components).
   • Stock spare HONEYWELL 05701-A-0327 modules—legacy I/O components have limited production runs, and lead times may exceed 12 weeks.
   • Coordinate with Honeywell’s legacy system support team for replacement part sourcing and compatibility verification.
