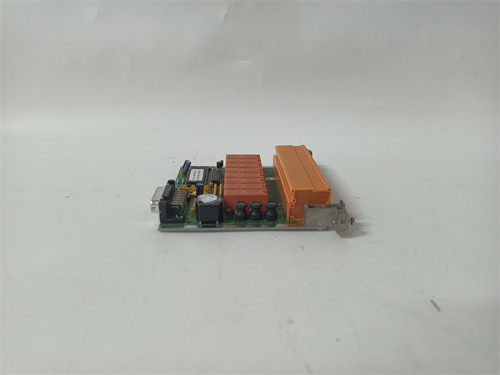

HONEYWELL 05701-A-0312

Description

1. Product Overview

2. Product Parameters

2.1 Core Input Specifications

• Input Channels: 16 isolated digital input channels (2 channels per isolation group)
• Supported Signals: Dry contact (NO/NC), 24V DC (sinking/sourcing)
• Input Voltage Range: 18-30V DC (for 24V DC signals)
• Response Time: ≤5ms (signal detection)
• Isolation Rating: 1500V AC channel-to-channel (group-to-group), 2500V AC channel-to-ground
• Input Resistance: 1kΩ (24V DC inputs), 100Ω (dry contact inputs)

2.2 Electrical & System Parameters

• Power Supply: 24V DC (supplied by Series 5701 controller rack), power consumption ≤10W
• Backplane Interface: Series 5701 proprietary I/O bus
• Diagnostic Features: Open-circuit detection (24V DC), short-circuit protection, power fault indication, LED status indicators (power, fault, channel activity)
• Configuration: DIP switch settings (input type selection: dry contact/24V DC)
• Compatibility: Honeywell Series 5701 controllers, third-party discrete sensors/switches (limit switches, pressure switches, level switches)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: 0°C to +60°C (industrial-grade range)
• Storage Temperature: -20°C to +70°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (rack-mounted)
• Vibration Resistance: 5-500Hz, 1g (IEC 60068-2-6)
• Shock Resistance: 15g (11ms half-sine wave, IEC 60068-2-27)
• Mounting: Series 5701 controller rack-mounted (standard 19-inch rack), plug-in module
• Dimensions: 160mm (W) × 100mm (H) × 30mm (D), Series 5701 rack-compatible form factor

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2, FCC Class A, RoHS
• Compatibility: Honeywell Series 5701 process control systems, 24V DC/discrete sensors from major manufacturers
• MTBF: ≥700,000 hours (per Telcordia SR-332 standards for legacy I/O modules)

3. Advantages & Features

1. High-Density Input Design: HONEYWELL 05701-A-0312 offers 16 digital input channels in a compact form factor, reducing rack space requirements by 50% compared to 8-channel modules and simplifying system architecture for legacy Series 5701 setups.
2. Dual Input Compatibility: Support for dry contact and 24V DC signals eliminates the need for multiple specialized modules, enabling flexible integration with mixed discrete sensor types in industrial environments.
3. Robust Isolation & Protection: 1500V AC group-to-group isolation and short-circuit protection safeguard HONEYWELL 05701-A-0312 from electrical interference and fault conditions, ensuring stable operation in noisy industrial settings.
4. Fast Response Time: ≤5ms signal detection enables real-time monitoring of critical discrete inputs (e.g., emergency stop buttons, safety interlocks), supporting rapid process control and safety interventions.
5. Legacy System Compatibility: HONEYWELL 05701-A-0312 is fully backward-compatible with Honeywell Series 5701 controllers, requiring no system upgrades or custom programming for seamless integration.

4. Application Fields & Cases

4.1 Application Fields

• Chemical Manufacturing: Safety interlock monitoring (valve position, pump status), emergency stop detection, pressure/temperature switch input
• Water/Wastewater Treatment: Level switch monitoring, pump run/stop status detection, valve open/close feedback
• Food & Beverage Processing: Conveyor belt limit switch input, packaging machine status detection, safety gate interlock monitoring
• Oil & Gas Midstream: Pipeline valve position feedback, storage tank level switch detection, pump interlock input

4.2 Typical Cases

1. Chemical Plant Safety Interlocks: A regional chemical plant deployed HONEYWELL 05701-A-0312 modules in its Series 5701 system to monitor 32 safety interlock signals (valve position, emergency stops) across 4 reactor units. The module’s fast response time (≤5ms) ensured immediate shutdown triggers during fault conditions, preventing a potential chemical spill.
2. Water Treatment Tank Control: A municipal water treatment facility used HONEYWELL 05701-A-0312 to detect level switch and pump status inputs for 8 storage tanks. The dual input compatibility (dry contact/24V DC) reduced module count by 30%, and open-circuit detection identified a faulty level switch before it caused overfilling.
3. Food Processing Line Monitoring: A food packaging plant integrated HONEYWELL 05701-A-0312 into its Series 5701 system to track limit switch and safety gate signals for 16 conveyor belts. The rugged design withstood washdown environments and vibration, maintaining 99.8% uptime and reducing unplanned maintenance by 25%.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Legacy System Requirements: Choose HONEYWELL 05701-A-0312 for Honeywell Series 5701 process control systems requiring high-density digital input; generic modules may lack full compatibility and fault detection features.
2. Input Type Needs: Opt for HONEYWELL 05701-A-0312 if integrating mixed dry contact/24V DC discrete signals; single-type modules are suitable for homogeneous input environments.
3. Response Time Criticality: Select HONEYWELL 05701-A-0312 for safety interlock applications requiring ≤5ms detection; slower modules suffice for non-critical status monitoring (e.g., conveyor belt position).

6.2 Precautions

1. Installation Guidelines:
   • Install HONEYWELL 05701-A-0312 in Series 5701 controller racks only; use shielded cables for 24V DC inputs (maximum distance 500m) and twisted-pair wiring for dry contact inputs to minimize noise.
   • Ensure proper grounding (≤4Ω) for the module and rack to maximize isolation effectiveness and protect against surge damage.
2. Configuration Notes:
   • Set input type (dry contact/24V DC) via DIP switches before powering on the module—incorrect settings may cause false inputs or module damage.
   • Document DIP switch configurations for future maintenance, as legacy Series 5701 systems often lack digital configuration records.
3. Troubleshooting:
   • For false input signals: Check wiring for short circuits (24V DC inputs) or loose connections (dry contact inputs), and verify DIP switch settings match connected sensors.
   • For fault LED activation: Use channel activity indicators to isolate faulty groups, then inspect sensors and wiring for open circuits or overvoltage conditions.
4. Maintenance:
   • Inspect module connectors and DIP switches annually for corrosion or damage; clean with compressed air to remove dust and debris (avoid contact with electrical components).
   • Stock spare HONEYWELL 05701-A-0312 modules—legacy I/O components have limited production runs, and lead times may exceed 12 weeks.
   • Coordinate with Honeywell’s legacy system support team for replacement part sourcing and compatibility verification.
