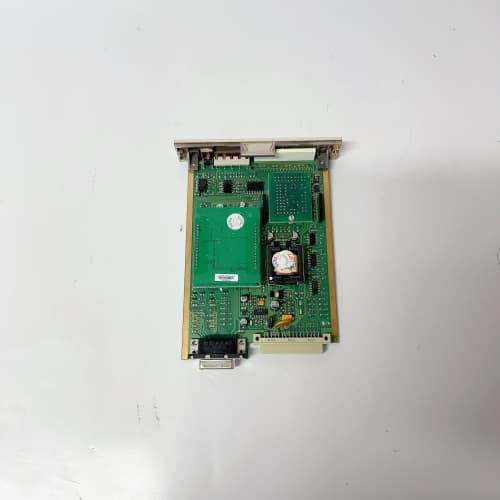

HONEYWELL 05701-A-0302

Description

Product Description

Product Parameters

• Brand/Model: HONEYWELL 05701-A-0302
• Core Input Parameters
  • Number of Channels: 8 isolated single-ended analog input channels
  • Input Signal: 4-20mA DC (2-wire/4-wire transmitters supported)
  • Resolution: 16-bit (0.0015% of full scale)
  • Accuracy: ±0.02% of full scale (20°C), ±0.05% of full scale (-20°C to +60°C)
  • Input Range: 0-24mA DC (configurable for 4-20mA span)
  • Isolation: Channel-to-channel isolation (1500V AC), channel-to-ground isolation (2500V AC)
• System & Diagnostic Parameters
  • Compatible Systems: Honeywell Experion PKS, ControlEdge PLC, Series 9000 RTU, third-party PLC/DCS (via Modbus)
  • Diagnostic Functions: Open/short circuit detection, overrange/underrange alerts, sensor power loss monitoring, self-test
  • Communication Interface: Modbus RTU/TC, 4-20mA backplane communication (for Honeywell systems)
  • Configuration: DIP switches (range selection) + software configuration (Honeywell Engineering Tools)
• Environmental & Physical Parameters
  • Operating Temperature: -40°C ~ +70°C
  • Storage Temperature: -40°C ~ +85°C
  • Vibration Resistance: 5g (10-2000Hz, IEC 60068-2-6 standard)
  • Shock Resistance: 30g (11ms half-sine wave)
  • Power Supply: 24V DC (18-32V) ±10%, power consumption ≤ 10W
  • Protection Grade: IP20 (cabinet installation)
  • Installation Method: DIN 35mm rail mounting (panel-mount optional)
  • Dimensions: 120mm × 70mm × 30mm (compact DIN-rail form factor)

Advantages & Features

1. High Accuracy & Resolution: With 16-bit resolution and ±0.02% full-scale accuracy, HONEYWELL 05701-A-0302 delivers precise 4-20mA signal measurement—critical for applications requiring tight process control (e.g., chemical reactor pressure monitoring).
2. Channel Isolation & Surge Protection: Full channel-to-channel and channel-to-ground isolation (1500V AC/2500V AC) prevents cross-talk and fault propagation, while built-in surge protection (up to 2kV) safeguards against electrical transients in industrial environments.
3. Wide Compatibility: HONEYWELL 05701-A-0302 works with Honeywell’s control systems and third-party PLC/DCS (via Modbus), making it a flexible choice for retrofits and new installations alike.
4. Hot-Swap & Easy Installation: The module supports hot-swappable replacement (no system shutdown required) and DIN-rail mounting, reducing maintenance downtime and simplifying integration into existing control cabinets.

Application Fields & Cases

1. Oil & Gas Wellhead Monitoring: A major oil and gas operator deployed HONEYWELL 05701-A-0302 modules in remote RTU cabinets to measure wellhead pressure and flow (4-20mA transmitters) in offshore platforms. The module’s wide temperature range (-40°C to +70°C) ensured reliable operation in harsh marine environments.
2. Chemical Plant Batch Process Control: A petrochemical plant integrated HONEYWELL 05701-A-0302 into its Experion PKS system to monitor reactor level and feed rate (4-20mA signals) during batch production. The module’s high accuracy enabled precise control of raw material dosing, reducing product waste.
3. Water/Wastewater Treatment Plant: A municipal wastewater treatment plant used HONEYWELL 05701-A-0302 to measure dissolved oxygen (DO) and pH transmitter signals (4-20mA) in aeration tanks. The module’s diagnostic capabilities detected a faulty DO transmitter, alerting operators to replace it before process disruption.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: HONEYWELL 05701-A-0302 is ideal for users requiring high-accuracy 4-20mA input with channel isolation (e.g., remote industrial sites, harsh environments). For Siemens TIA users, SM 331 AI Module is preferred; Allen-Bradley 1734-IE4C suits Rockwell systems (note: 4 channels only).
2. Precautions:
   • Configure input range (4-20mA) via DIP switches and software to match connected transmitters—incorrect range settings will cause measurement errors.
   • Use shielded twisted-pair cables for 4-20mA wiring to minimize EMI interference, especially in areas with high electrical noise (e.g., near motors or VFDs).
   • Ensure proper grounding of the module and transmitters to prevent ground loops, which can corrupt input signals and trigger false diagnostics.
   • Perform annual calibration (per Honeywell recommendations) to maintain accuracy, especially in applications with strict process control requirements.
   • Verify the module’s IP20 rating—install only in enclosed control cabinets to protect against dust and moisture.
